Credential Engine Schemas Handbook

About This Handbook

This document is intended to introduce newcomers to the basics of Credential Transparency Description Language (CTDL) and to provide those familiar with the description language with a means for quick reference and example solutions in describing credentials and other key entities in the credentialing ecosystem. It is not intended to be a complete guide for using all of the properties in the dictionary of the description language. The CTDL is designed to enable:

1. Creation of simple descriptions and to serve as a basis for website markup; and
2. Rich descriptions to support fairly refined comparisons among credentials.

Editors:

Jeanne Kitchens, Chief Technology Services Officer, Credential Engine

Stuart A. Sutton, Emeritus Faculty, Information School, University of Washington

Phil Barker, Consultant, Cetis LLP

Status:

Published

Important Background Information

The items in this section cover critical ideas, patterns, and contextual information that you will need to familiarize yourself with in order to get the most out of the CTDL family of specifications.

Frequently Used Terms

This handbook uses many technical terms that refer to notions like RDF, JSON-LD, Schemas, Graphs, Nodes, and so on, as well as references to various external specifications and standards. Some of these terms are described below. For more information, see the References section and the W3C Linked Data Glossary.

Identifiers

The CTDL family of specifications is intended to describe "things" such as a Credential, Organization, Assessment, Learning Opportunity, Competency, and so on. One of the most important aspects of describing "things" is to identify them. Identifiers in the CTDL family of specifications take on many forms, some of which can be used to reference the identified "thing" from anywhere else in the world via the Internet. The most common types of identifiers are:

• URI: A URI is a string of characters that provides a name that is unique within a scheme and identifies either a resource or a term used to describe a resource (such as a property, class, or concept). In our context, URIs leverage namespaces and strict formatting rules that are described below.
• URL: A URL is a specific subset of URIs (almost always beginning with either http:// or https://) which should lead to some kind of data, such as a webpage or JSON document. "URI" and "URL" are sometimes used interchangeably. Unless otherwise specified, any reference in this guide to a "URI" means a URL, often a Resource URI.
• CTID: A Credential Transparency Identifier (CTID) is a string of characters made up of a UUIDv4 prefixed with ce-, for example: ce-2c2b00f7-bb83-4047-956b-cfc1135b8245.
• Resource URI: In the Credential Registry context, a Resource URI is a URL that features a CTID appended to https://credentialengineregistry.org/resources/, for example: https://credentialengineregistry.org/resources/ce-2c2b00f7-bb83-4047-956b-cfc1135b8245. Such a Resource URI can be used to retrieve the data for a resource directly from the Registry. Many of the examples in this guide use res: as a shorthand for https://credentialengineregistry.org/resources/.
• Graph URI: In the Credential Registry context, a Graph URI is a URL that features a CTID appended to https://credentialengineregistry.org/graph/, for example: https://credentialengineregistry.org/graph/ce-2c2b00f7-bb83-4047-956b-cfc1135b8245. Such a Graph URI can be used to retrieve the data for a resource, as well as any blank nodes tied to that resource, directly from the Registry; this data is the graph.
• Blank Node Identifier: A blank node, or "BNode", is a special type of resource representation that is only identified, referenced, or retrievable in the context of the graph in which it is found. Blank node identifiers have a special syntax that begins with _: followed by some string of characters that are unique within that context, such as _:resource1 or _:abc123, or most often, a UUID (e.g., _:734ca853-f178-4ffc-a102-88cb8eed6942).

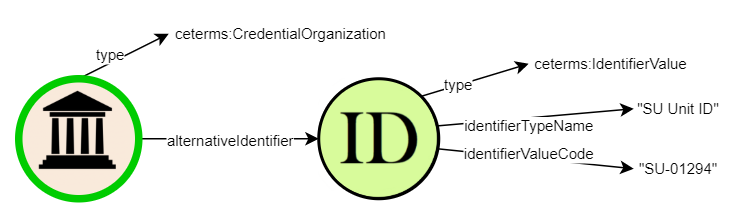

Many other identifiers, such as DUNS, IPEDS ID, CIP Codes, etc., have specific properties assigned to them. For those that do not, CTDL provides the Identifier Value class to enable providing the textual identifier and its origin.

RDF and Linked Data

The CTDL family of specifications is built on the principles of the Resource Description Framework (RDF) approach to describing data.

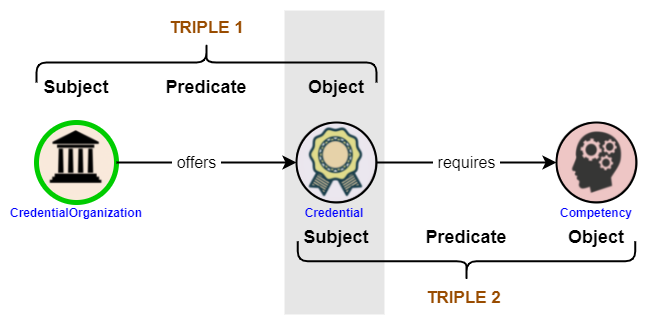

The "triple" is the basic grammatical construct in making RDF data assertions about "things" and consists of three simple components: a subject, a predicate and an object. Some find it useful to think of the subject as the thing being described and the predicate and object as an "attribute-value" pair. A set of RDF triples that form a description of one or more things is known in RDF as a graph, which can be thought of as a data record or collection of data records.

The following table contains a simple set of such three-part assertions about a dental assisting certificate. The entities (things) in the set are a:

1. A Credentialing Organization
2. A Credential (Certificate)
3. A required Learning Opportunity Profile
4. A required Competency
5. A Quality Assurance Organization

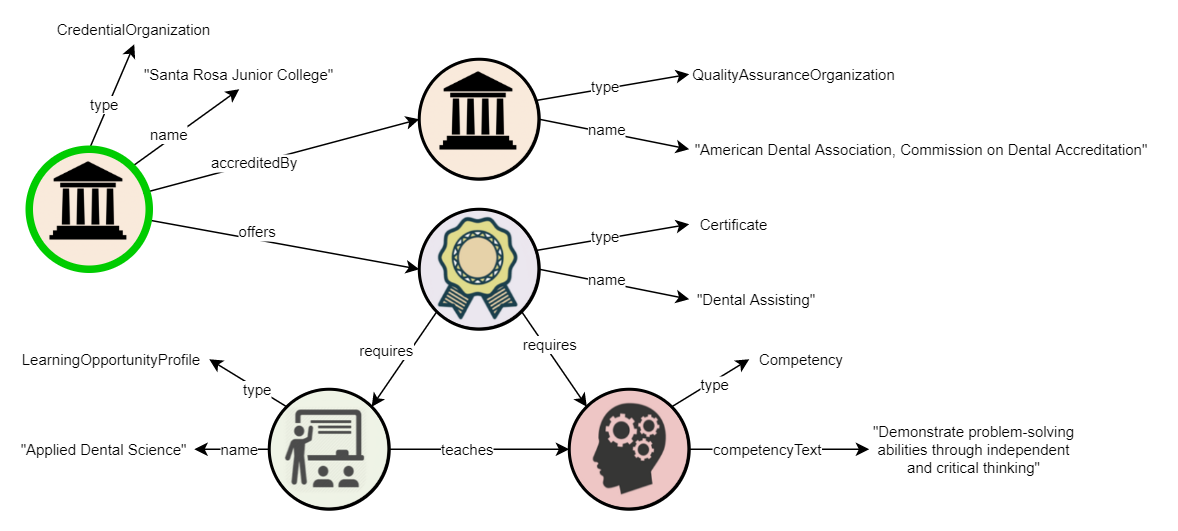

This set of terse statements in the 3-part grammatical form of triples is expressed in the abstract syntax of the directed graph below. Where relevant, the icons for the JSON-LD and Turtle concrete syntaxes appear below the figure.

In the figure above, each arc or arrow represents the predicate in a triple and points to the object of that triple. The arc or arrow is outbound from the triple's subject. A triple is the smallest possible graph in RDF linked data. More complex graphs are formed when an entity that plays the object role in one triple plays the subject role in another triple. The graph below illustrates this notion with the Credential entity playing the object role in Triple 1 and the subject role in Triple 2. Through this simple means, triples - known as statements in RDF - can be woven together into graphs that range from the simple to the very complex. All data based in CTDL are graphs of this sort.

Namespaces and Borrowed Terms

URIs provide unambiguous identification through the use of names that are unique within their own naming schemes, or namespaces. Each namespace will have its own identifier, to which the name of a resource can be appended to create a unique identifier that is a combination of namespace+name. In the case of URLs, the namespace identifier will specify the protocol that may be used to retrieve a representation of the resource being identified, thus URLs that use the HTTP or HTTPS protocols begin with http: and https:, respectively. In order to assist readability it is common practice to provide an abbreviated prefix for the namespace part of the URI. These prefixes must be declared in the data where they are used, and so may vary from instance to instance, however it is conventional to use familiar prefixes suggested by the specifications that define the namespaces.

So, W3C Recommendation RDF Schema, which specifies a vocabulary for describing terms used in RDF, defines the namespace that is identified with the URI http://www.w3.org/2000/01/rdf-schema#, and often abbreviated as rdfs:. The term within that namespace called label, is identified with the URI http://www.w3.org/2000/01/rdf-schema#label or the abbreviation rdfs:label.

The CTDL family of specifications defines the following namespaces for properties and classes, with suggested abbreviated prefixes:

Other namespaces are used for concept schemes that form part of CTDL; see below.

RDFS and terms from many other specifications are used in defining CTDL; these are listed in the references section of the CTDL Schema.

Where possible, CTDL adopts terms from other well known and widely implemented RDF vocabularies. This enhances interoperability because it means that some terms used in CTDL descriptions can be immediately understood by the many applications that understand those vocabularies. We do however have to be careful not to damage the interoperability from which we wish to benefit. Thus we are cautious when we need to adapt an existing term from another vocabulary to meet our own purposes, while still acknowledging the source of the term we have borrowed. As a result you will see in the term definitions for CTDL:

• Some terms and concepts that have been used as-is, and are identified with URIs from their original vocabulary
• Some terms and concepts in the CTDL namespaces that are defined as being equivalent or exact matches for terms and concepts in other namespaces
• Some terms and concepts in the CTDL namespaces that are defined as being broader or narrower than terms and concepts in other namespaces
• Some terms and concepts where the definition acknowledges a source in some other vocabulary or that the term or concept is based on one in another namespace

Further information on the reasons behind these choices can be found in the Namespace Policy.

Even beyond what is explicitly included in vocabulary, CTDL allows the use of terms from other RDF specifications when describing resources. In some cases CTDL has been designed in the expectation that this will happen. So rather than having terms in CTDL for everything, the recommendation is that terms from some other specification should be used. For example, in the Education to Work context, Occupations and Jobs may be classified according to category; if they are, it is recommended that the W3C Simple Knowledge Organization System (SKOS) vocabulary is used to describe these categories. An introduction to SKOS is provided by the SKOS Primer.

For more information, see the Borrowed Terms section of the Namespace Policy.

Concept Schemes for Controlled Vocabularies

Where the value for a property is to be drawn from an enumeration of predefined terms (i.e. a controlled vocabulary) these terms are defined using the W3C Simple Knowledge Organization System (SKOS) vocabulary. SKOS allows Concepts to be identified with terms (such as words or alphanumeric codes), defined, labeled, related to each other and collected in schemes (i.e. Concept Schemes). CTDL defines many such enumerations or schemes, each in its own namespace. The URIs for CTDL concepts all begin https://purl.org/ctdl/vocabs/, which is followed by a name for the relevant concept scheme. The name of the term appended to the concept scheme URI gives a unique URI for the term that can be resolved to obtain all the encoded information about the term.

Note: The URIs for the Concept Schemes all start with https://purl.org/ctdl/terms/ followed by the name of the scheme.

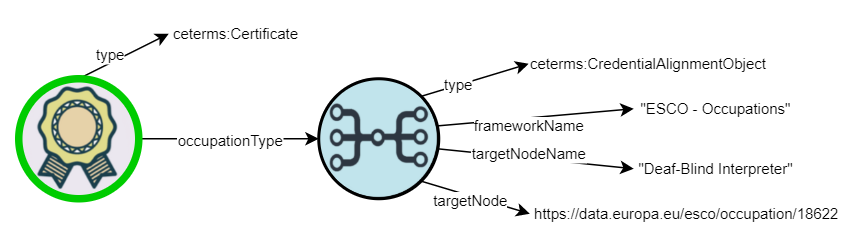

For historic reasons, a common pattern in CTDL is for properties that take a value from controlled vocabulary do so with that value provided as a CredentialAlignmentObject. This allows for a label, a definition and a source for the term to be provided even where the concept term is not defined using SKOS; however for a few properties the SKOS vocabulary is used to do the same.

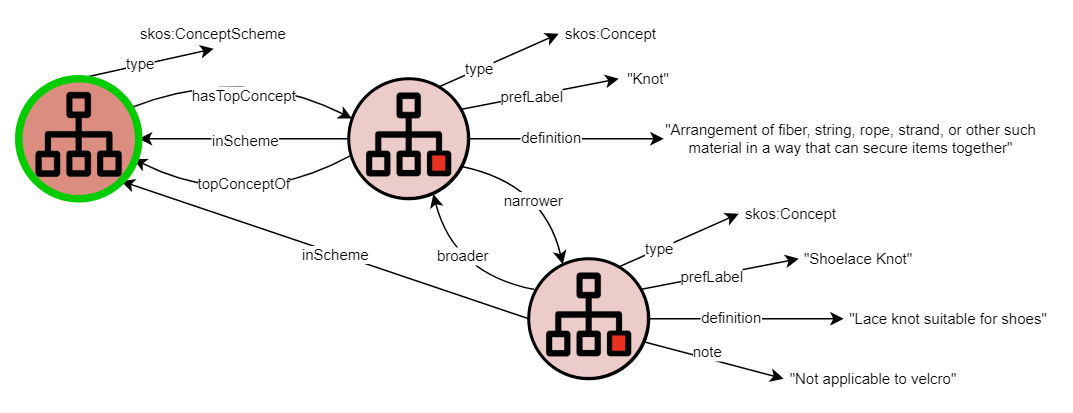

Concept Scheme using SKOS

The Class Hierarchy

There are many classes in CTDL, each one identifies a type of resource that can be described. The class of a resource determines the properties that will be available to describe it.

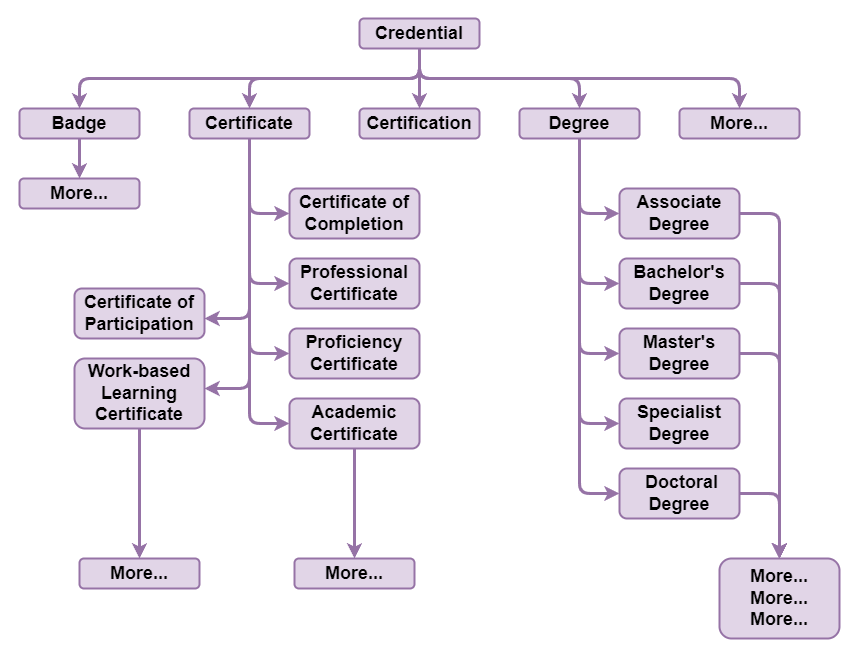

The image above shows a handful of classes from the credential hierarchy. The hierarchy is taxonomic, as you progress down the hierarchy the classes represent more specific subtypes of the same class as the parent. Anything described as an Associate Degree or a Bachelor's Degree is also a Degree and a Credential.

We do not have "Other not elsewhere defined" classes. If there is no specific subtype for the thing being described, any broader type can be used. So there is no "Other Degree" class; you should use "Degree" if the degree you are describing doesn't fit into any of the subclasses we have.

Where relevant the sections of this handbook document the subtypes for the class they deal with, and the full class hierarchy is documented in a separate page.

Primary and Secondary Classes

It is common in both Registry and non-Registry contexts to group the various CTDL classes into two basic categories:

• "Primary" or "Top-Level" classes
• "Secondary", "Support", or "Utility" classes

These designations are informal and occasionally inconsistent or context-dependent, but generally, "Primary" classes refer to classes with a CTID (and, by extension, a Registry URI) while "Secondary" classes are, in essence, everything else. The "Primary" classes tend to serve as entry points into a graph of data and are often the focus of the data itself, whereas the "Secondary" classes act to support or enhance the description of the data in the "Primary" classes. Additionally, "Secondary" classes often appear in more than one context, and the nature of that context usually depends on whatever property references that class.

For example, the "Primary" class of Certificate might have a set of requirements and a set of recommendations that are both described using the "Secondary" ConditionProfile class, but each instance of ConditionProfile is contextualized by the property that points to it (requires and recommends, respectively). This allows the Certificate to, for instance, require one set of competencies and recommend a second set using the same data structure.

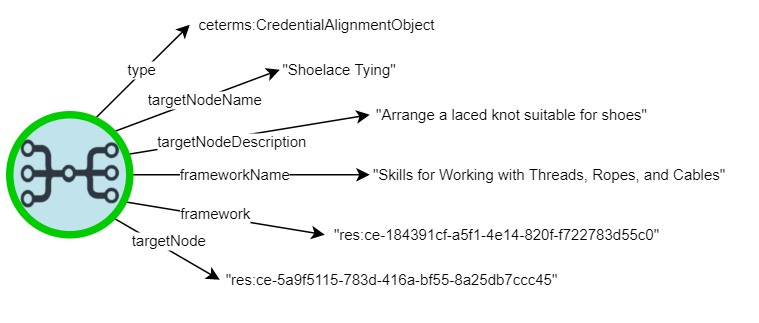

Another common example is the CredentialAlignmentObject class, which serves the function of "referencing and/or identifying something else" in a wide variety of contexts (controlled vocabularies, competencies, external classifications, and so on).

Some classes occupy both designations depending on how they are used: For instance, a Competency has a CTID and a Registry URI just like a "Primary" class, but is often used as a "Secondary" class for the also "Primary" CompetencyFramework class. In the Registry, Competency Frameworks and their member Competencies are published in the same JSON-LD Graph, but each can be independently retrieved (and retrieving the Graph for the Competency Framework will return its Competencies as well). The same mixed designation and Registry behaviors follow for other "framework-like" collections of closely-related classes, such as Concept Schemes and their member Concepts, as well as Pathways and their member PathwayComponents.

Further blurring the line is the Registry's use of RDF Blank Nodes, which often represent would-be instances of "Primary" classes but have no assigned CTID or Registry URI. An example of such usage is described here. This highlights the informal nature of these designations. Nevertheless, they are useful conversational aides and worth being aware of.

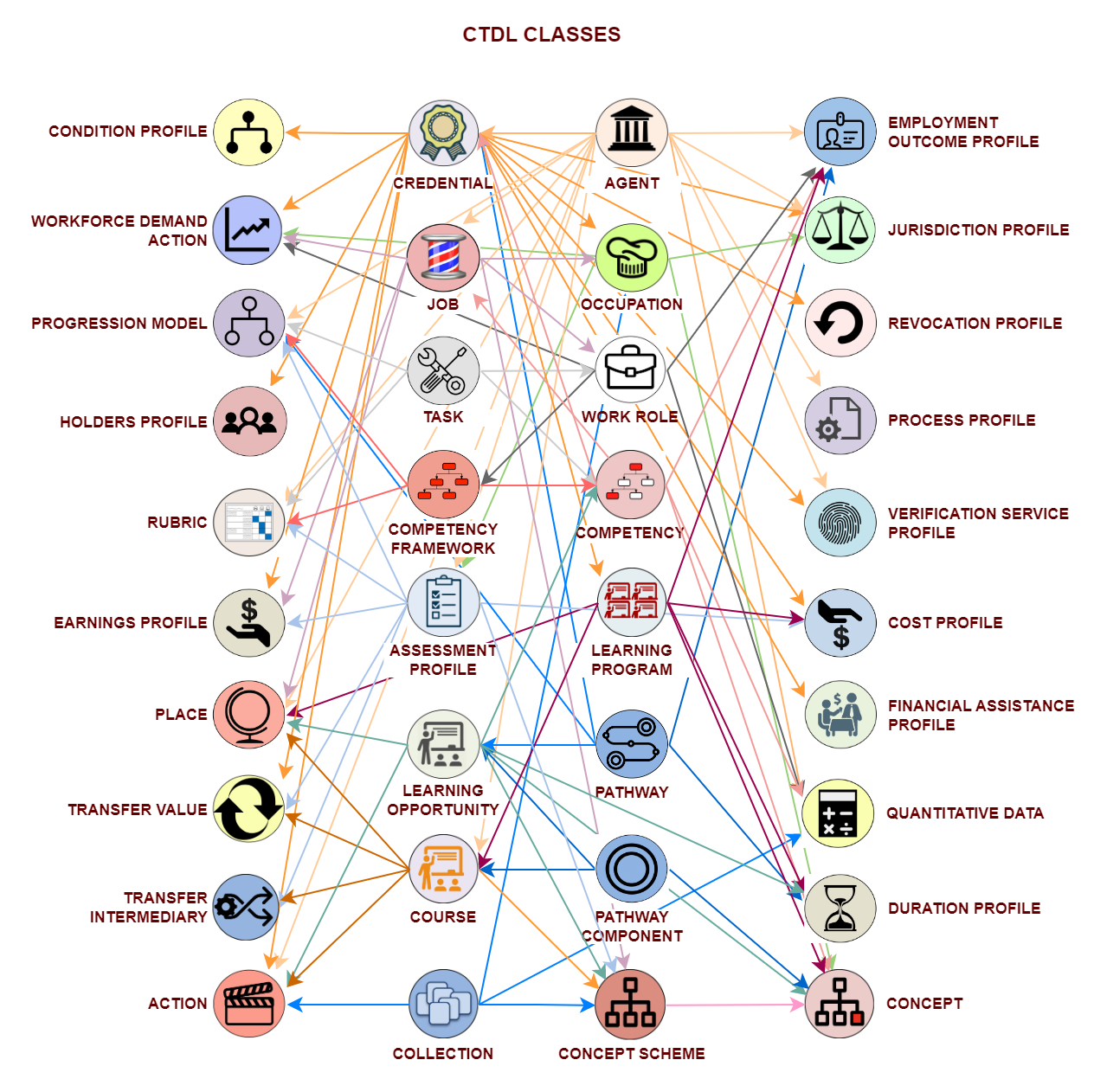

The following diagram depicts common designations of a selection of "Primary" and "Secondary" classes, along with a partial list of connections between them to give a sense of how highly interconnected the CTDL schema is. Note that for readability, this graph also omits connections between "Primary" classes (such as an Organization owning a Credential), as well as connections between "Secondary" classes (such as a ConditionProfile using a CredentialAlignmentObject to indicate its audienceLevelType).

JSON-LD

RDF can be expressed in a number of formats, including triples, Turtle, and XML, but the most common format used for CTDL data is JSON-LD. JSON-LD is a specification that builds upon normal JSON to enable a standardized way to express RDF data.

In some cases, the JSON-LD specification offers multiple options for expressing data that are equally valid. This handbook (along with the other technical data on this site) and the data in the Credential Registry usually follows the following conventions:

• Context Files: Records typically link to an external @context file, most often either http://credreg.net/ctdl/schema/context/json or http://credreg.net/ctdlasn/schema/context/json. This reference is found at the outermost object in the data. See "Referencing a JSON-LD context".
• Graphs: Examples on this page make use of the @graph feature of JSON-LD, which enables putting multiple related objects into the same array. Data in the Credential Registry is available using this feature if you use "graph" instead of "resources" in the URI for that data. See "Using @graph to explicitly express the default graph".
• Namespace Prefixes: Examples on this page and data in the Credential Registry use namespaced properties (via shorthand URIs that can be expanded via the @context), even where only one namespace is used. This is done to provide absolute clarity as to the meaning of a given property, consistency of data when publishing or consuming, and to encourage good habits in terms of format, capitalization, and so on. For example: { "ceterms:ctid": "ce-c6bffa5f-be74-4f98-963f-1cc536328c73" } instead of { "ctid": "ce-c6bffa5f-be74-4f98-963f-1cc536328c73" }. See "Expansion within a Context".
• Language Maps: Examples on this page and data in the Credential Registry uses the compact form of language maps where the value of language-dependent properties such as "name" or "description" is an object with one or more key-value pairs consisting of a BCP 47 language code key and a value that is either a string or an array of strings. For example: { "ceterms:name": { "en": "Credential Name" }, "ceterms:keyword": { "en": [ "keyword one", "keyword two" ] } }. See "Indexing language-tagged strings in JSON-LD".

Data in the Wild vs Data in the Credential Registry

Credential Engine maintains a centralized repository of information that uses the CTDL family of specifications. This repository, and its related services, are called the Credential Registry.

Credential Engine puts a great deal of focus on using CTDL in and with the Credential Registry. However, the CTDL family of specifications is explicitly designed to function as an openly licensed, standalone set of schemas for use by anyone in any context in which it is deemed useful. Credential Engine encourages such use for the following reasons:

• It increases interoperability across the credentialing ecosystem
• It becomes easier to publish to and consume from any CTDL-conformant system (including Credential Engine's Credential Registry) when an organization's own systems are already using CTDL
• Communication and data exchange between organizations becomes easier when those organizations are already using the same terms to describe their data
• CTDL is designed to be compatible with major search engine crawlers, meaning that organizations that use CTDL embedded in their website data stand to benefit as search engines begin to recognize CTDL terms

In general, this handbook covers the CTDL family of specifications as a standalone set of schemas. Where information in this handbook is specific to the Credential Registry, it will be noted.

Application Profiles

Any implementation of CTDL is likely to need some additional constraints that are specific to that application. Collectively, these constraints make up an "Application Profile" of CTDL. Since these constraints are "local" to a specific application, they are deliberately not part of the CTDL itself. Examples of such constraints include:

• Certain terms being required
• Certain terms not being used at all
• Determining which properties allow multiple values
• Limits on the maximum or minimum number of values for a property, such as the maximum number of keywords or the minimum length of a description
• Permitting only certain subsets of a property's range as valid values for that property
• Extensions to the schema(s) that are specific to that application, such as properties and classes defined in its own or some 3rd party's namespace
• Checks for valid values, such as working links or correctly-formatted email addresses
• Determining when to embed data directly (such as a nested object in JSON) vs. when to reference it by a URI or blank node ID

As noted above, the Credential Registry uses the CTDL family of specifications. However, the Credential Registry implementation of CTDL has some additional constraints that are not part of these specifications. These constraints make up the Registry's "Application Profile" of CTDL. For a more detailed listing of the constraints in place for the Registry, consult the Policy Page.

For more information about constructing your own Application Profile, see the DCAP Process.

Credential Transparency Description Language (CTDL) Schema

The Credential Transparency Description Language (CTDL) is a vocabulary of terms that are useful in making assertions about a Credential and its relationships to other entities. The word "vocabulary" is used here to refer specifically to a set of terms, a set in which the members are properties, classes, concept schemes, and/or data types.

In a sense, the CTDL is like a dictionary of nouns (classes) and verbs (properties) that allow us to make simple statements, which, in aggregate, enable rich description of credential-related resources including credentialing organizations and specific subclasses of credential such as degrees, certificates, certifications, and digital badges. Credentials are related (linked) to other entities in the credentialing ecosystem such as Assessments, Learning Opportunities, and a myriad of conceptual frameworks such as Competencies, assessment rubrics, and conceptual entities including formal classifications of occupations and instructional programs. The CTDL provides the terms to assert relationships among all of these entities.

Beyond defining the meaning and relationships among the terms—properties and classes—in this 'dictionary', the CTDL does not prescribe constraints on how those terms are used to create descriptions of resources. The CTDL does not define "records" and their accompanying constraints such as optionality and cardinality. Instead, CTDL leaves the definition and publication of such constraints to profiles developed by communities of practice and organizations. This allows the CTDL to be tailored to specific needs while promoting maximum data interoperability among these profiles.

One such community profile is the CTDL-CR defining constraints on the language for resource descriptions intended for publication in the Credential Engine Registry (CER).

The scope of the CTDL is description of credentials offered and does not include description of credentials awarded. While the language will prove useful to others for generation of verifiable claims of a credential holder, full description of such claims is outside the scope of the CTDL.

The CTDL is modeled as a directed graph using the W3C's Resource Description Framework [RDF] for describing data on the Web.

The Resource Description Framework (RDF) is an entity-centric framework for expressing information about resources. Resources can be anything, including documents, people, physical objects, and abstract concepts.

RDF is intended for situations in which information on the Web needs to be processed by applications, rather than being only displayed to people. RDF provides a common framework for expressing this information so it can be exchanged between applications without loss of meaning. Since it is a common framework, application designers can leverage the availability of common RDF parsers and processing tools. The ability to exchange information between different applications means that the information may be made available to applications other than those for which it was originally created. [RDF PRIMER]

RDF extends the linking structure of the Web to use URIs to name the relationship between things as well as the two ends of the link (this is usually referred to as a "triple"). Using this simple model, RDF allows structured and semi-structured data to be mixed, exposed, and shared across different applications.

This linking structure forms a directed, labeled graph, where the edges represent the named link between two resources, represented by the graph nodes. This graph view is the easiest possible mental model for RDF and is often used in easy-to-understand visual explanations. This Guide uses this visual form of explanation as an abstract syntax for its figures. Where relevant, this abstract syntax of the Guide figures is accompanied by concrete syntaxes in JSONLD and RDF Turtle.

Many of the properties in CTDL have multiple domains and ranges. To avoid unintended semantic inferencing, CTDL defines properties using schema.org's domainIncludes and rangeIncludes instead of RDF Schema's domain and range.

Organization

In CTDL, the notion of organizations fall under the umbrella of the Agent superclass, which is broadly defined as "The direct performer or driver of the action (animate or inanimate)." The Agent superclass is subclassed into CredentialPerson and Organization. The CredentialPerson class is intended to serve as a bridge between CTDL and other schemas that more directly deal with individuals, and is beyond the scope of this handbook. The Organization class covers any kind of organization and is equivalent to schema:Organization.

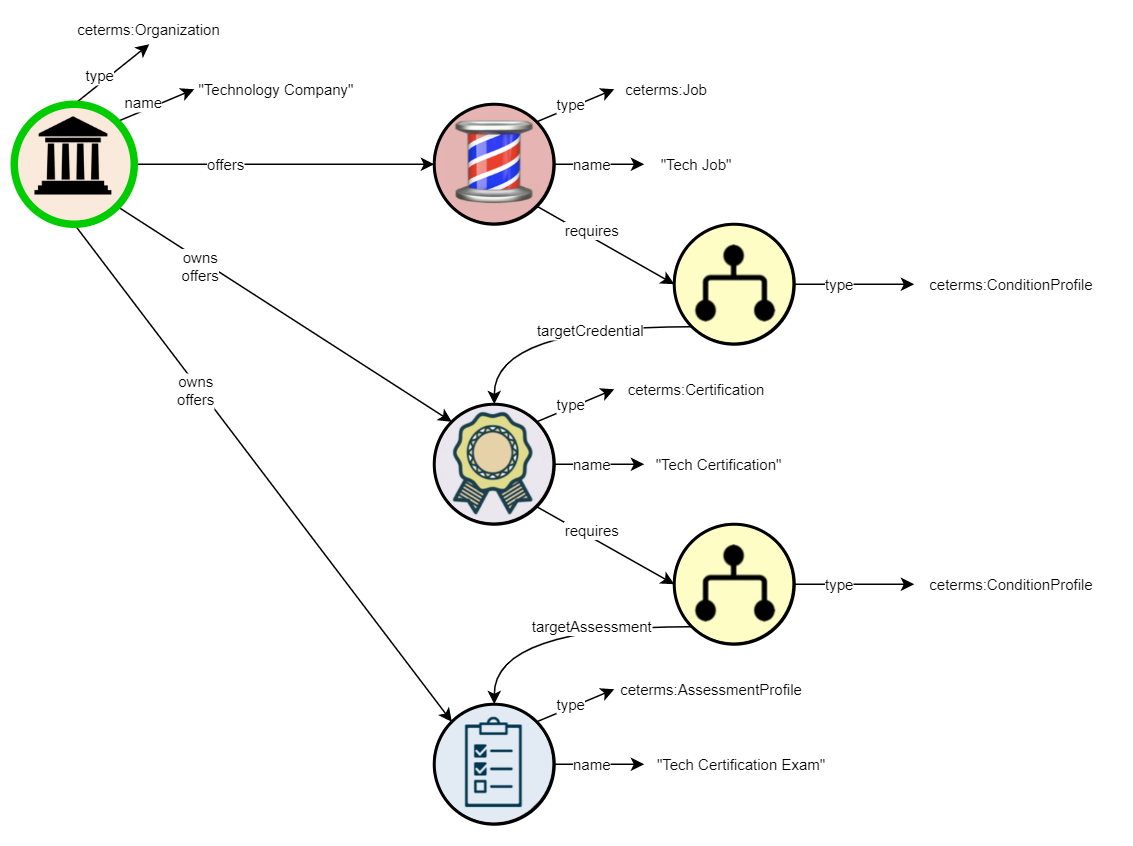

The example below shows an Organization playing the roles of an employer offering a job, the provider of a credential needed for that job, and the provider of an assessment needed to earn that credential.

Broad Organization Class

Broad Organization Class

More targeted subclasses have been defined for use in describing organizations playing key roles in the lifecycle of Credential development, maintenance, and application:

1. Credential Organization
2. QA Credential Organization

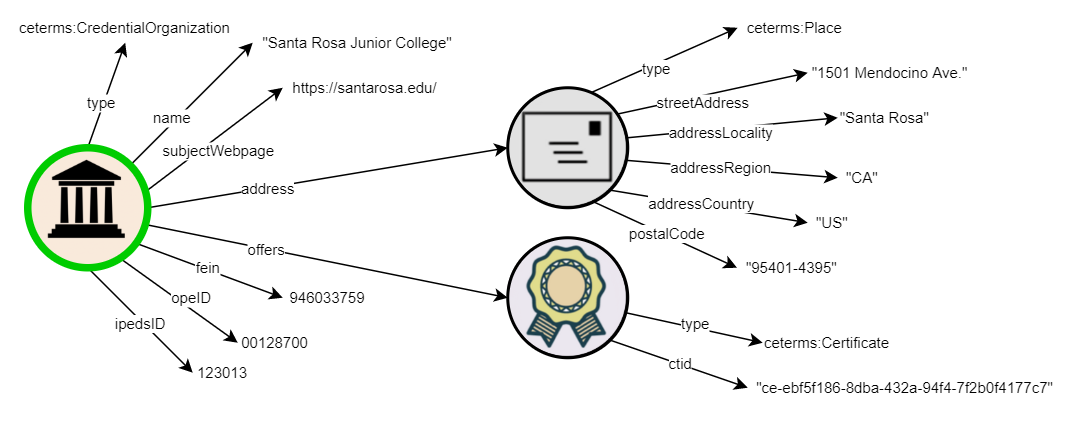

The figure below illustrates an instance of the Credential Organization subclass and includes a few of the available properties including the name of the organization, its webpage (subjectWebpage), a number of official identifiers (fein, opeID, and ipedsID), a reference to the organization's postal address (address), and a reference to one of its offered certificates (Certificate). For additional information about the Agent class and its subclasses, and additional properties, see the Agent schema tables as well as additional properties available for use in describing relevant organizations and persons.

Figure 2.1.1A

Santa Rosa Junior College as Credential Organization

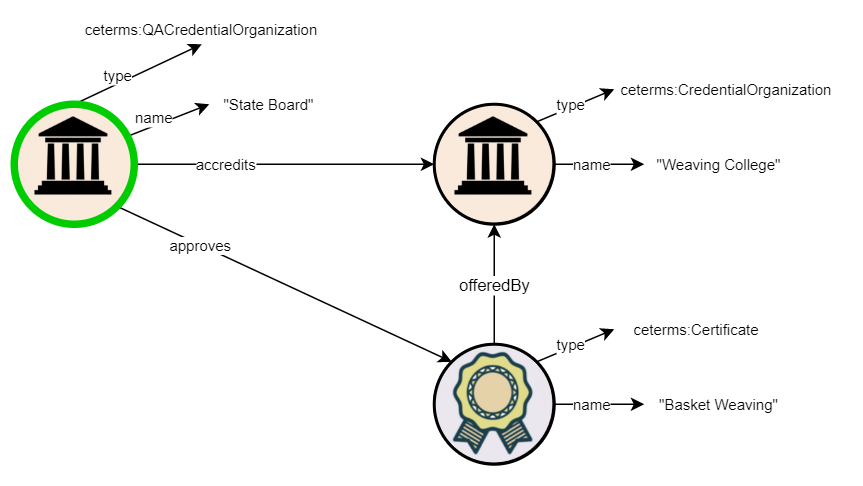

The example below shows an state board accrediting a school and approving of one of its credentials.

Quality Assurance Organization

Quality Assurance Organization

Credential

The Credential superclass is broadly defined as "A qualification, achievement, personal or organizational quality, or aspect of an identity typically used to indicate suitability" and includes entities beyond the scope of the CTDL including things like passports, birth certificates, etc. The Credential superclass should not be used in CTDL resource descriptions where a more narrowly defined subclass is applicable. In the Credential Registry, one of the subclasses of Credential must be selected. References throughout this Guide to the Credential class are equally applicable to its subclasses.

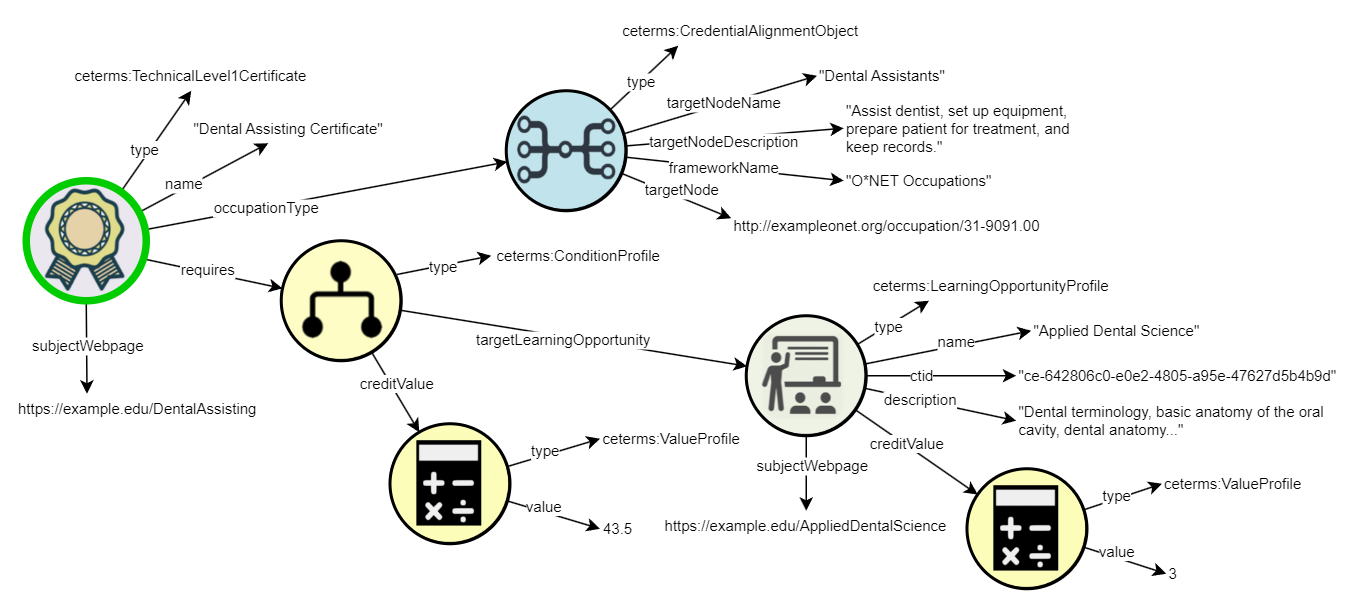

The following figure provides a brief description of a Dental Assisting Technical Level 1 Certificate from an example educational organization. This brief description includes the certificate name (name), total credit units (ceterms:creditValue), and the certificate's webpage on the SRJC website (subjectWebpage). In addition, one required (requires) course (LearningOpportunityProfile) is referenced. The description also identifies and describes the O*Net "Dental Assistants" occupation code (occupationType). The Certificate product identifier (ctid) is included.

Figure 2.1.2A

Dental Assisting Certificate

For more on the LearningOpportunityProfile class, see Section this section. For more on the CredentialAlignmentObject class, see this section.

Credential Types

CTDL defines the following Credential subclasses for use in resource descriptions by the credentialing community. Where a specific subclass does not exist for the type of credential being described, the nearest parent class should be used. For example, a "Bachelor of Architecture" is neither a Bachelor of Science nor a Bachelor of Arts and so should be described as a Bachelor Degree.

Assessment Profile

The AssessmentProfile is defined as a resource that "describes the key characteristics of an assessment for a credential." The figure below illustrates the use of Assessment Profile to describe a summative (Summative) performance (Performance) evaluation called "Modern Dance Performance Final (Recital)" required by a course (LearningOpportunityProfile) named "Modern Dance VI". The concept values for both the assessment use and the assessment method are drawn from controlled vocabularies described using the CredentialAlignmentObject.

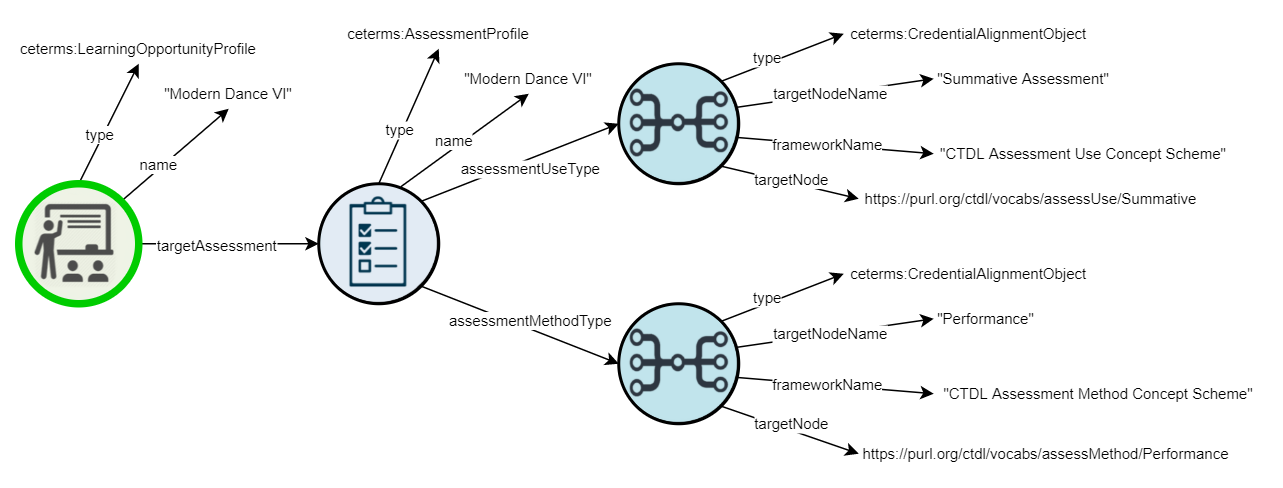

Figure 2.3A

Assessment of a Learning Opportunity (Dance)

For more information on CredentialAlignmentObject, see this section.

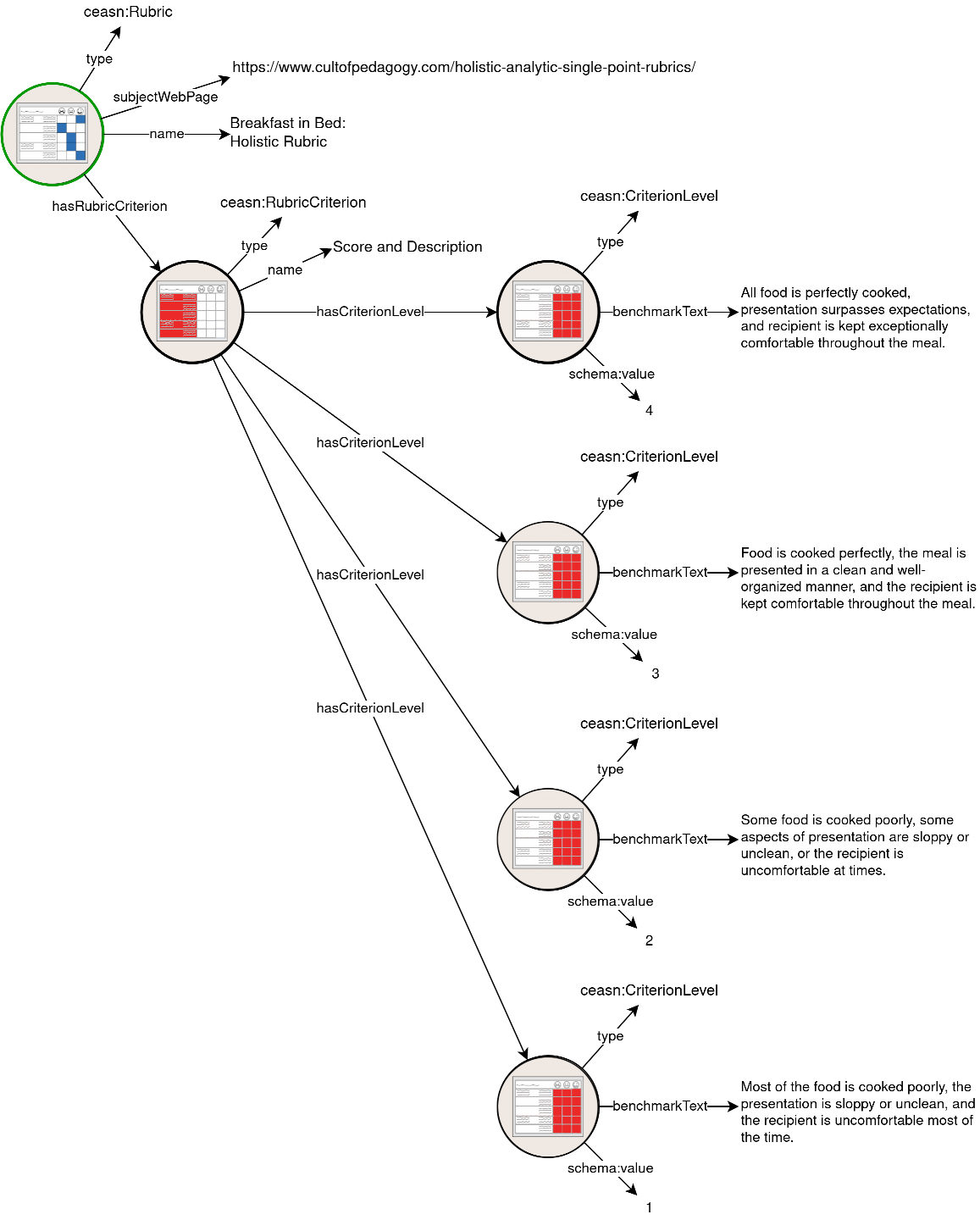

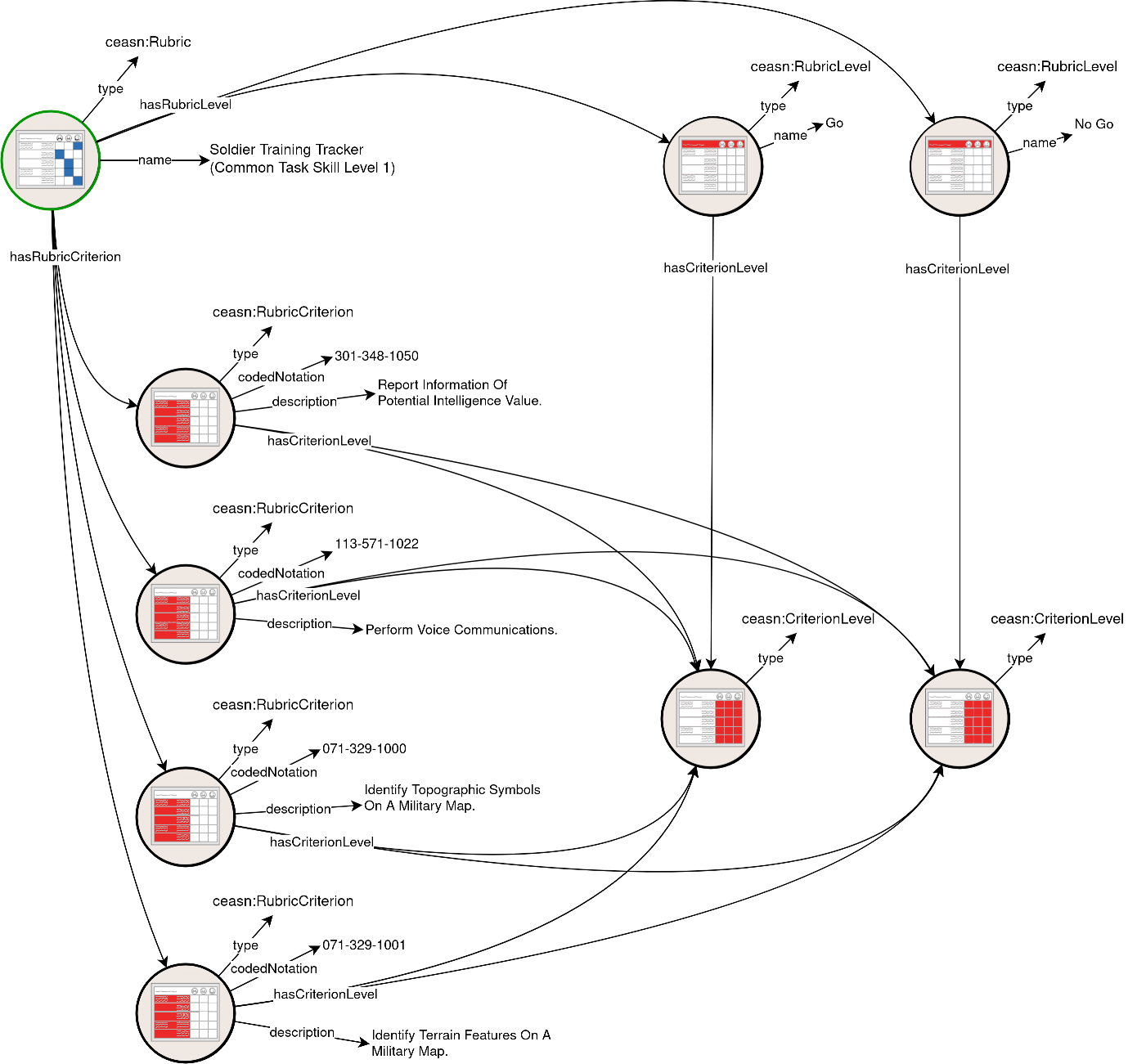

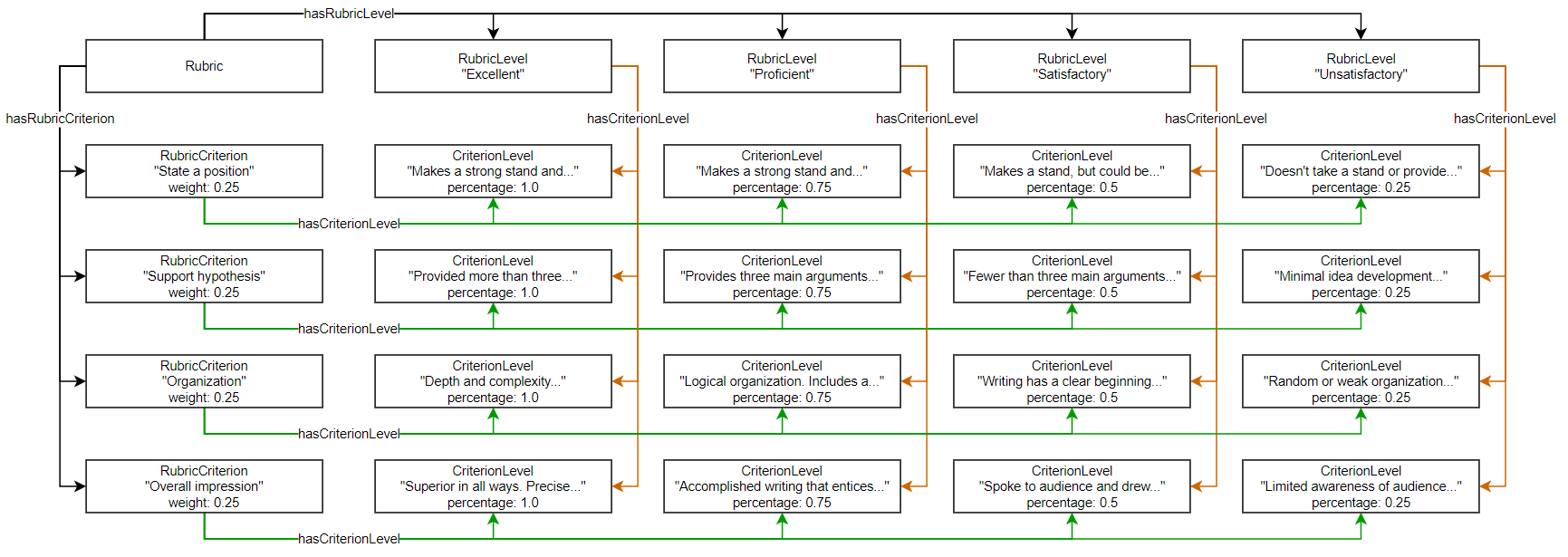

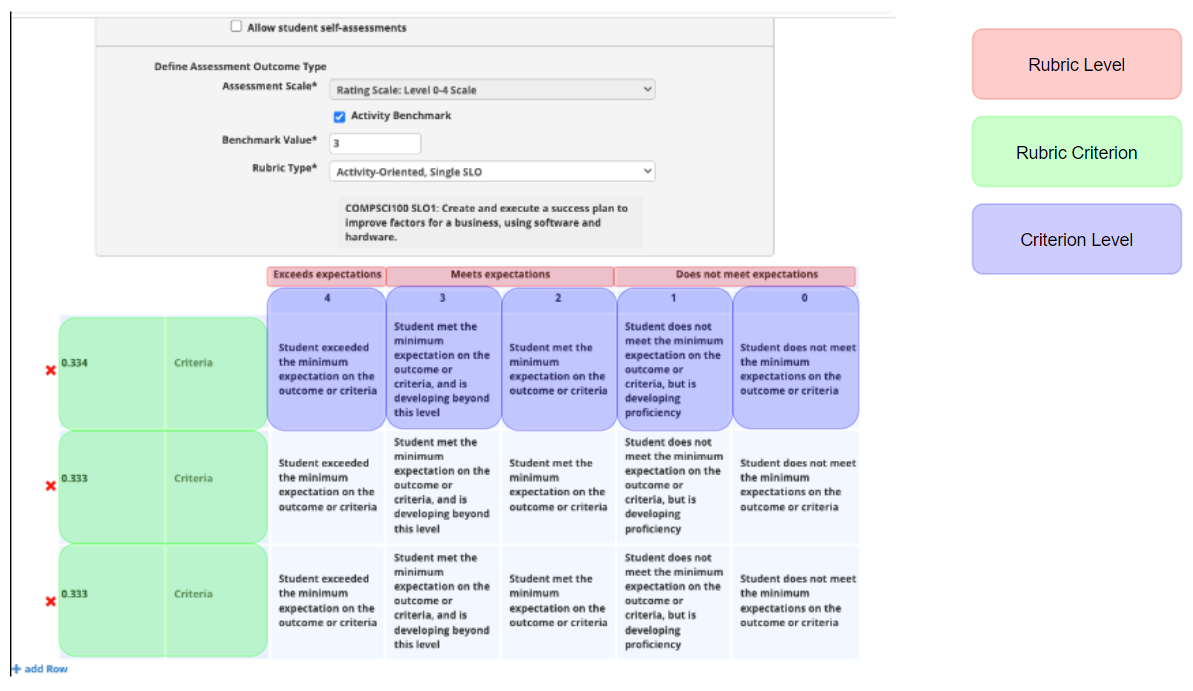

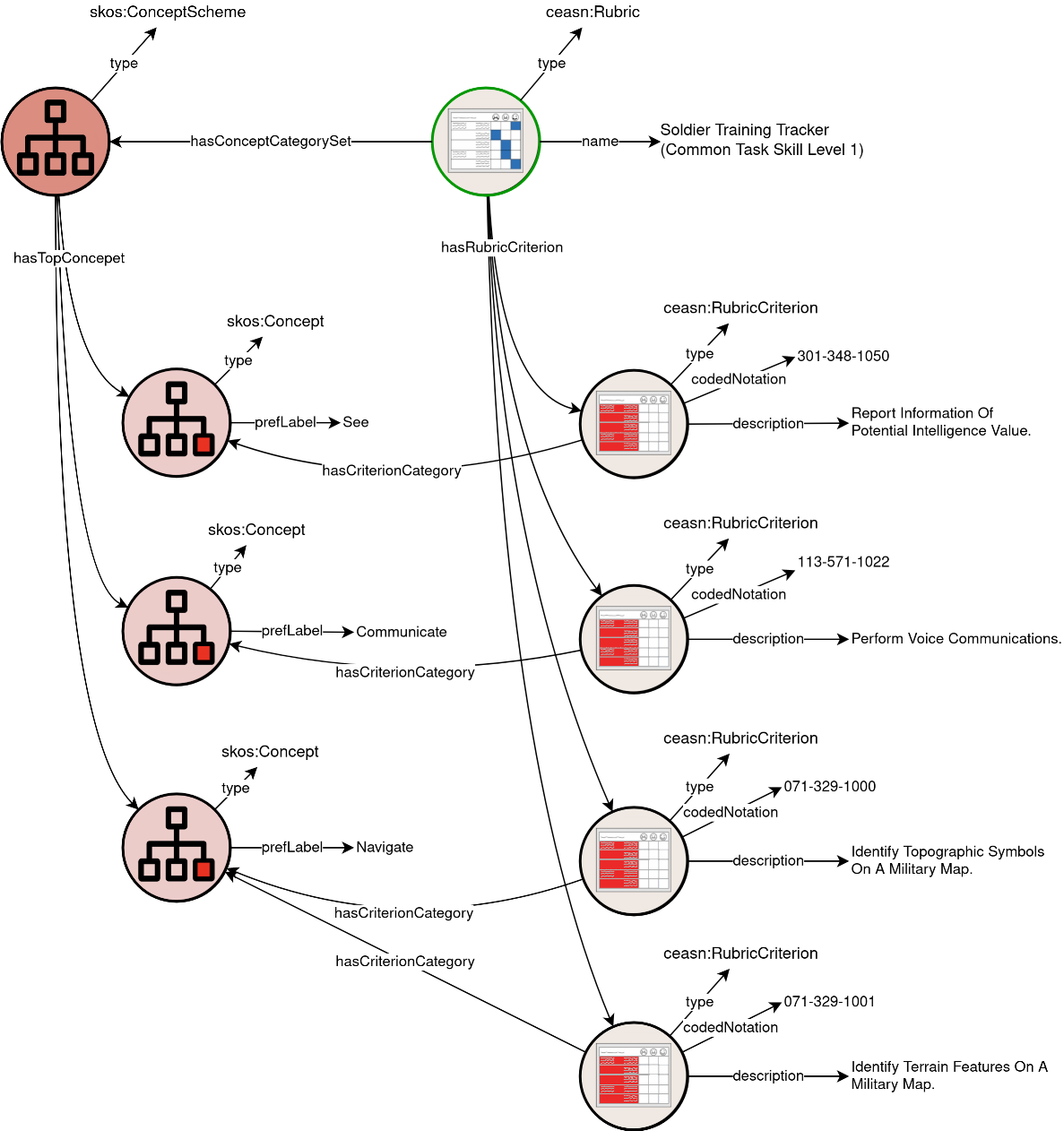

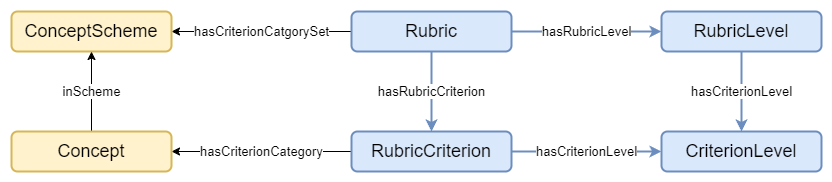

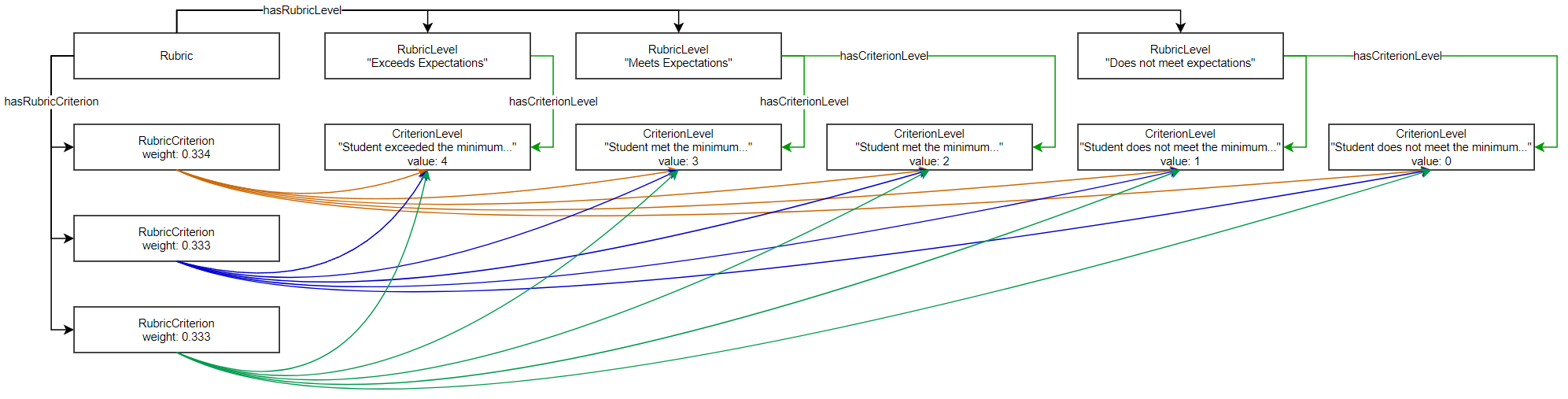

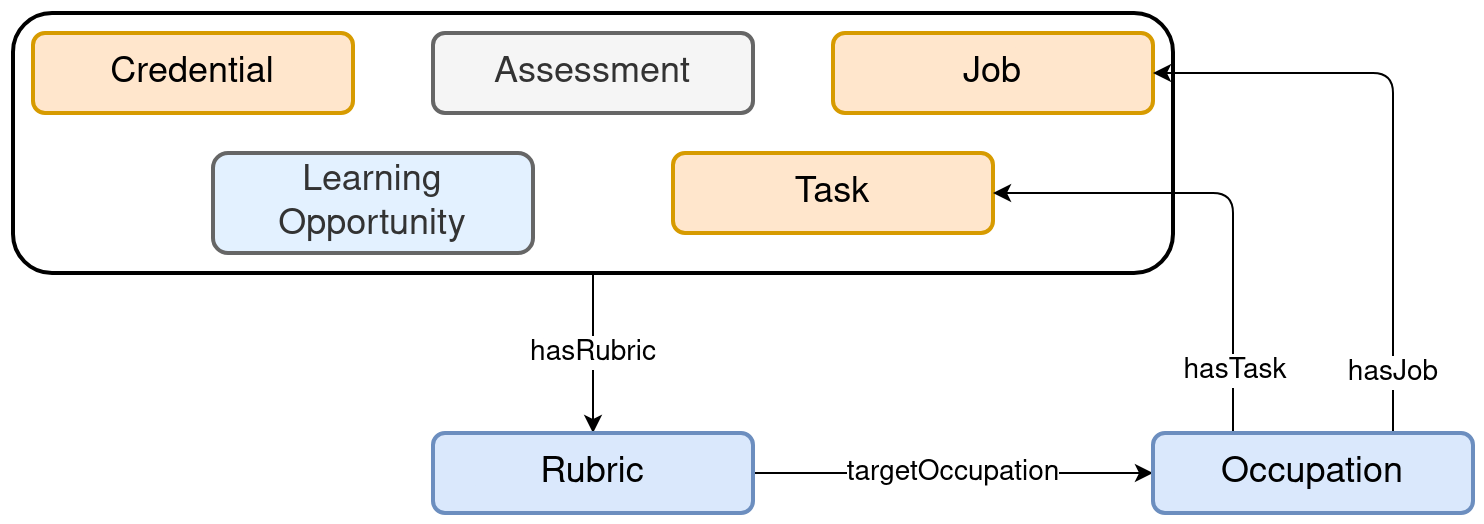

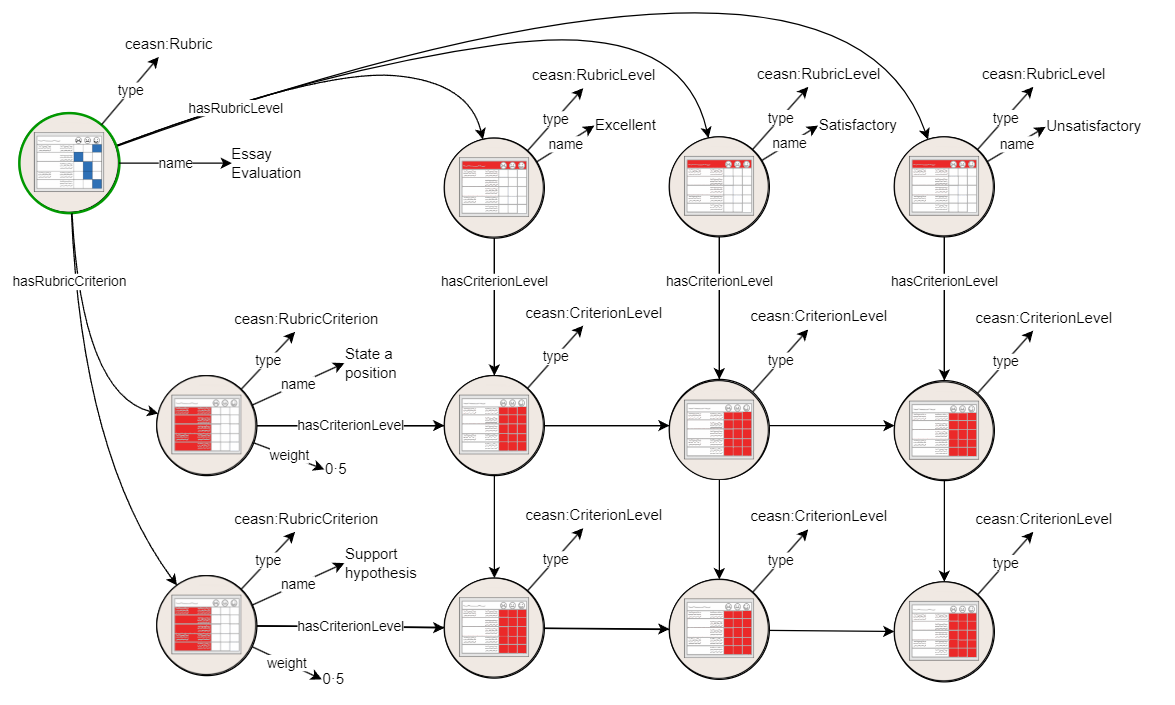

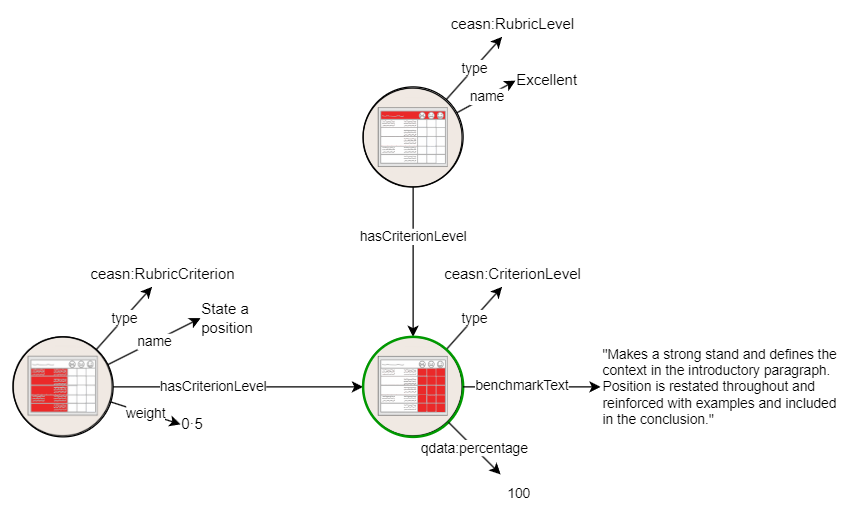

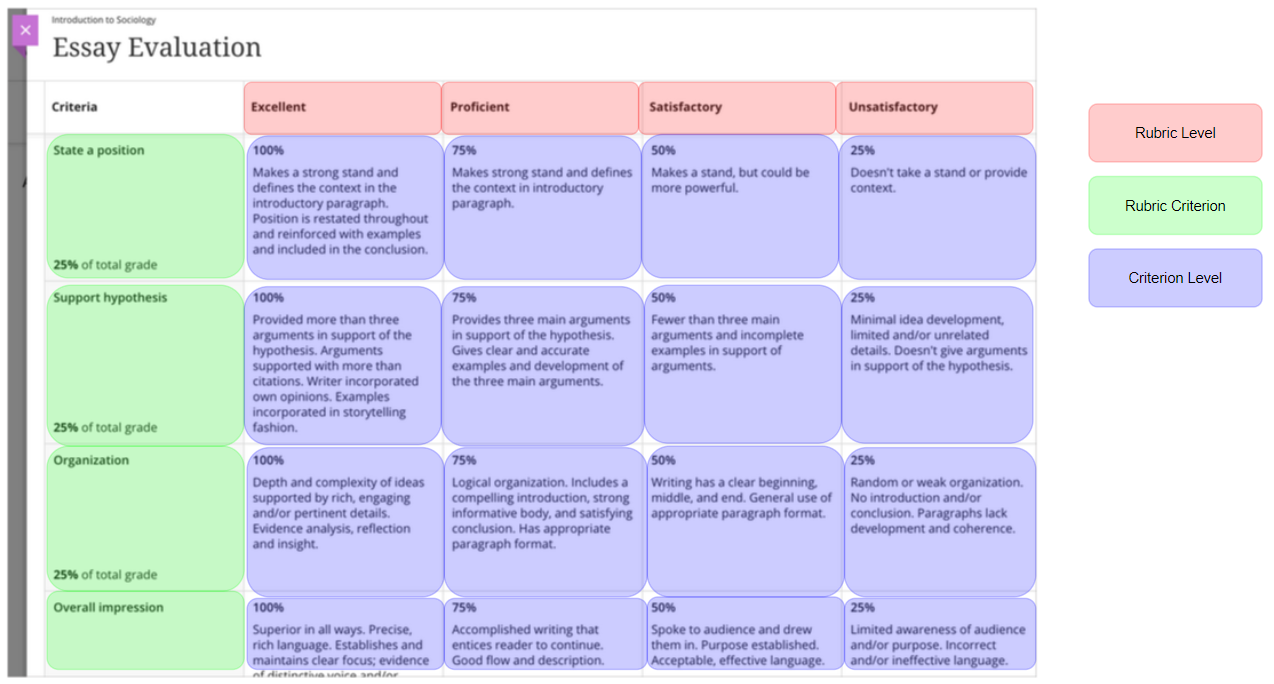

Assessments are often used in conjunction with rubrics, for example to describe the marking scheme. Rubrics are described in detail in this section.

Learning Opportunity Profile

A LearningOpportunityProfile is defined as a resource "describing an educational or training opportunity." Learning opportunities include required and optional programs, courses of study, apprenticeships, and any other structured experiences intended to serve as educational or training events.

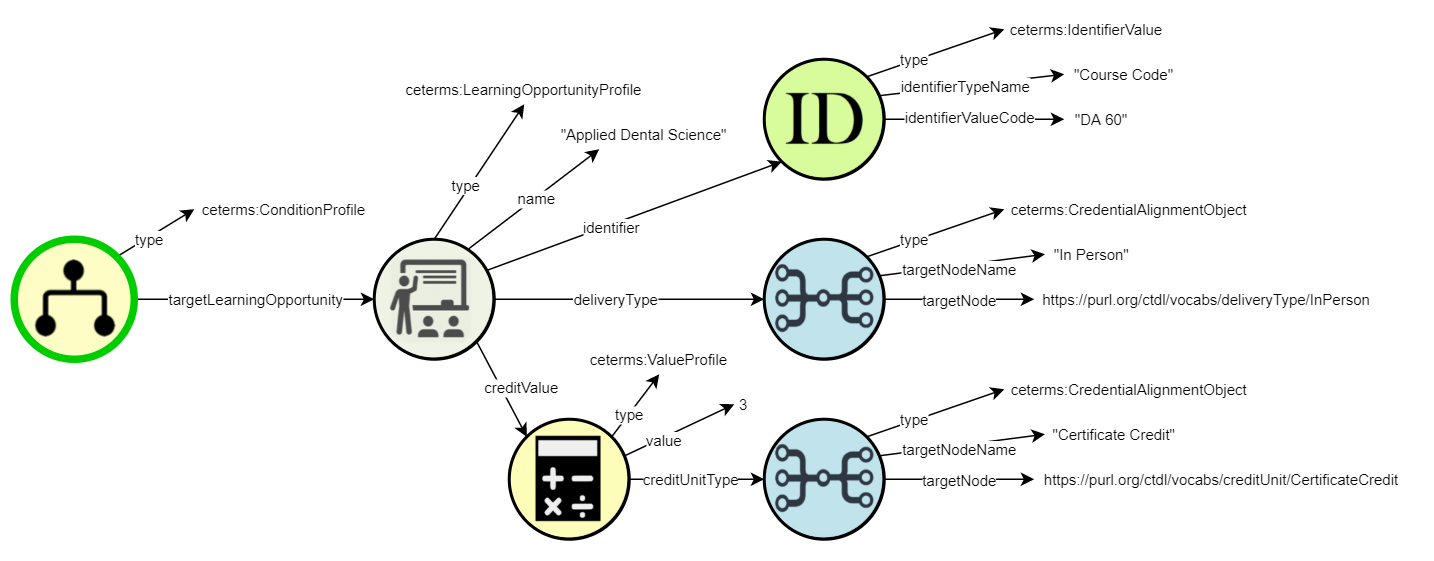

Figure 2.4A

Condition Profile referencing a Learning Opportunity Profile

Learning Opportunity Types

CTDL allows for two subclasses of Learning Opportunity to be identified as distinct types: Learning Program and Course.

The difference is that a Learning Program is a learning opportunity that comprises several other learning opportunities (typically courses, maybe work placements and other opportunities) whereas a Course is a single coherent unit. Not all Courses are part of a Learning Program. Furthermore, the Course and Learning Program classes do not cover all types of Learning Opportunity: many learning opportunities, especially informal ones, will best be described with the Learning Opportunity Profile class. Just as with Learning Opportunity Programs, both Learning Programs and Courses may have competencies (learning objectives/outcomes), assessments, credentials etc. as well as a wide range of descriptive terms associated with them. The Learning Program and Course classes are defined as follows:

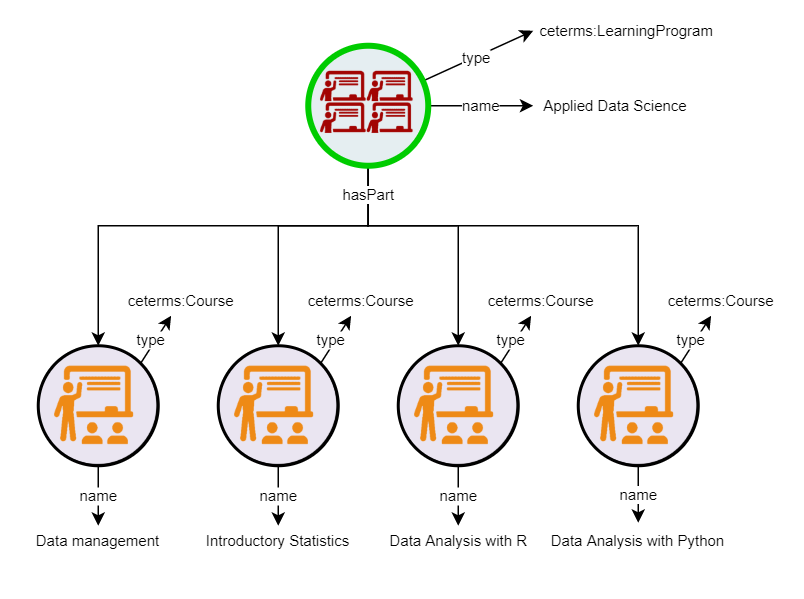

Figure

Learning Program comprising four Courses

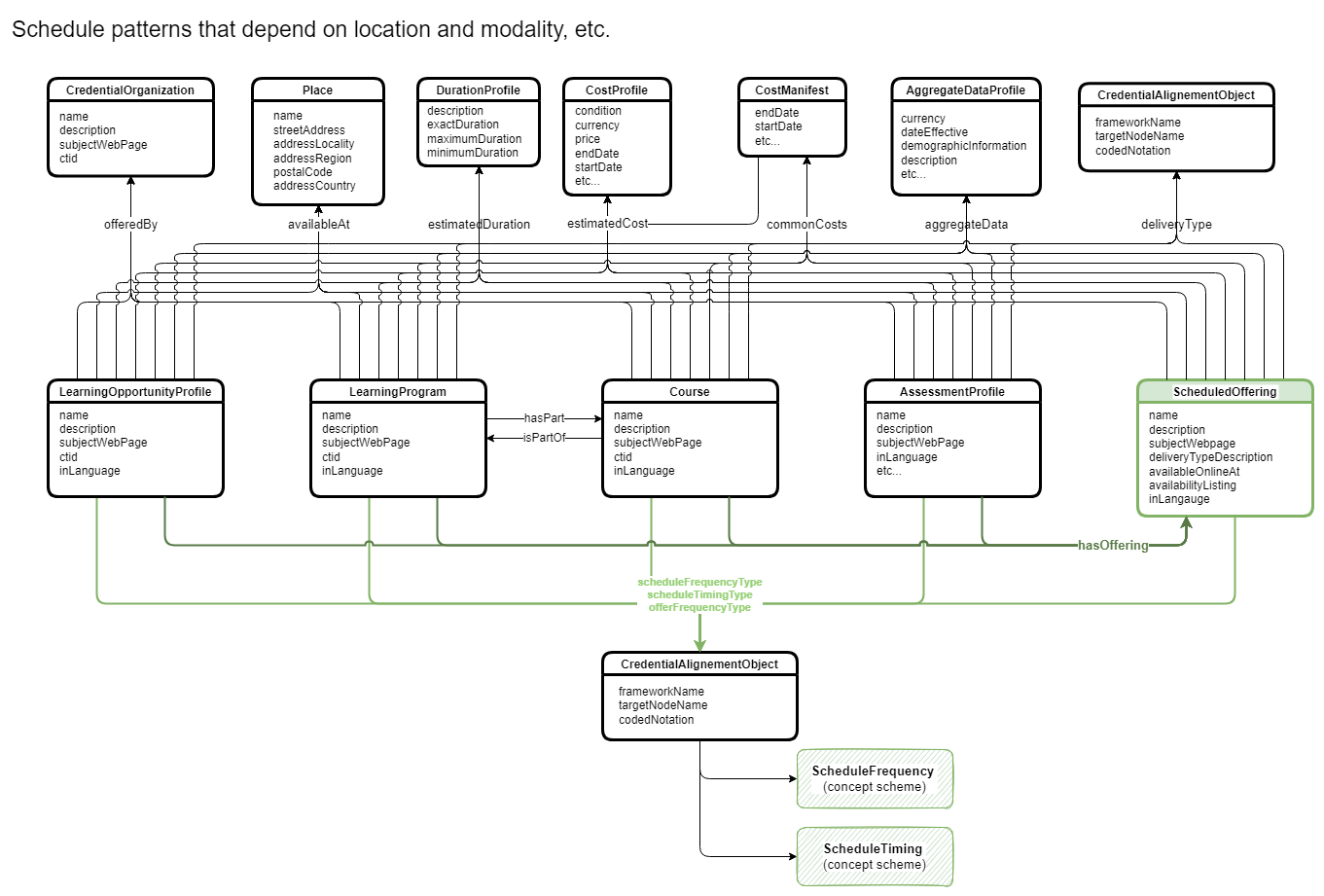

Scheduling Patterns

It is frequently useful to give an indication of aspects of the scheduling of a Learning Opportunity, Learning Program, Course or Assessment in order to inform potential students on how frequently such an opportunity is offered and when and how frequently they would have to attend events during the opportunity. For example, a course may be offered once a year or every quarter and attendance may be required several times a week in the evening. To accommodate this, CTDL has properties and concept schemes to describe offer frequency type, schedule frequency type, and schedule timing type via the associated concept schemes Schedule Frequency and Schedule Timing. As scheduling often varies when opportunities are offered in more than one location or through more than one delivery mode, CTDL also provides Scheduled Offering, which can be used (where necessary) to provide information about an offering with a specific scheduling pattern, location or modality. ScheduledOffering also allows for different costs, durations and aggregate outcome data for different locations, scheduling patterns or modality, for example if the duration of course taken part-time in evening classes is longer than the same course taken full time.

The property has offering can be used to indicate a ScheduledOffering from a LearningOpportunity, LearningProgram, Course or AssessmentProfile.

Note: it is not the intention to provide as much information about scheduling as would be required for something like a calendaring app, the idea is merely to indicate the pattern. Further detail may be provided using vocabularies such as schema.org/Schedule, if required.

Scheduling Pattern Examples

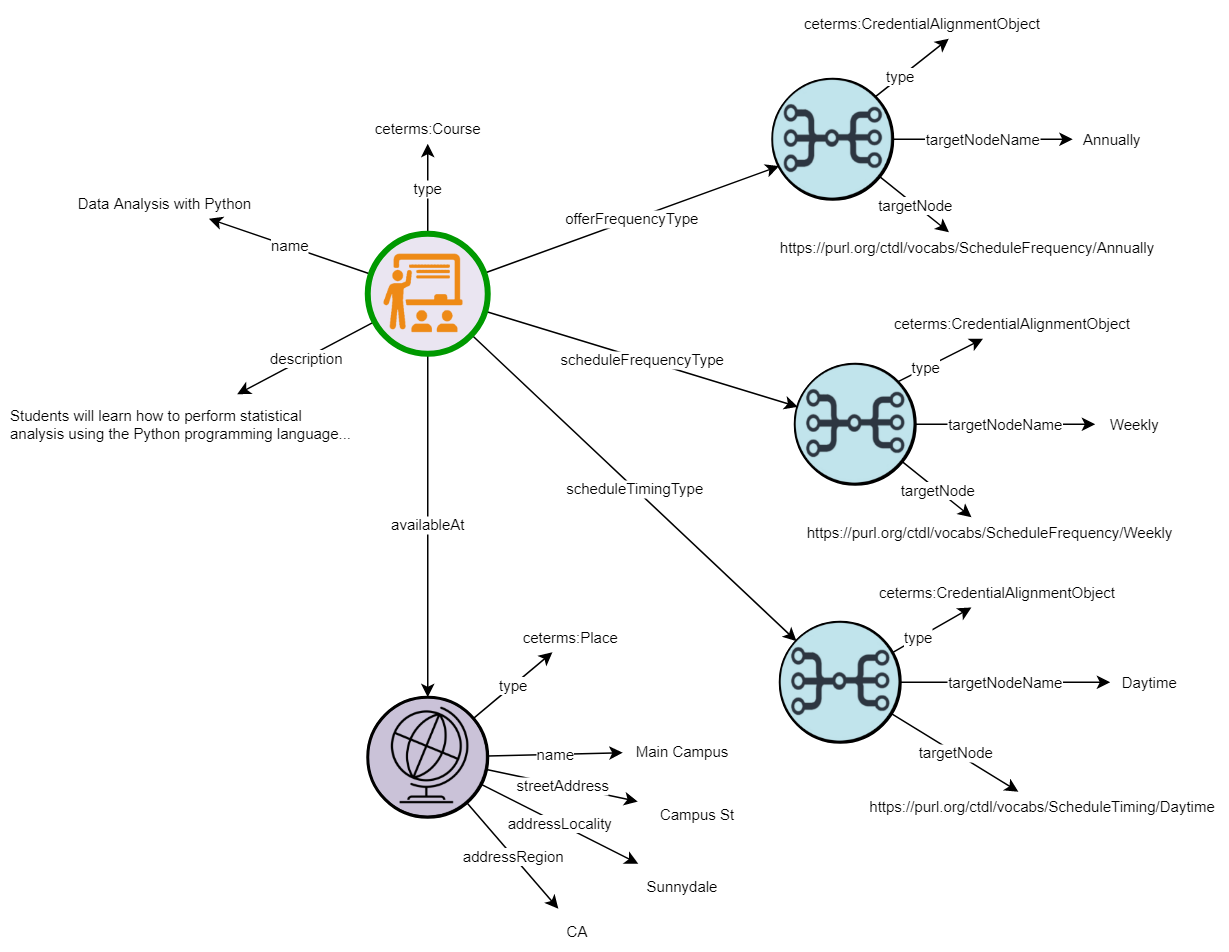

The first example shows a simple case of a course that is offered at a single location; the course is offered once a year, and attendance is weekly during the day. As there is no variation of scheduling pattern with location the scheduling properties can be associated directly with the Course object.

Figure

Schedule Example 1

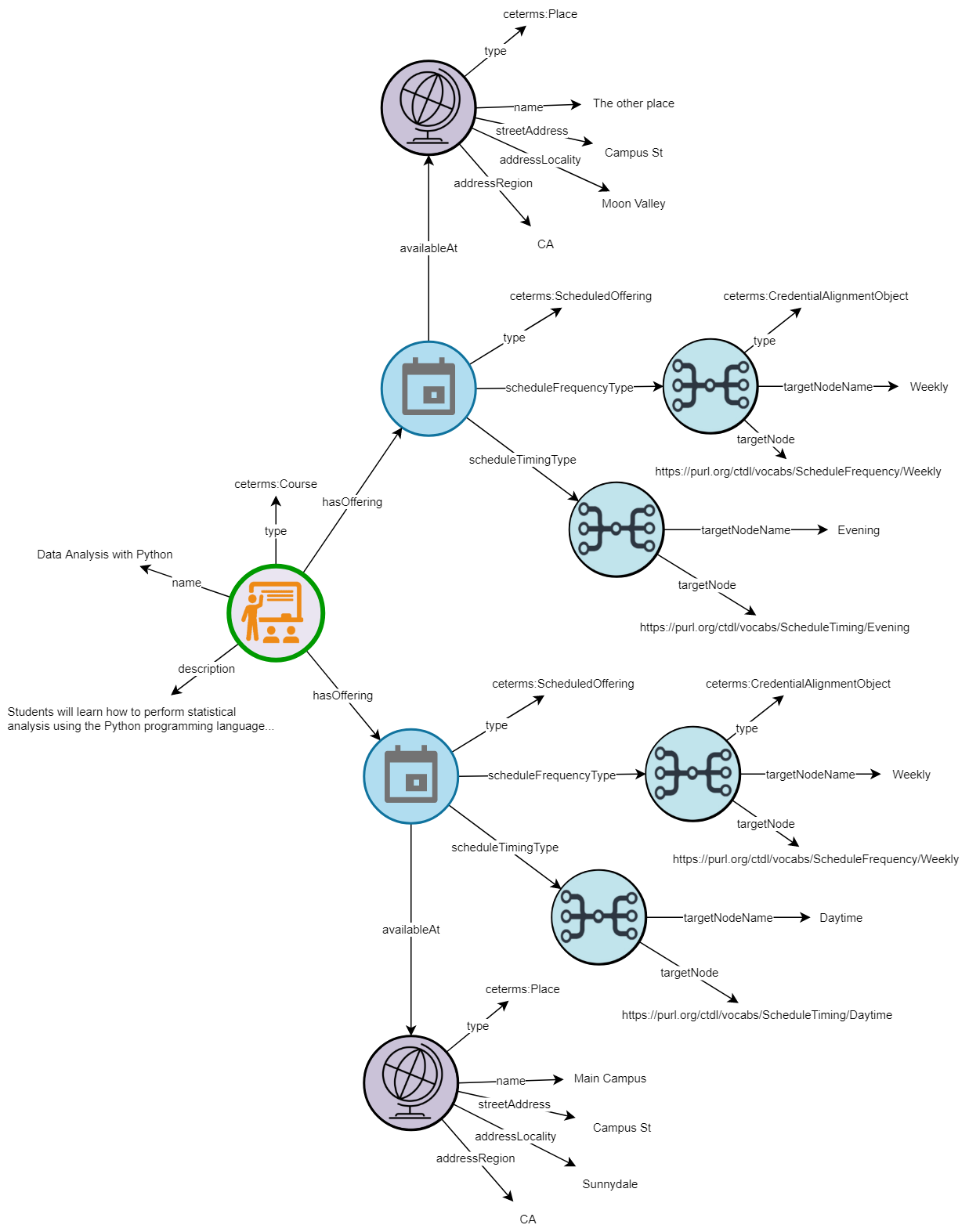

In the second example, a course is offered in two locations, in one attendance is on a weekly basis in the evening, in the other it is weekly in the daytime. The scheduling pattern for each location is provided as a distinct ScheduledOffering.

Figure

Schedule Example 2

Education to Work Classes

CTDL has a set of classes and properties that allow credentials, learning opportunities, assessments and competencies to be described in the context of employment, and vice versa. These mean that CTDL can be used to show that credential, learning opportunity, assessment or competency prepares a person for occupations, whether or not that occupation is described in an external classification scheme such as ONet, ESCO or military occupation systems. Furthermore, instead of a generic occupation, the credential, learning opportunity, assessment or competency can be related to specific jobs, work roles or tasks. Such information allows for greater transparency concerning the value of credentials with respect to career and employment opportunities. Individuals should be better able to take educational opportunities that further their careers; education and training providers should be better able to understand the needs of relevant employers; employers should be able to find credentials and programs that prepare for the jobs they offer. Another element in improving transparency around work and employment that is facilitated by CTDL is the description of rubrics, which may be used for many things including to evaluate the suitability of a person for a job or their performance on a task. Rubrics are described in detail in this section.

The CTDL classes dedicated to describing Work are Occupation, Job, WorkRole and Task, which are described in detail below:

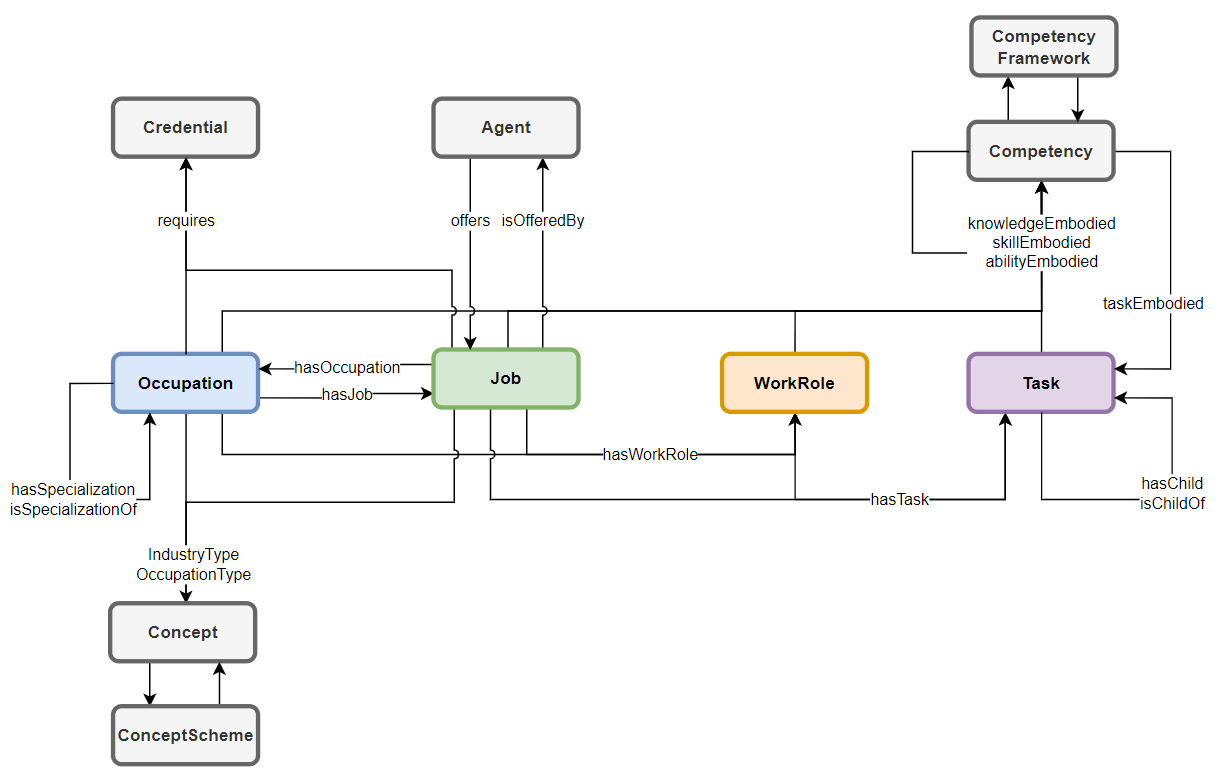

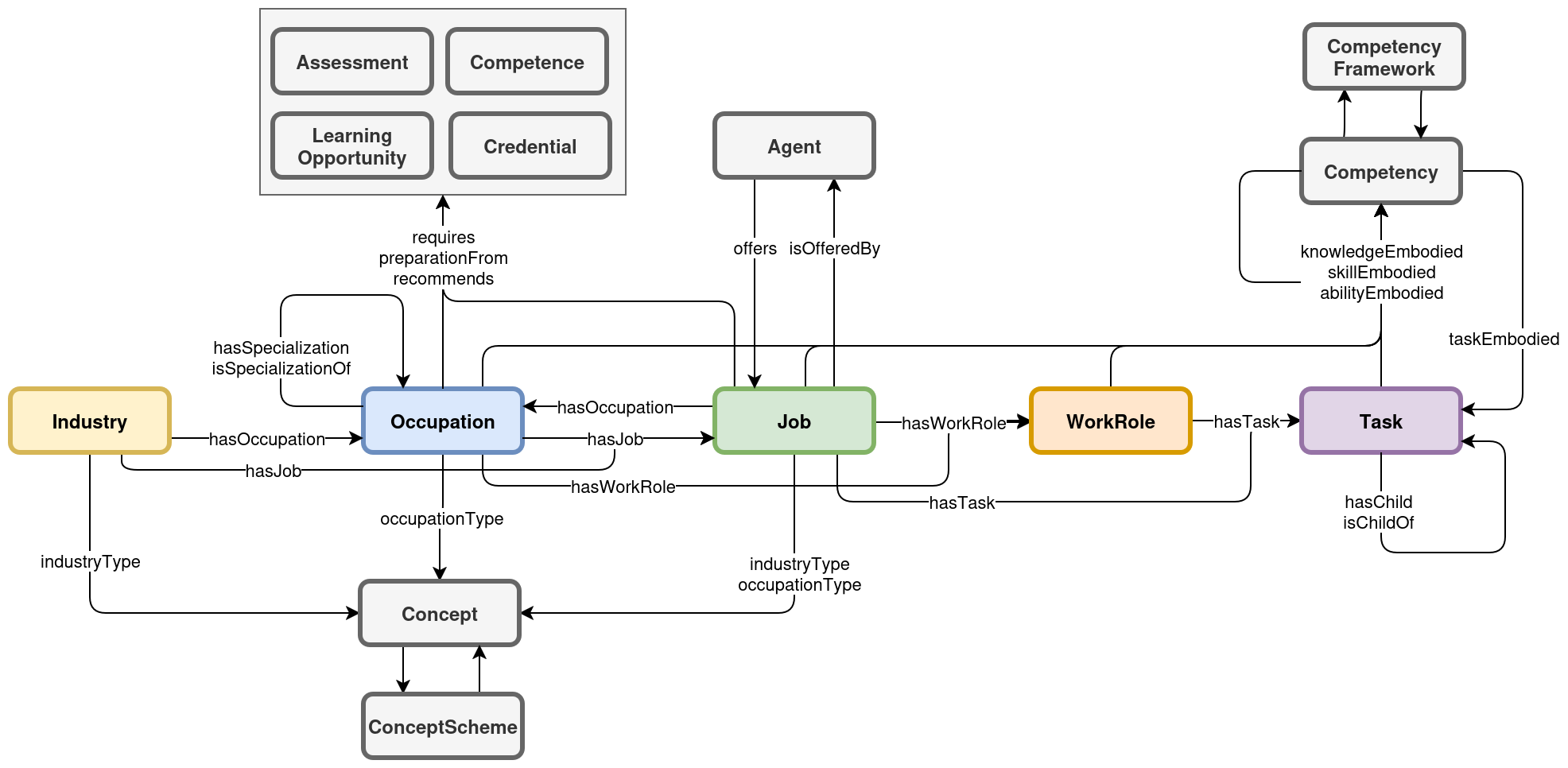

The relationships between these and classes used to describe competencies, concepts, identifiers and agents are shown in the image below. Competencies are one of the key linkages between education and work, as they may be the learning outcomes of learning opportunities, required to pass assessments or to gain a credential and may also be associated with any of the four main classes describing Work. The choice for how to show the relationships between competency and the aspect of work being described will depend on context. For example for internal use an employer may define the competences required for particular tasks, and then group these tasks into work roles and jobs; on the other hand in a job posting the competencies required may be associated directly with the job.

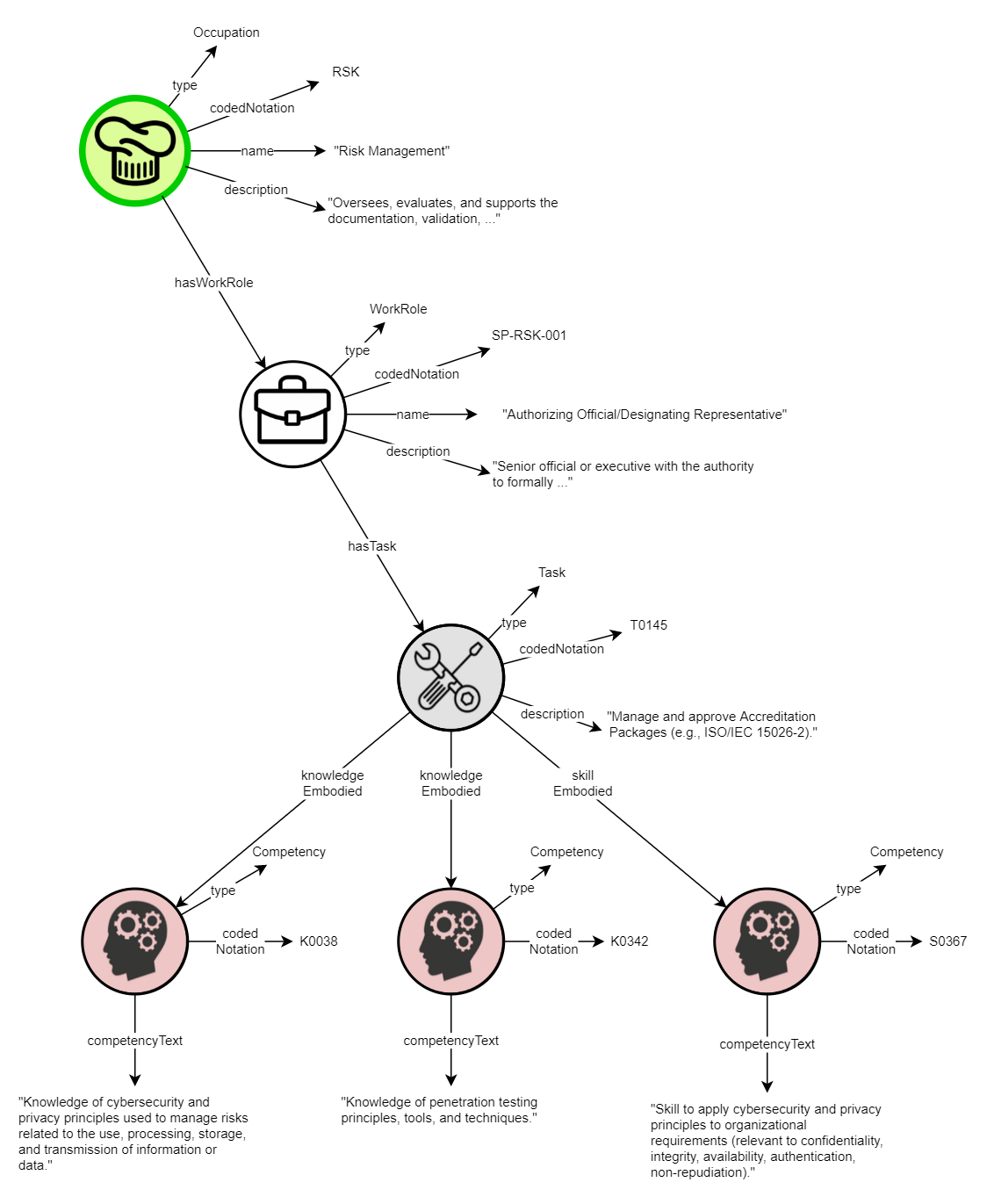

The example below illustrates relationships between Occupation, Work Role and Task and the Competencies that are embodied by the Task. For simplicity only one Work Role is shown for the Occupation, and one Task for that Work Role, though in reality there would be many Work Roles each with many Tasks.

NICE Framework

NICE Framework

Occupation

An Occupation is defined as a profession, trade, or career field that may involve training and/or a formal qualification. An occupation does not have to have a direct correspondence to an entry in a formal classification scheme such as ONet, ESCO or military occupation systems, but if it does then this relationship can be shown. Some occupations are specializations of others. Occupations may be related to Jobs, Work Roles and Tasks, and embody certain competencies that are required of a person working in said occupation.

Job

A Job is defined as a set of responsibilities based on work roles within an occupation as defined by an employer; it describes an abstraction or template of which specific job postings or openings could be instances. A job may correspond to an entry in a formal classification scheme of occupations or an occupation, or may be related to an occupation that is not described in such a scheme. Like an occupation, a job may be related to Jobs, Work Roles and Tasks, and embody certain competencies that are required of a person working in said occupation. A key difference between a Job and an Occupation is that a Job is offered by an Agent (an employer) that defines the specific scope in terms of Work Roles and Tasks.

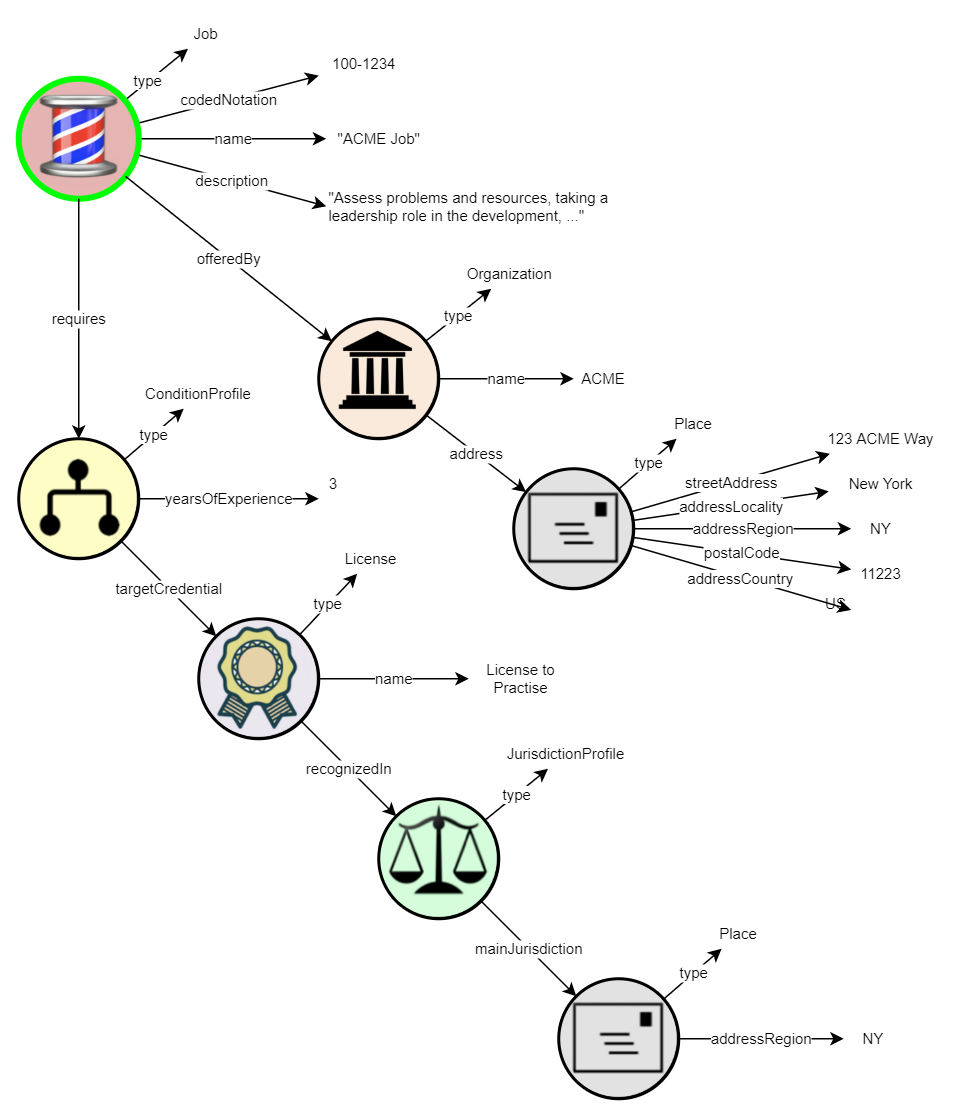

An example description of a Job is given below, focusing on the relationship between a Job and a Credential. In this case the job requires a "license to Practice" that is recognized in the relevant Jurisdiction. No further information is provided about this Credential, which is a useful pattern when there might be several specific options that would fit the requirement. A full example could also include Work Roles and/or Tasks involved in this Job and the Competencies embodied by these tasks.

Job Requiring a License to Practice

Job Requiring a License to Practice

Work Role

A Work Role is defined as a collection of tasks and competencies that embody a particular function in one or more jobs. Work roles are related to tasks and may embody certain competencies that are required to complete these tasks.

Task

A Task is defined as a specific activity, typically related to performing a function or achieving a goal. Tasks may be decomposed into sub tasks. A task may embody certain competencies that are required to complete it successfully.

The example below illustrates how a task can comprise a sequence of sub-tasks, note the use of listID to specify the ordering of the sub-tasks. This example also shows how a task can be classified against a Concept Scheme.

Navy Maintenance Tasks

Navy Maintenance Tasks

Collection

A Collection is defined as an aggregation of related member resources. As the name of the class indicates, it is a resource that "collects" already existing instances of resource types including Competency, Course, Job, Learning Opportunity Profile, Learning Program, Task and Work Role. These instances may be members of one or more Collections. A Collection may be defined for any useful purpose.

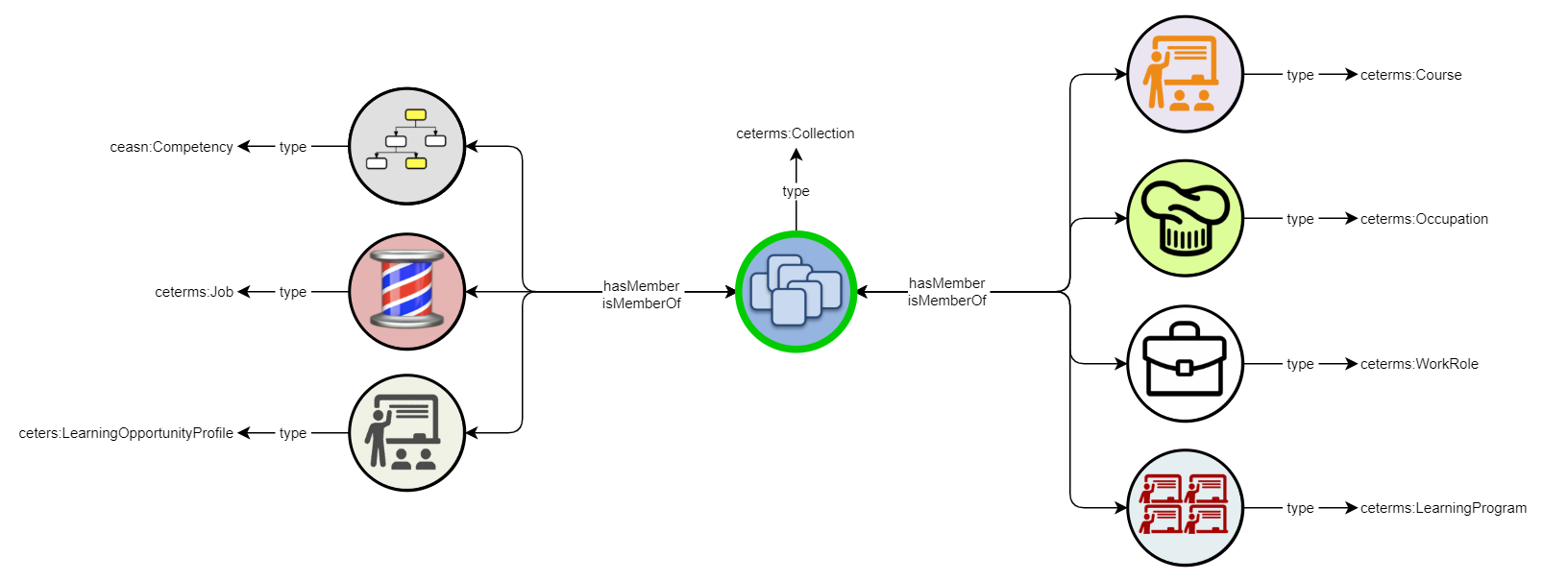

The figure below illustrates a collection with an array of differently typed members.

See the Collection section under CTDL-ASN for more information.

Collection and Approval Lists

State and federal government agencies and other organizations are tasked with providing approved list of credentials, assessments, learning opportunities, and related competencies that are recognized by that agency as meeting the requirements for some purpose (such as a state's Eligible Training Provider List). CTDL enables capturing this kind of information via the ceterms:Collection class, which provides both the capability of creating a list of resources and describing that list.

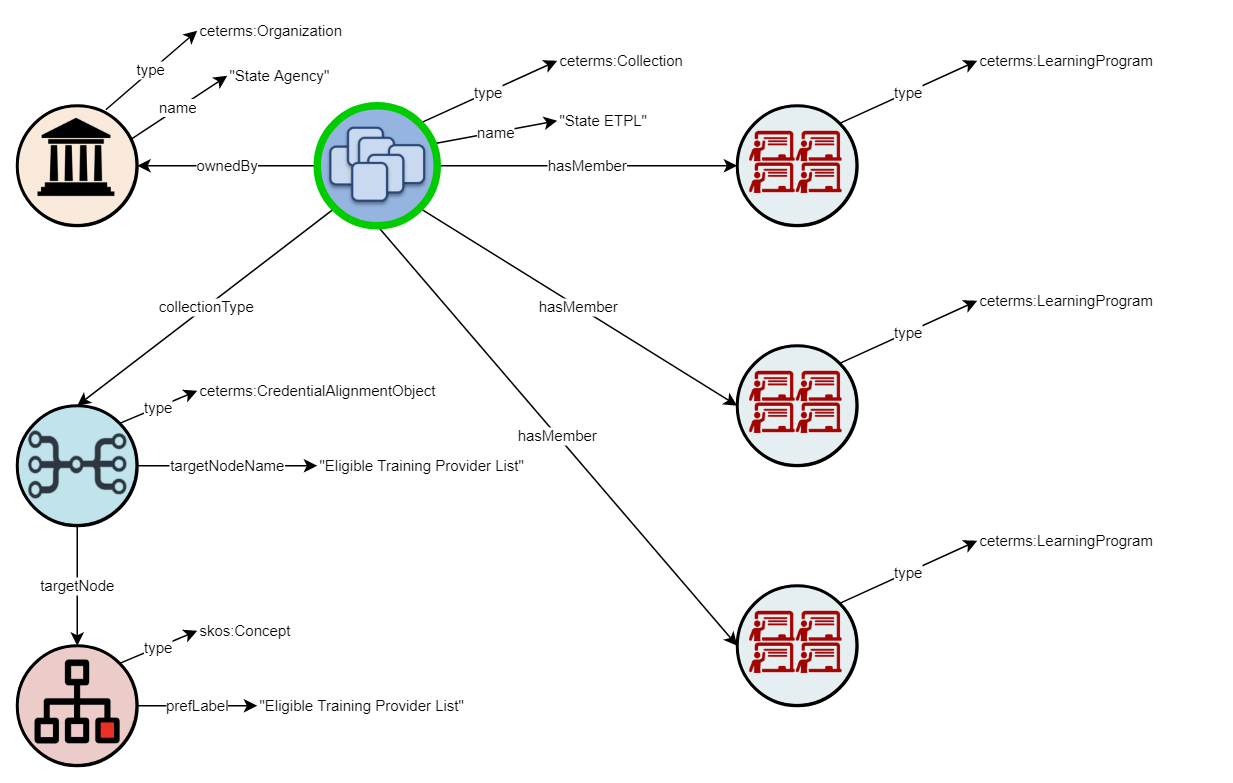

For example, in the ETPL use case, a Collection would be published by a state agency, using the ceterms:hasMember property to reference the resources (either directly or via ceterms:CollectionMember - see below) and the ceterms:collectionType property to reference the collectionCategory:ETPL Concept. This combination of terms indicates to a consumer of the data that the Collection represents that state's ETPL.

ETPL with Direct Membership

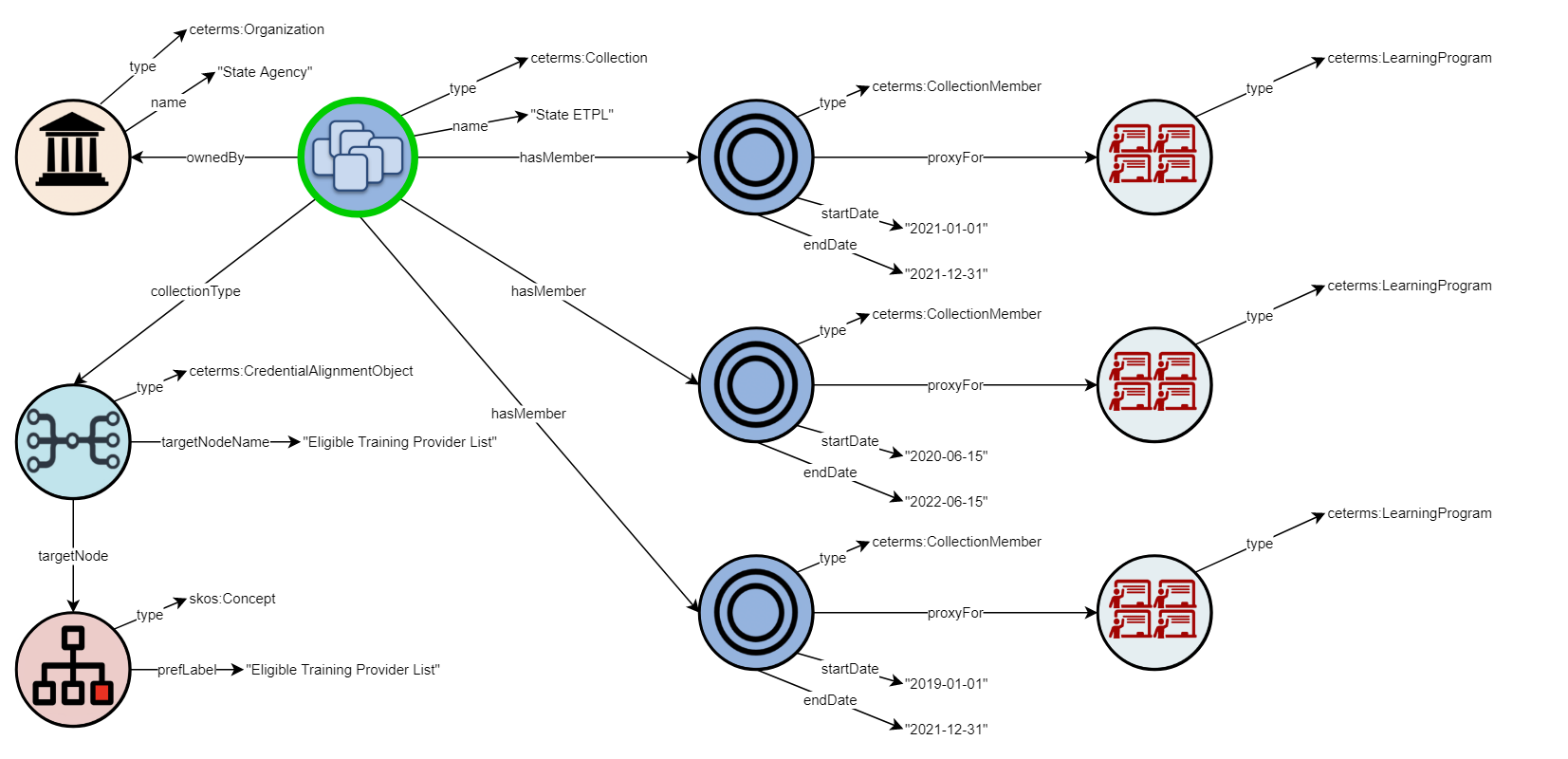

In some cases, it is necessary to indicate when a given resource's membership in a list begins and/or ends. In these cases, the ceterms:CollectionMember class is used as a member of the Collection and acts as a proxy for the resource in question. You should only use CollectionMember if you need to indicate the ceterms:startDate and/or ceterms:endDate of that resource's membership in that Collection.

ETPL with Collection Member

Pathway Classes

Note: For more in-depth coverage of Pathways, see the CTDL Pathways Overview.

In the context of CTDL, a pathway consists of a structured set of objectives and qualifying conditions defining points (milestones) along a route to fulfillment of a job, occupation or career. Qualifying conditions include homogeneous or heterogeneous sets of prescribed, preferred or recommended evidentiary artifacts such as competencies attained (knowledge, skills, abilities), relevant awards, other forms of recognition such as credentials earned and relevant experience.

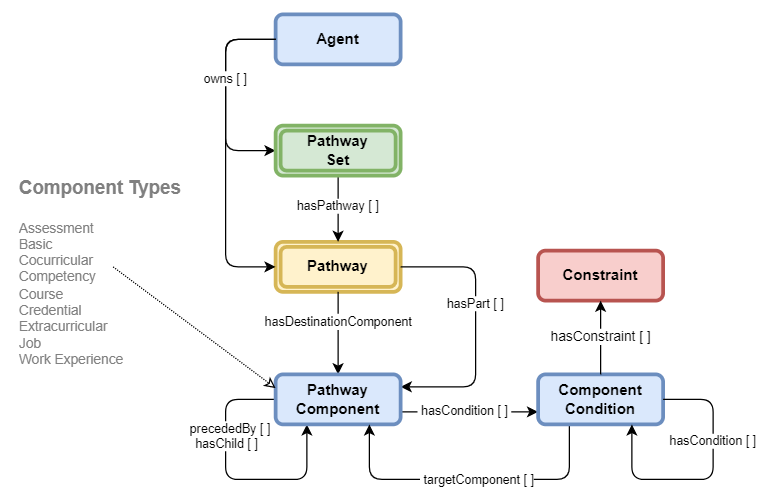

The Pathways ecosystem is composed of the following classes representing the key types in the CTDL data model:

PathwayComponent is a supertype that represents a family of more precise subtypes. In pathway descriptions, always use the subtype of PathwayComponent appropriate to your circumstances, e.g., AssessmentComponent, CocurricularComponent, CompetencyComponent, CourseComponent, CredentialComponent, ExtracurricularComponent, JobComponent, and WorkExperienceComponent. Use BasicComponent to define types of entities not covered by the current set of subtypes.

The Pathways model does not define any properties for the Agent class and assumes that appropriate agents defined within relevant contexts will be referenced from the Pathway entity via the ownedBy property of the Pathway. For example, an instance of the CTDL CredentialOrganization class could use a owns property to reference one of its pathways. In like fashion, that Pathway instance could reference its owner via ownedBy - as illustrated in the JSON-LD code snippet in the following section.

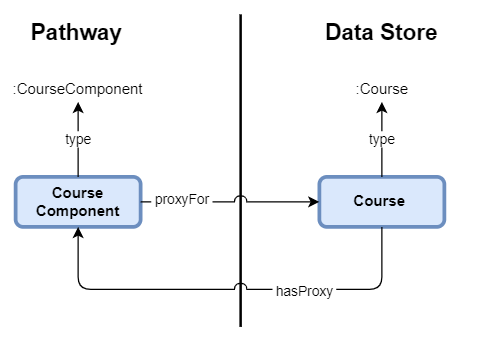

The PathwayComponent (and its subtypes) are stand-ins or proxies for actual resource descriptions that may or may not exist in some web accessible repository. For example, a Course Component entity in a pathway is a proxy for a canonical resource description of a Course in an accessible data store on the Web. This separation of the canonical resource description from its proxy in a pathway makes it possible to include pathway-specific attributes in the proxy that are not present in the canonical resource description. The following diagram illustrates the relationship between the pathway-specific description and the canonical description using the proxyFor and hasProxy properties.

Pathway Expressions

A Pathway Expression is an informal notion of a machine actionable encoding of either a single Pathway or an aggregation of logically related Pathways (a PathwaySet) defining alternative paths that are bound together in a single expression.

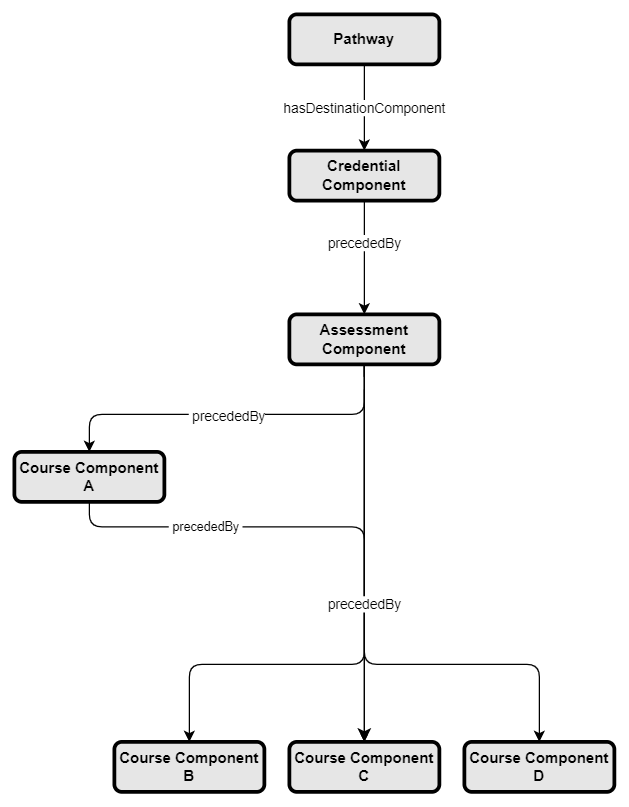

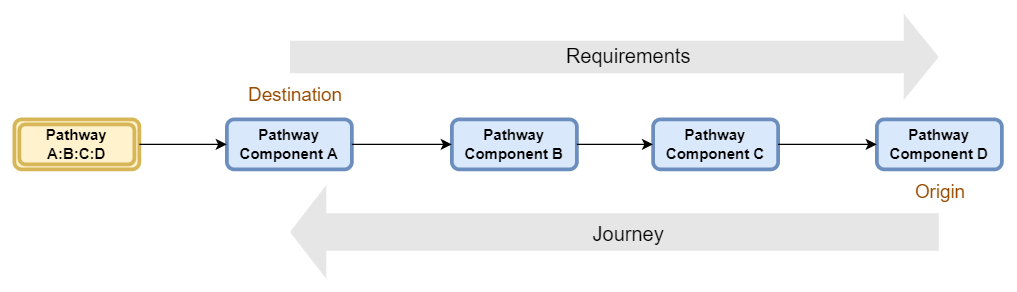

As defined, the basic building blocks of a Pathway form an (RDF) directed graph as illustrated by the following figure where we see a Pathway pointing to a Pathway Component identified as the destination milestone or root node of the pathway (e.g., a bachelor degree in nursing) and a set of preceding Pathway Components defining earlier milestones back to an origin (e.g., a high school diploma).

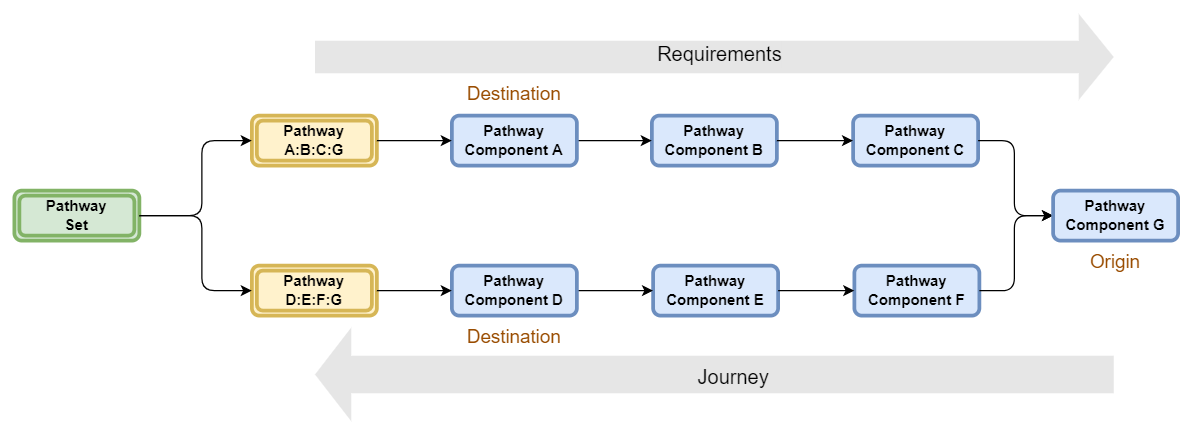

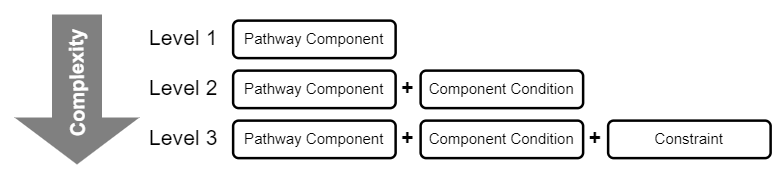

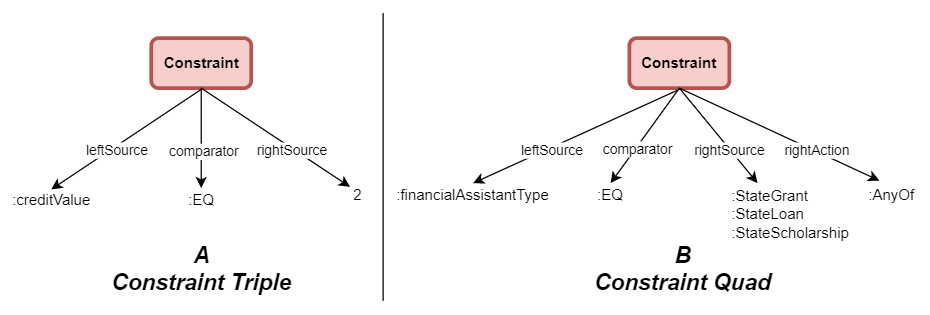

However, a Pathway Expression may describe more complex circumstances such as alternative paths to the same destination, or a destination may be more diverse - e.g., a career cluster or a more general destination such as programming and software development. A PathwaySet may provide multiple routes from a single origin to a single destination, multiple routes from a single origin to multiple destinations or multiple origins to a single destination. A pathway set may also express multiple paths that cross-connect providing lateral movement as part of the journey from origin to destination. The next two figures illustrate instances of PathwaySet.

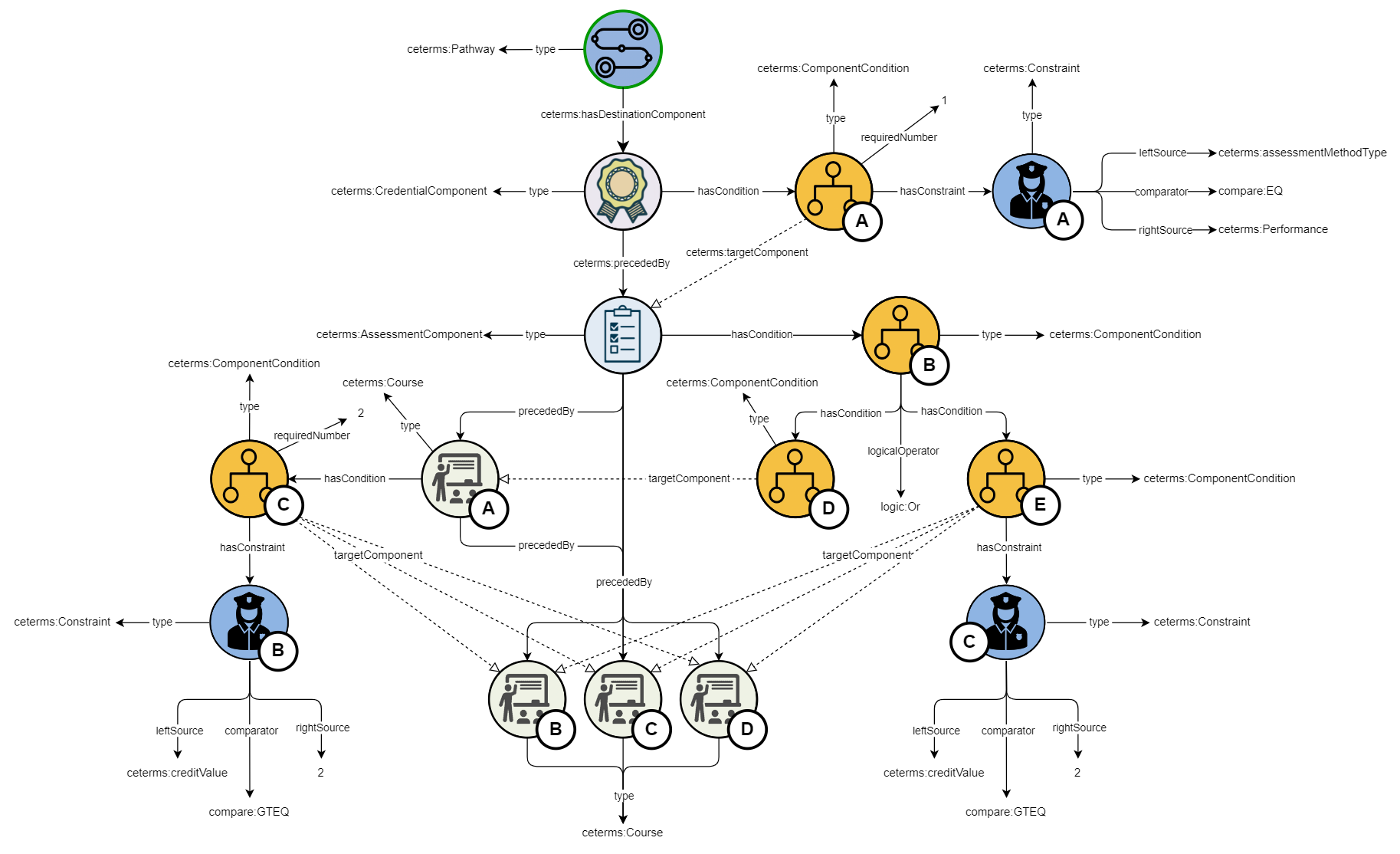

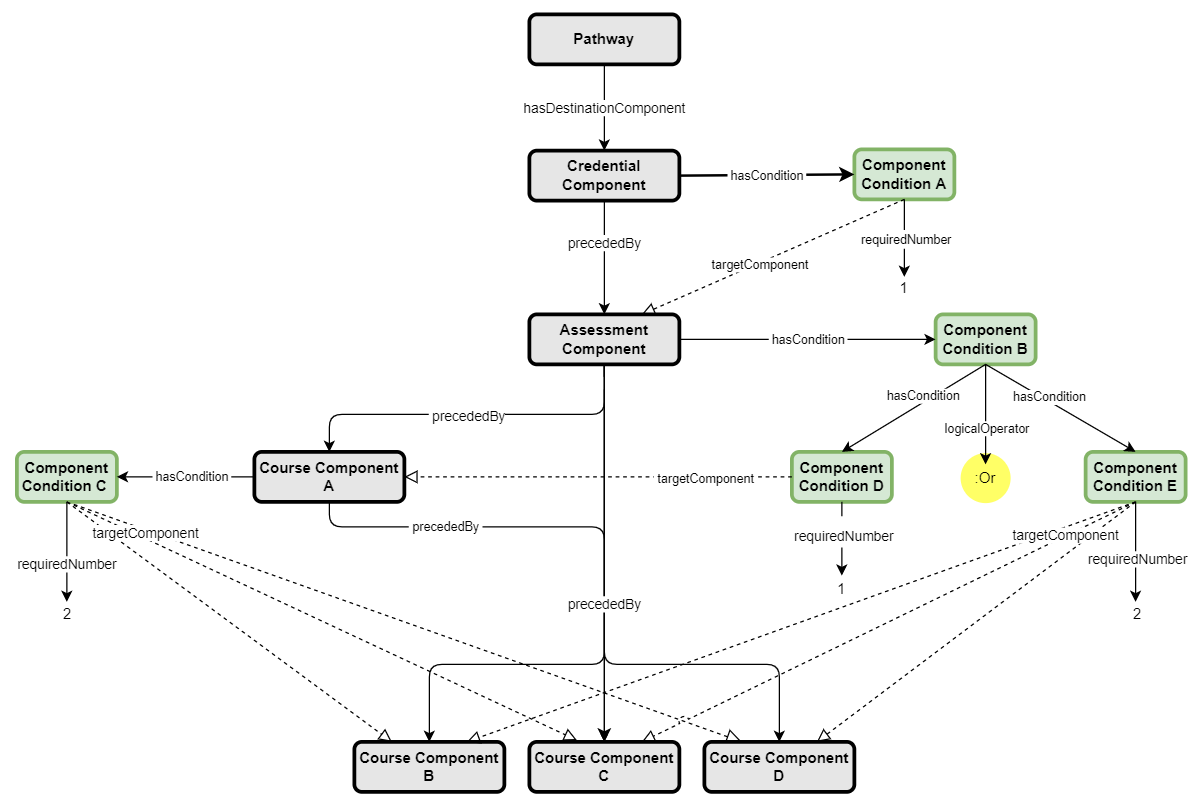

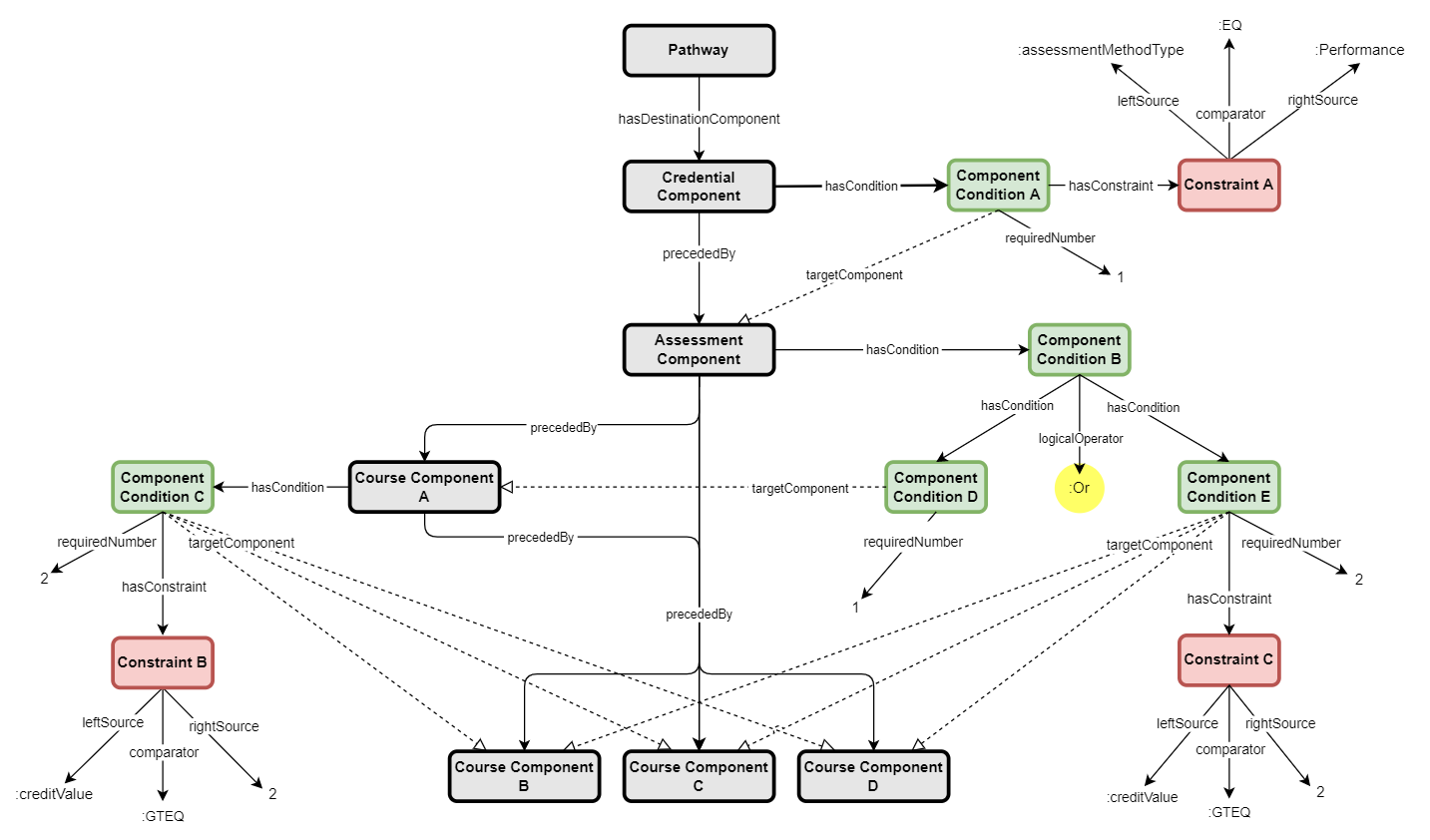

The following figure illustrates a pathway modeling of alternative paths to the same destination.

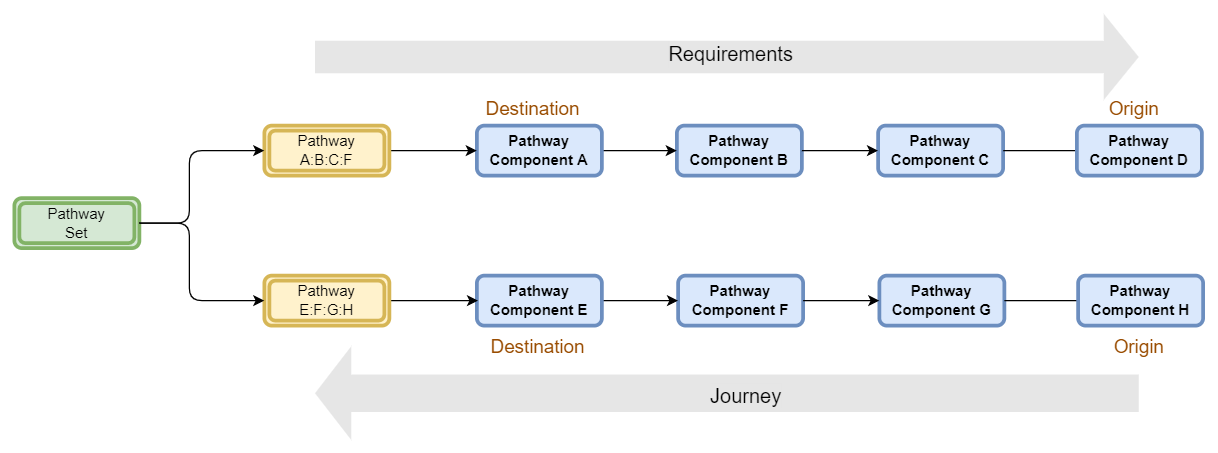

Pathways may also be logically aggregated into Pathway Sets (sometimes called roadmaps) with no intersections as illustrated in the following figure:

Pathways support a variety of use cases, such as:

• Education & Career Planning
• Support students and workers search and plan for career pathways including pathway options through stackable and latticed credentials and career clusters.
• Credential Discovery
• Find one or more types of credentials that best meet a person’s career and/or education goals along career and education pathways that provide the:
• Best transfer value for credentials they have already earned
• Potential to stack and build on other credentials
• Education & Career Transitions
• Identify education and career paths or progressions based on:
• Degree of transfer value
• Potential to stack and build on other credentials
• Competency Analysis
• Identify education and career paths in terms of the competencies that they require
• Represent current achievement of desired competencies based on competency alignments of held credentials
• Discover relevant credentials for each competency on a pathway/job profile from multiple providers

Levels of Expressivity and Complexity

The CTDL pathways specification enables the description of pathways at three levels of expressivity depending on the needs of the pathway creator. Movement from Level 1 through Level 3 expressivity is accompanied by increased levels of complexity as instances of ComponentCondition and Constraint are added to the PathwayComponent. In essence, the more expressivity, the more complexity. The following figure illustrates the three levels and the relationship of the PathwayComponent being described to ConditionComponent and Constraint.

To illustrate these levels and to provide a framework for the subsequent sections, we will use a relatively simple example of a credential pathway that is earned by passing a performance assessment. There are alternative paths for qualifying a person to sit for the assessment:

• Alternative One: Successfully complete two out of three substantive courses (CourseComponent "B", CourseComponent "C", and CourseComponent "D") that must all have a credit value greater-than-or-equal-to "2"; or
• Alternative Two: Successfully complete an assessment preparation course (CourseComponent "A") and two out of three substantive courses (CourseComponent "B", CourseComponent "C", and CourseComponent "D") that must have a credit value greater-than-or-equal-to "2".

Level 1: Pathway Skeleton

Level 1 is the simplest level of complexity and provides the minimum level of expressivity. Using our transit map analogy, this level identifies the station-stops and the route that ties the point of entry to the destination. As shown below, this basic skeleton structure is very useful in setting the stage for viewers of the pathway since they can identify the points of achievement and the progression through those points to the journey’s Credential destination. Depending on an organization’s use cases, the skeleton’s Level 1 expression may be sufficient.

Read from the top to bottom, Figure 10 illustrates the requirements of our example pathway where the CredentialComponent is earned by successfully completing a performance Assessment. The meanings of the labeled arrows (arcs) in the figure are relatively intuitive; but are defined in Table 2.

While the skeleton gives us a general sense of the pathway, it leaves unstated how we are to interpret the positioning of CourseComponent "A" outside the strong vertical axis of the figure. The pathway’s notion of "alternative" is graphically present but not coherently expressed. Also unstated are certain constraints including the performance type requirement of the AssessmentComponent and the requirement that the CourseComponent entities must all have a credit value greater-than-or-equal-to "2". The notion of the example credential’s alternatives will be concretely expressed in Level 2 and the constraints in Level 3.

Level 2: Component Conditions

Since the expressivity levels of the pathway build on each other, Level 2 in Figure 11 includes the Level 1 skeleton and adds five ComponentCondition instances in green. The function of the ComponentCondition is to define:

1. Required Number:
1. The required number of PathwayComponent entities to select from an array of candidate PathwayComponent entities identified via the targetComponent property - e.g., "select 3 out of 5"; and/or
2. Optional Constraints on Candidate Pathway Components:
1. One or more Constraint instances that must be satisfied by each candidate PathwayComponent entity based on specific attributes and values in those candidate descriptions; and/or
2. Complex constraints using nested ComponentCondition entities that can be combined by using logical operators such as "Or", and "And".

With functions 2a and 2b, and ComponentCondition nesting, relatively complex selection rules can be expressed that can inform machine processing as well as provide sentential or phrasal (pidgin) descriptions of a Constraint to end users.

A ComponentCondition may reference one or more ComponentCondition instances supporting the nesting of constraints as noted above. The form of these more complex expressions are identified in the figure below with ComponentCondition "B" on the AssessmentComponent instance that nests ComponentCondition "D" and "E" using the hasCondition property.

With the exception of CourseComponent "B", "C" and "D" at the bottom of the figure, all other PathwayComponent instances have at least one hasCondition property relating it to an instance of ComponentCondition. ComponentCondition instances describe the requirements for selecting from the array of one or more PathwayComponent instance subclasses identified by the targetComponent property. For example, the CredentialComponent uses the hasCondition property to identify ComponentCondition "A" that defines the requirement for satisfying the CredentialComponent. ComponentCondition "A" has a requiredNumber property with a value of "1" indicating that the CredentialComponent is satisfied by selecting one AssessmentComponent instance identified via one or more targetComponent properties. Since ComponentCondition "A" identifies only one AssessmentComponent via the targetComponent property, the condition requires selecting "1 out of 1" AssessmentComponent instances.

Following the same pattern, the AssessmentComponent references ComponentCondition "B" using its hasCondition property. Unlike ComponentCondition "A", ComponentCondition "B" references two nested conditions - ComponentCondition "D" and ComponentCondition "E" using the hasCondition property. In addition, there is a yellow circle in Figure 9 accenting the value "Or" for a logicalOperator property indicating that the student must choose either ComponentCondition "D" or ComponentCondition "E":

1. If the student choice is ComponentCondition "E", he or she must complete 2 Course Component instances (requiredNumber) from the array of 3 candidate instances identified with the targetComponent property - i.e., select 2 courses out of the "B", "C", "D" array of CourseComponent instances.
2. If, instead, the student chooses ComponentCondition "D", he or she must complete the exam preparation CourseComponent "A" that also requires selecting and successfully completing 2 (requiredNumber) courses out of the "B", "C", "D" array of CourseComponent instances.

Level 3: Constraints

Level 3 builds on Level 2 by adding Constraint instances to the example using the hasConstraint property on ComponentCondition instances as illustrated in the following figure.

While the ComponentCondition instances in the figure each have a single Constraint, they may each have two or more Constraints as seen in the Logical Constraints section.

Constraint "A" defines a single requirement that the AssessmentComponent identified by the targetComponent of ComponentCondition "A" must satisfy. The requirement here is that the target AssessmentComponent must have an assessmentMethodType of "Performance".

ComponentCondition "C" and "E" are identical and require the student to select two courses (requiredNumber) from the array of candidate CourseComponents "B", "C", and "D". Constraint instances "B" and "C" require each course in the target array to have a creditValue greater-than-or-equal-to "2".

The atomic structure of the Constraint class is a triple with leftSource, comparator and rightSource properties enabling sentential or phrasal (pidgeon) statements of a Constraint instance for use by both machines and humans in a manner similar to W3C’s RDF statement structure of subject, predicate and object. The Constraint data structure is "atomic" since a statement is incomplete without a subject (leftSource), a predicate (comparator), or an object (rightSource). An example of this triple structure is illustrated below stating in "A" that a creditValue must be greater-than-or-equal-to "2".

Part "B" defines a Constraint quad in which multiple values of the rightSource property financialAssistanceType ("StateGrant", "StateLoan" and "StateScholarship") have been qualified through application of the action anyOf meaning that the Constraint is satisfied by any of the enumerated financial assistance types.

Logical Operations

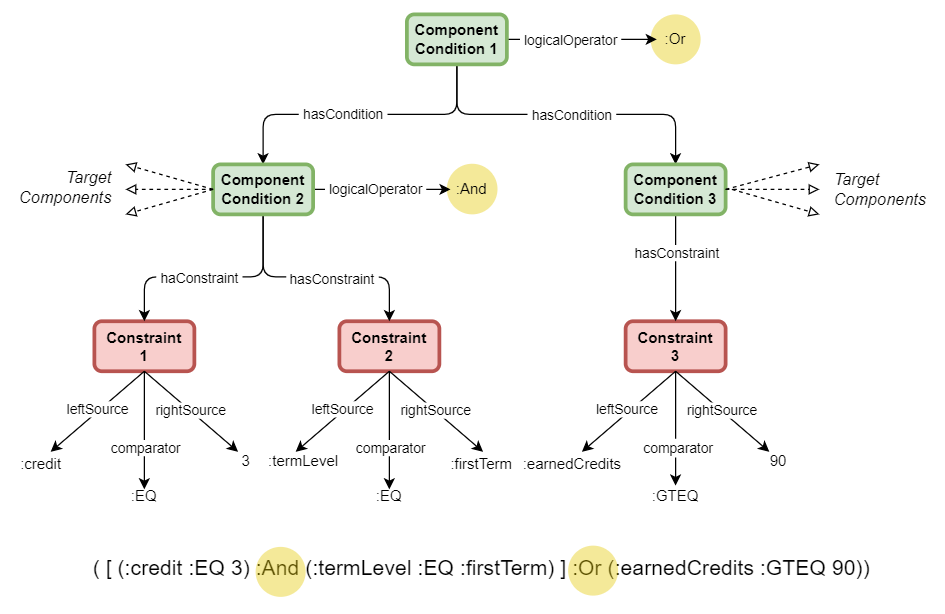

It is frequently necessary to relate ComponentCondition entities and Constraint entities using logical operators such as "and" and "or". Logically relating both ComponentCondition entities and Constraint entities can be seen below.

ComponentCondition "1" uses the logicalOperator "or" to define alternative conditions between ComponentCondition "2" and ComponentCondition "3". ComponentCondition "2" uses the logicalOperator "and" to relate Constraint "1" and Constraint "2". The result is then related to Constraint 3 via the "or" value on ComponentCondition "1".

Complete Pathway Diagram

Use of Progression Models in Pathways

Progression Models (covered fully in the section below) may be used under certain circumstances to establish the progressions of a pathway. When a ProgressionModel is used, the hasProgressionLevel property on the PathwayComponent subtype associates it to a particular ProgressionLevel concept in the model. Use of the precedes and precededBy properties on the ProgressionLevels defines the direction of the progression.

A Progression Model may not be used if any ProgressionLevel in the progression requires the use of a ComponentCondition. In such a case, the BasicComponent should be used for the level to particularize the component (e.g., "Semester 1") since it supports the application of ComponentCondition and Constraint types using via the components hasCondition property.

In cases where either a Progression Model or Basic Component to establish a progression is applicable - i.e., there are no ComponentConditionconstraining the component- defaulting to the use of ProgressionModel is recommended.

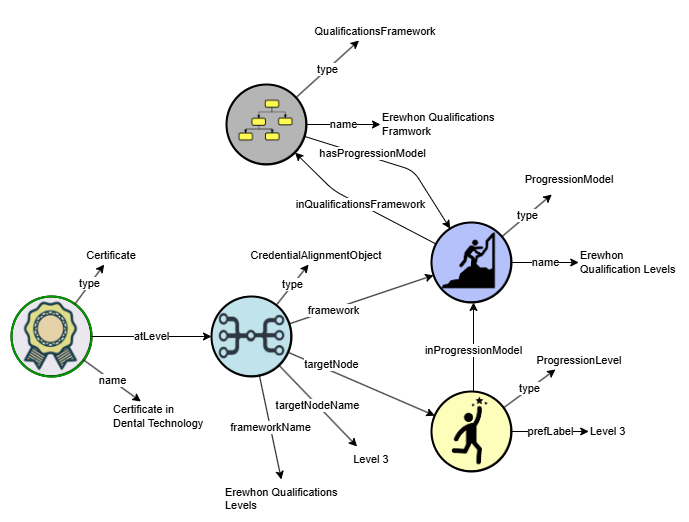

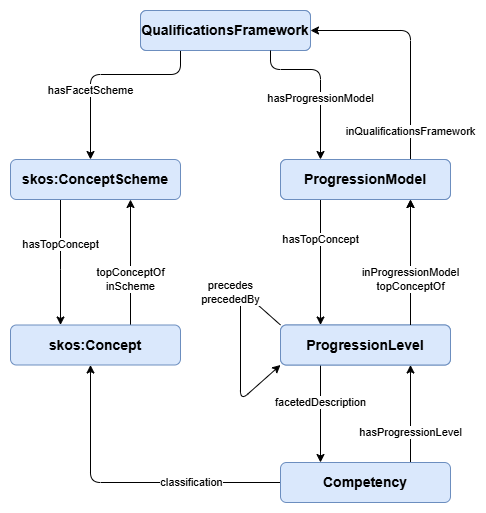

Progression Model and Progression Level

A ProgressionModel formally defines points along a developmental progression such as increasing levels of competence, complexity, or achievement in a schema. For example, an assessment rubric may define a set of criteria that must be achieved while providing an array of levels denoting different degrees of accomplishment with accompanying scores for each level. Such descriptions are of the class Progression Model. The following figure illustrates a simple example of a progression model - "Beginner", "Intermediate", "Advanced", "Expert" - in an imaginary pathway roadmap.

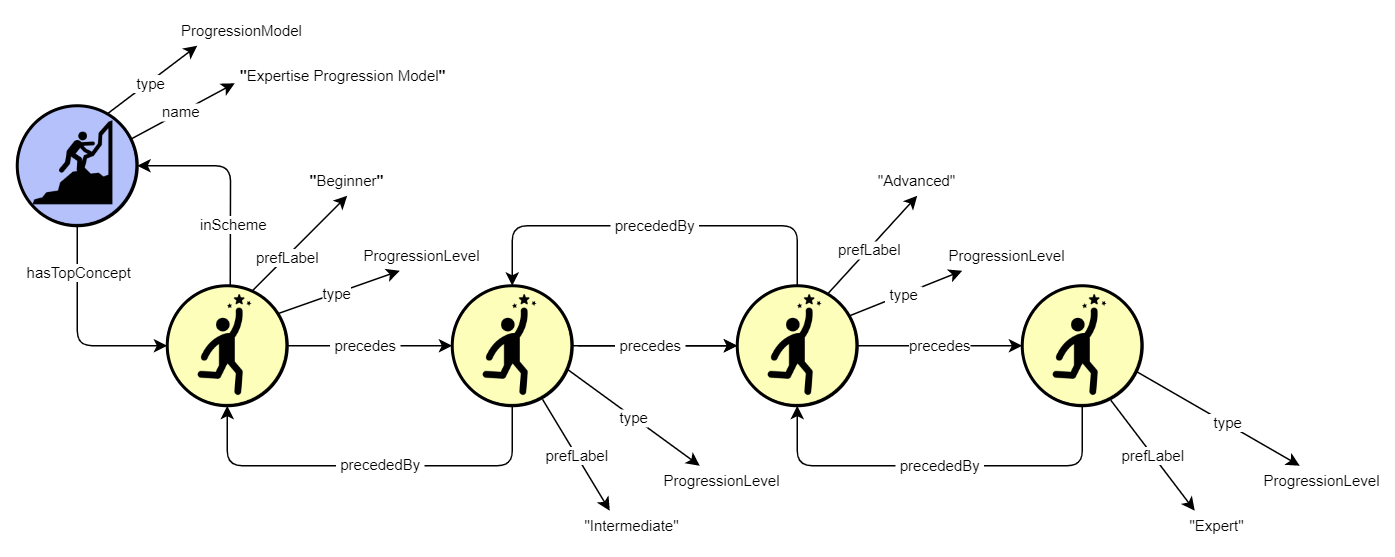

Simple Progression Model

Progression models themselves are being defined at various levels of complexity. The graphic above is a simple example of a progression model. However, not all progression models are simple. Below are two images of a progression model used in the European Commission's EntreComp (Entrepreneurship Competency Framework). The first image presents a slightly incomplete statement of the model circled in green in the context of the competency framework. The second image is of the complete progression model (note that the Commission calls it a "progression model").

Support Service

A Support Service describes a service or set of services intended to support the efforts of someone who is pursuing a credential, program, course, or other resource. Support Services are primarily intended to enable equal access for all participants, and usually consist of some combination of:

• Academic and/or Career guidance, counseling, Job information/placement, and related informative services
• Physical features of or modifications to facilities, particularly for individuals with disabilities or other needs
• Adaptive technologies or alternative offerings of resources and media to maximize its usefulness to all individuals
• Physical, mental, and/or behavioral healthcare and therapy
• Provision of tangible resources, such as housing, clothing, food, work equipment, and learning resources
• Temporary, periodic, and/or crisis relief services, including care for children or other family members
• And many more - see the Support Service Category and Accommodation Concept Schemes for more comprehensive lists

Support Services may be broad and high level (such as a general description of services provided by an organization) or granular and specific (such as a list of particular services offered during a particular instance of a particular course at a particular location along with an indication of the audience to which those services are available) or anywhere in between.

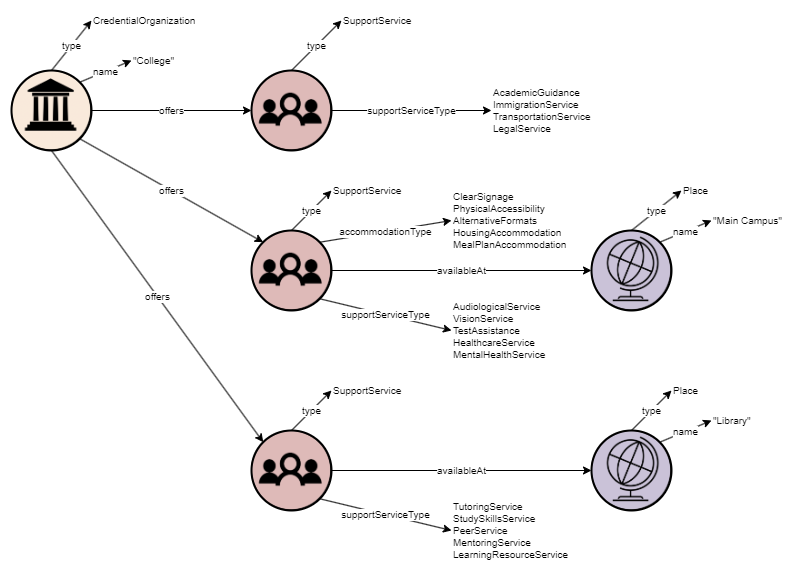

Simple Support Service example

The Support Service class leverages connections to a number of other CTDL classes to contexualize itself to a degree appropriate for the available information. In the diagram below, several instances of Support Service appear at different levels of specificity in order to describe different kinds of support available for each of those resources. In particular, note:

• The usage of Condition Profile to describe the applicability of a given Support Service to a particular audience
• Three of the Support Services are offered by the "Support Agency" organization in the center of the diagram, even though they are referenced from other resources offered by the "College" organization on the left side of the diagram
• The usage of Schedule Offering to limit the scope of a Support Service to a particular offering of a Course

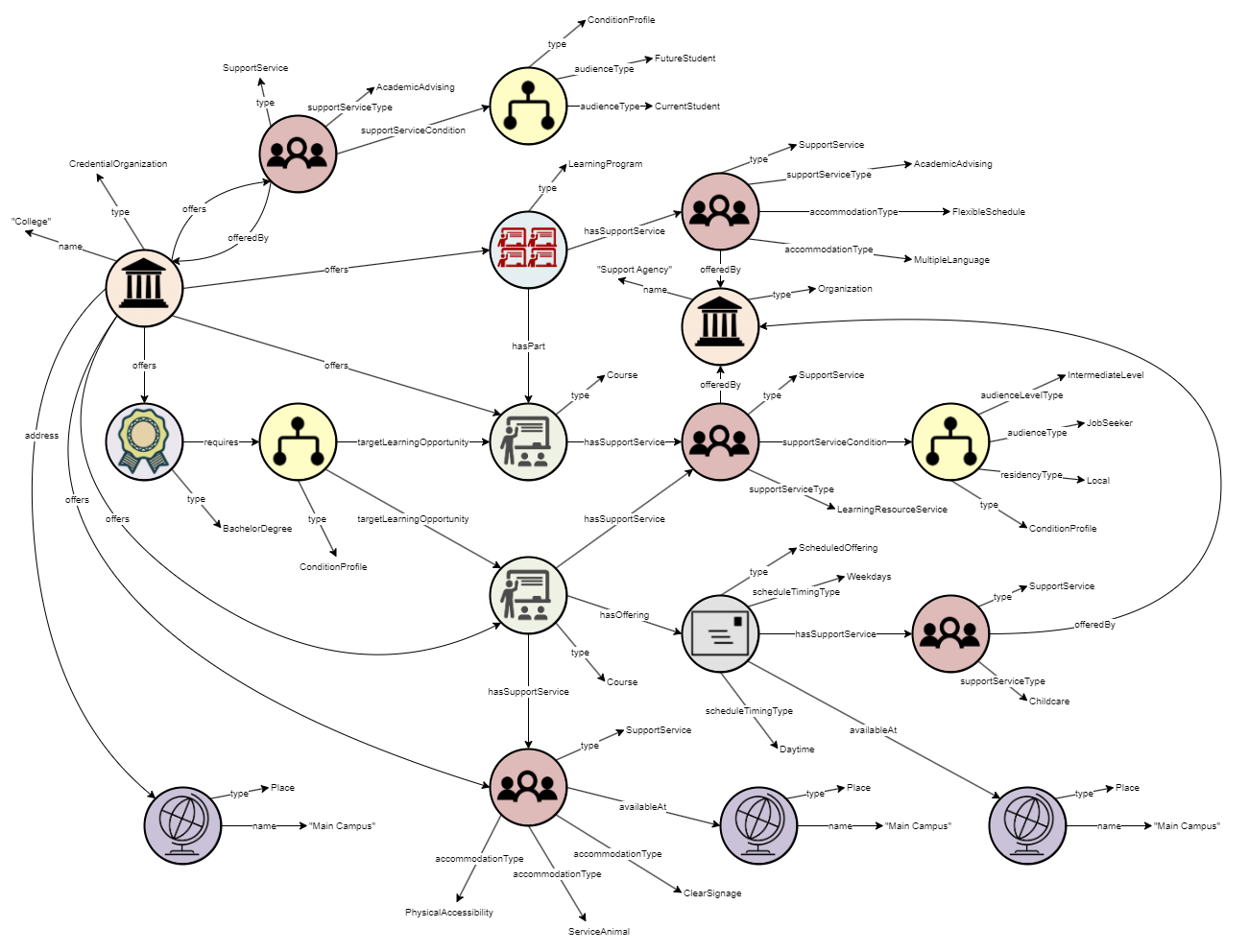

Complex Support Service example

In addition to the above, the hasSupportService property can be used to construct a hierarchy of Support Service instances, enabling another way to describe services at the appropriate level of specificity. The example below shows one overarching support service with a number of more specific services underneath it, even though one of them is offered by a separate agency.

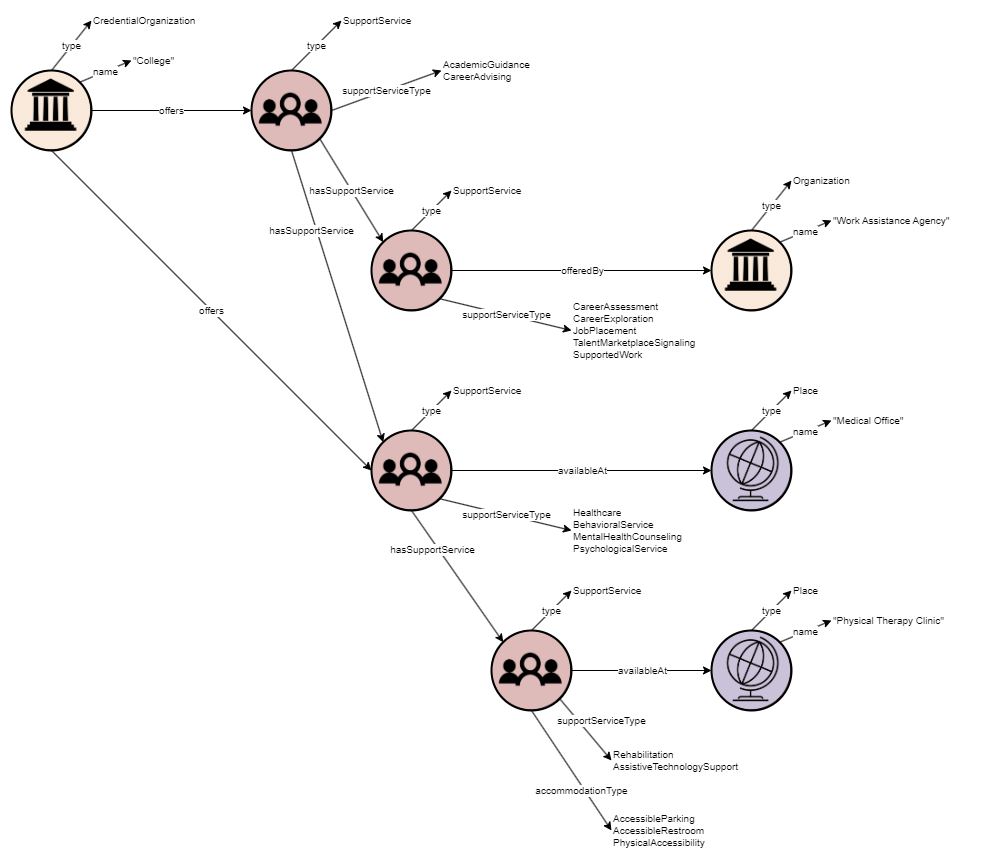

Hierarchical Support Service example

Manifest Classes

While classes like ConditionProfile and CostProfile are useful for describing particular credentials, there are frequent circumstances where many credentials share the same data (in whole or in part) for these classes. As such, it would be redundant to repeat this data in the records for each credential, and incur a maintenance penalty any time the data (such as the tuition costs for a college program) changes. To help solve this problem, CTDL provides a set of "manifest" classes that enable multiple credentials to reference the same data for conditions and/or costs. These manifest classes have their own URI and contain their own profiles.

When consuming the data from a manifest class, it should be treated as though it were part of the relevant credential's data (with data in the actual credential record taking priority in the event that manifest data conflicts with credential data). In other words, you would, for example, combine the cost profiles described by a manifest (such as base tuition fees that apply across an institution) with the cost profiles that are part of a particular applicable credential (such as unique learning resource fees specific to that credential) in order to determine the full set of cost information for that credential.

Condition Manifest

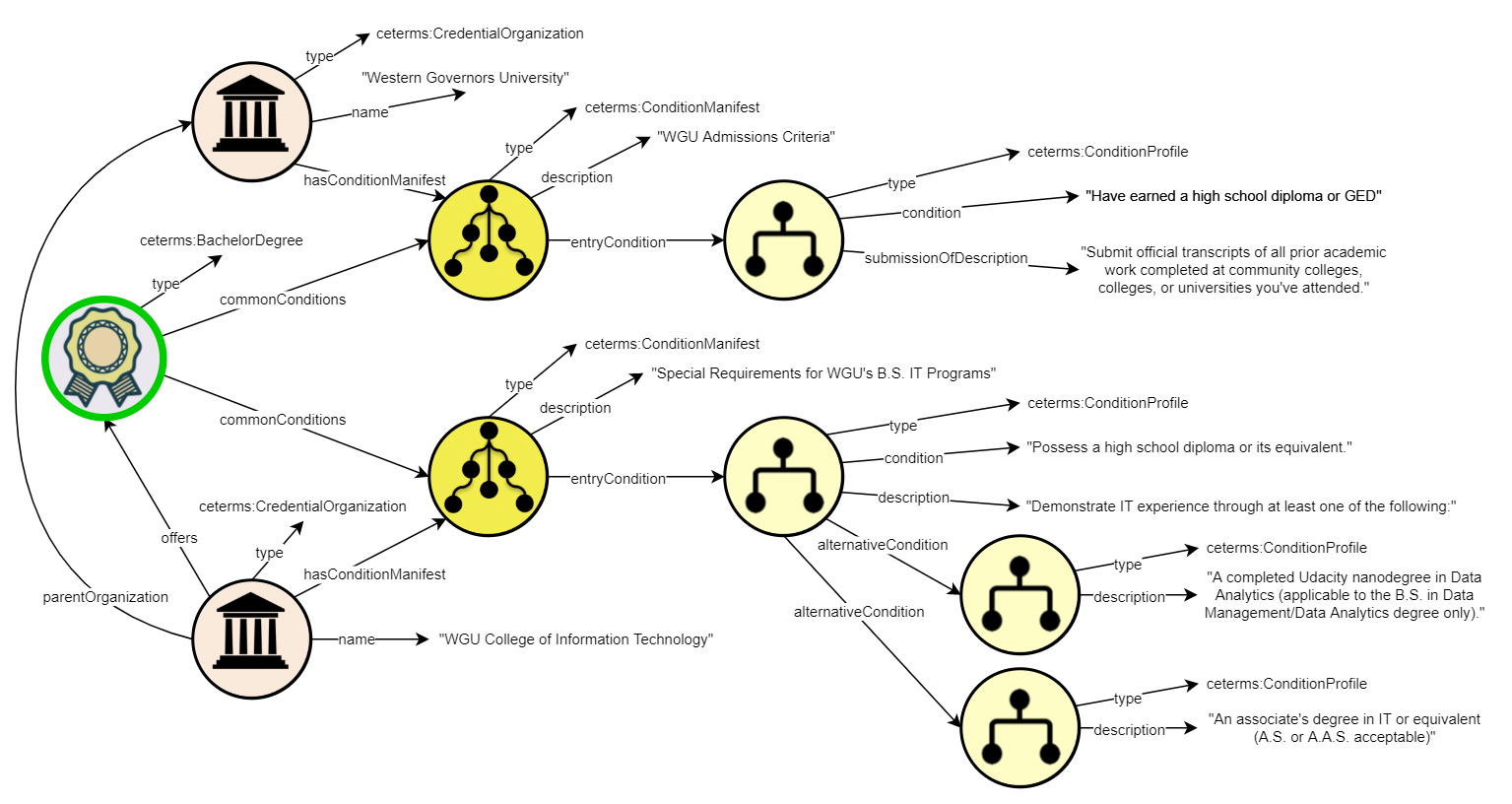

The ConditionManifest class addresses the description of institution- or program-wide condition sets. In the figure below, we see Western Governors University and its College of Information Technology. Each of these entities has a ConditionManifest. While the College has its own ConditionManifest, it shares the University’s ConditionManifest as required commonConditions.

The College offers a bachelor's degree that is subject to the College’s ConditionManifest, and, indirectly, subject to the requirements of the University’s ConditionManifest. While not illustrated here, the bachelor’s degree can have a ConditionProfile containing conditions not covered by either controlling ConditionManifest. Thus, the degree has a cumulative set of conditions:

• unique conditions peculiar to itself
• its College's conditions
• its University's conditions

Figure 2.2.6A

Parent and sub-organization, each with condition manifests

Cost Manifest

The CostManifest class addresses the description of institution- or program-wide costs.

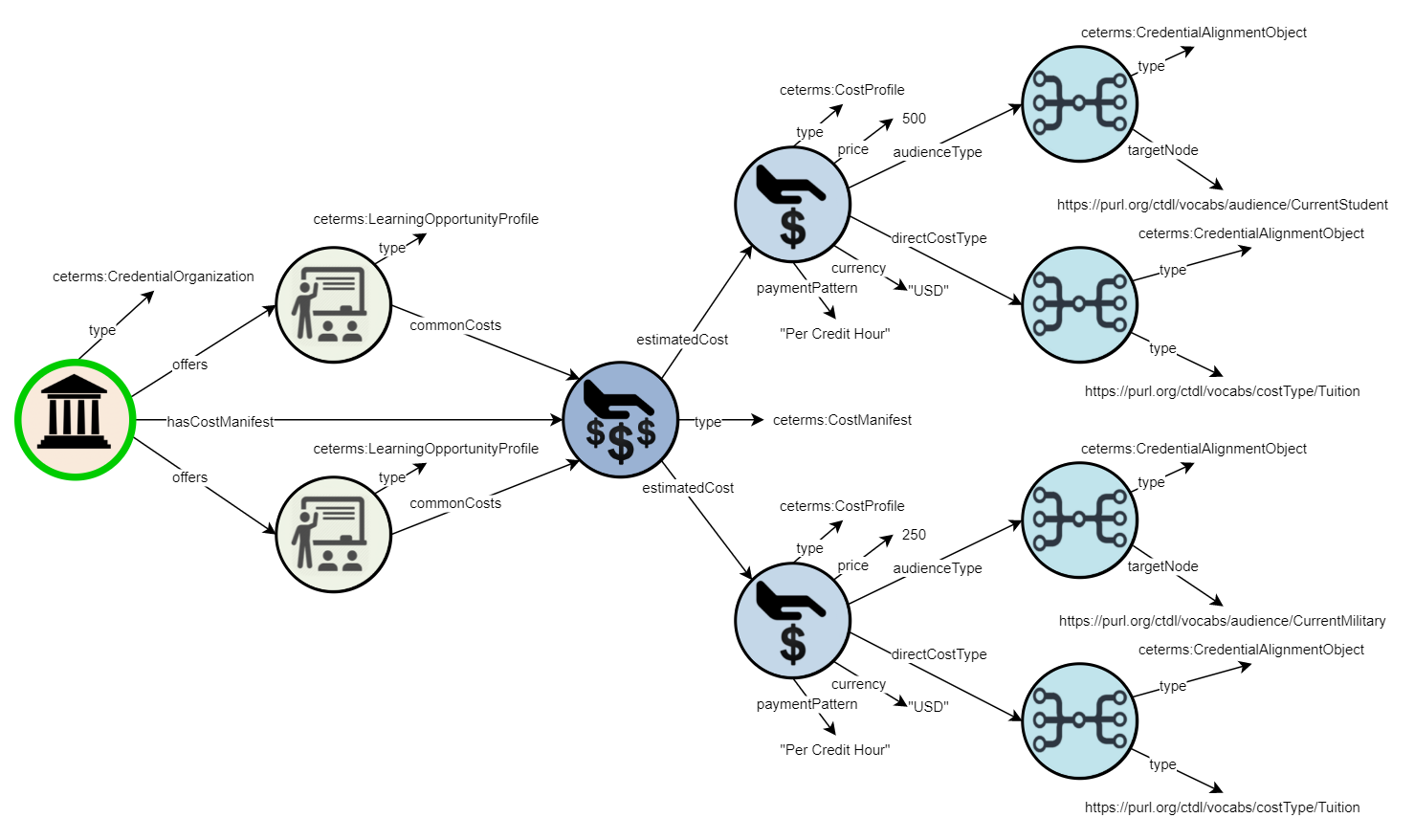

Figure 3.1.2A

Brandman University example of a cross-program Cost Manifest.

Transfer Value

Now more than ever, people need to be able combine education, training and learning from multiple sources in order to continuously re-skill and upskill in rapidly changing careers. CTDL has the advancedStandingFrom property to represent advanced standing, which can express that a credential, assessment or learning opportunity may provide someone with a "head start" on the way to another credential. However, advanceStandingFrom doesn't give a way of saying how much of a head start.

In order to specify a value and other details about how learning achievements from one context can be applied to other contexts in order to further education and career advancement CTDL has TransferValueProfile and associated classes. The most familiar scenario in which this happens is the transfer of credit earned in courses from one provider towards a credential offered by another organization, however the CTDL enables many other forms of "value" than traditional credits, and recognises that this value may come from learning experiences other than courses and formal education. In order to represent this potential transfer of value in CTDL several classes and properties previously described (such as CredentialOrganization, LearningOpportunityProfile, Assessment, Competency, Credential and others) are used along with classes that represent the value being transferred (the ValueProfile) and how this value may be transferred (the TransferValueProfile).

States and other organizations form agreements where groupings of learning opportunities (usually courses) are determined to have equivalent transfer values based on criteria such as learning outcomes, levels, and combinations of labs and courses. The groupings are organized via an intermediary. The CTDL Transfer Intermediary Class is for articulated transfer values when there are many learning opportunities (e.g., courses) that have equivalent transfer values.

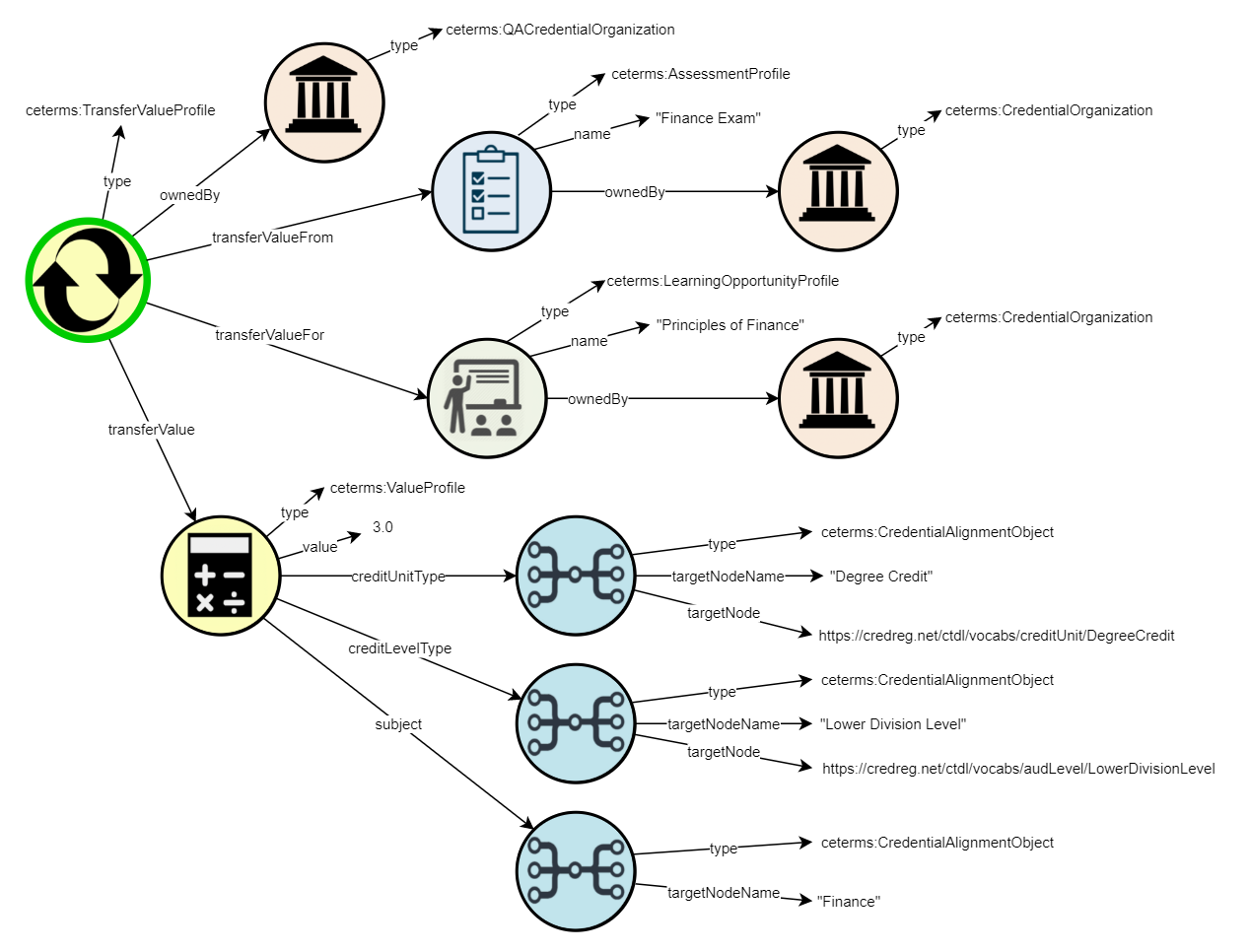

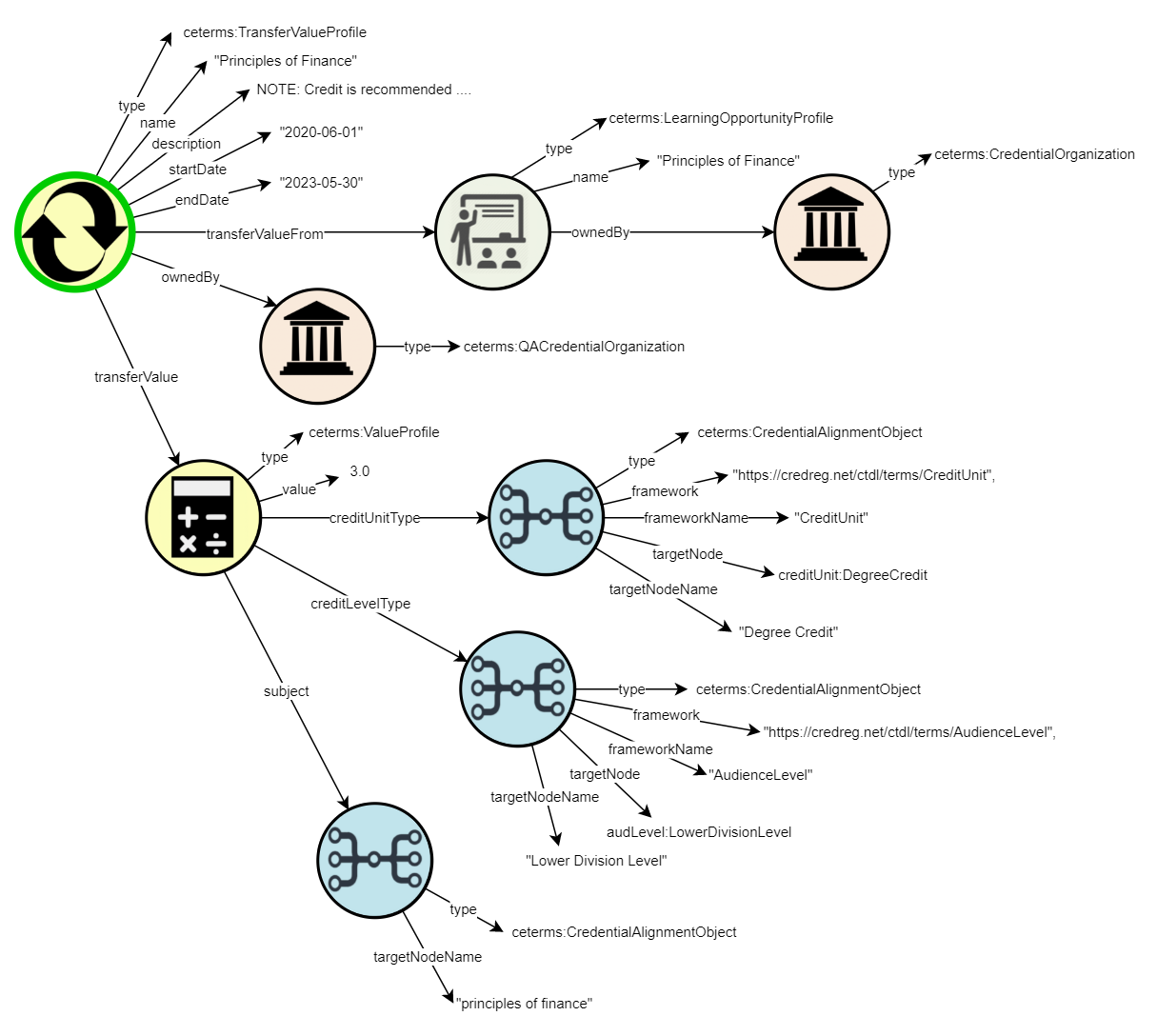

The following model shows the basic parts of a Transfer Value Profile. For a more detailed example, click here.

Figure 5.0A

Transfer Value Profile Simplified Domain Model

Transfer Value Profile

A TransferValueProfile represents how value can be transferred from one form of learning to be recognized in another context. As a description, a TransferValueProfile will be owned by an organization, which may be independent of the organizations offering the forms of learning between which the value is transferred. The properties of a TransferValueProfile are listed below, some of which are illustrated in this example.

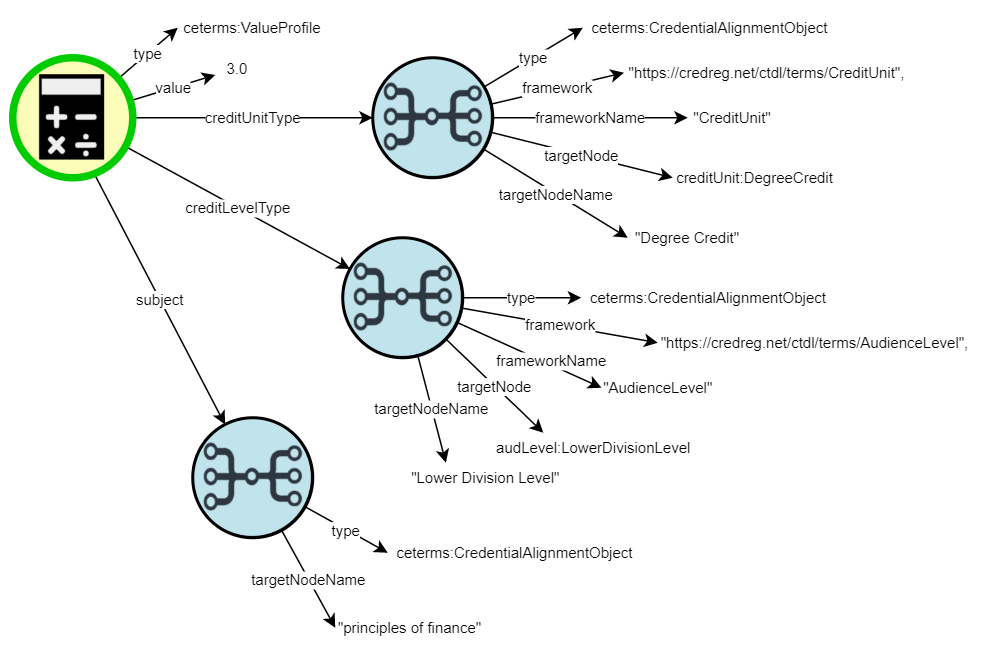

Value Profile

The amount of value or range of values being transferred is represented by the ValueProfile class. This will normally include the numerical value and, optionally, an indication of the creditUnitType and/or creditLevelType. CTDL provides a CreditUnit concept scheme that can be used to specify the creditUnitType, and reuses the AudienceLevel concept scheme to indicate the creditLevelType.

Value Profile

Sometimes the value being transferred is represented as a percentage of the value required for the form of learning to which it is being transferred; the most common use case for this is when the learning from which the value is transferred is worth 100% of what is required for the thing to which it is transferred. Where the value is only valid for a specific subject, this too can be noted. This example shows that the learning opportunity from which value may be transferred is worth 3 Degree Credits at the Lower Division Level for the subject of "principles of finance".

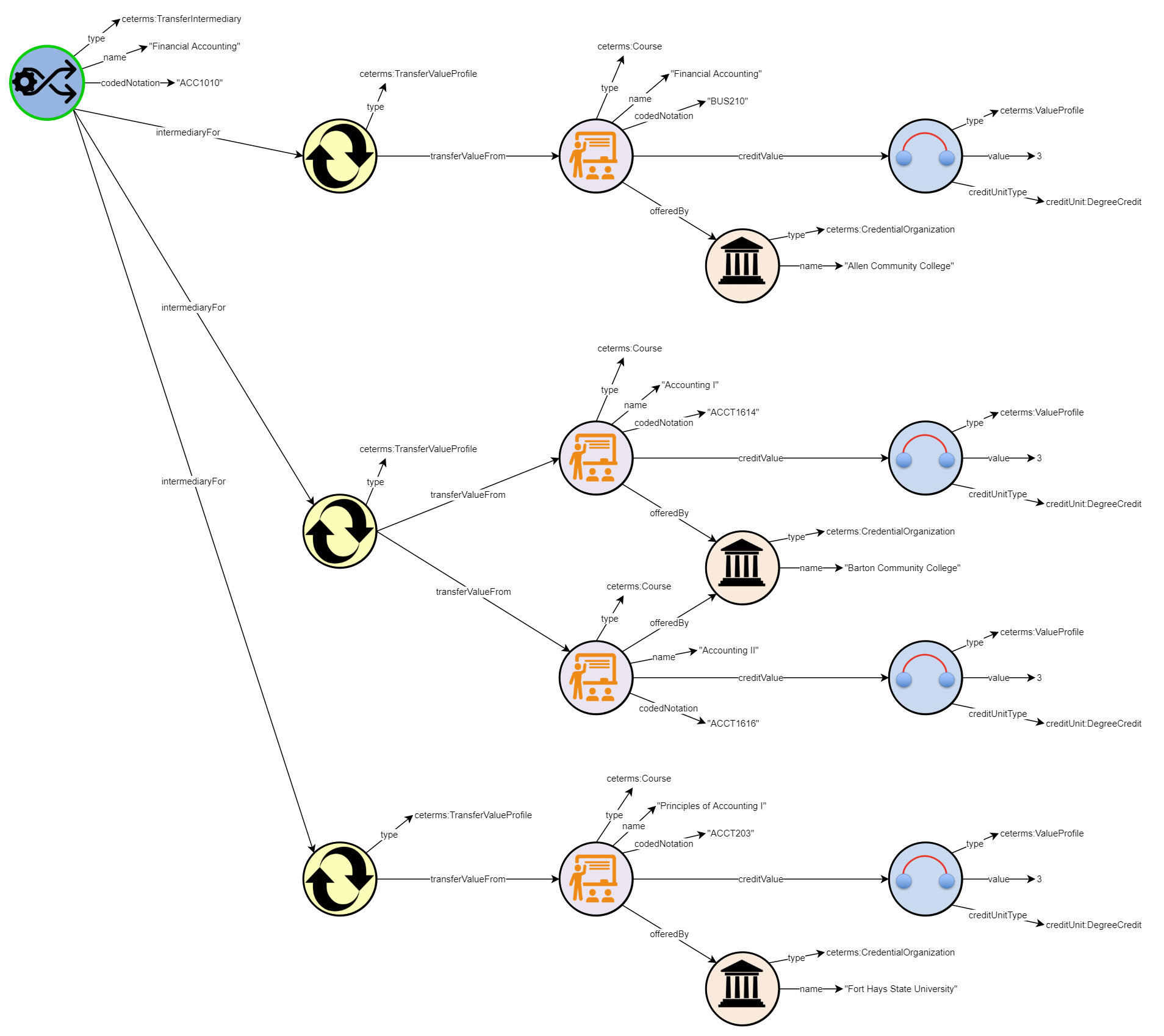

Transfer Intermediary

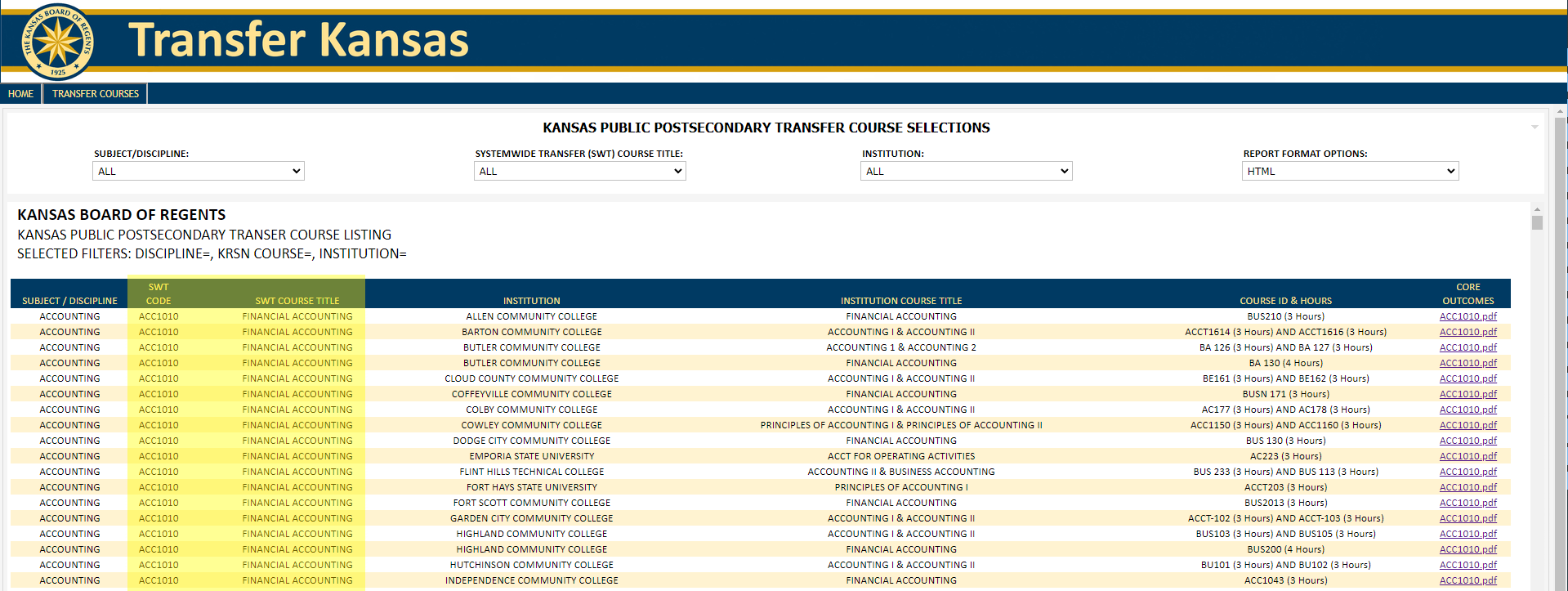

States and other organizations form agreements where groupings of learning opportunities (usually courses) are determined to have equivalent transfer values based on criteria such as learning outcomes, levels, and combinations of labs and courses. The groupings are organized via an intermediary. For example, states including Kansas, Indiana, and Louisiana, use an intermediary to group courses that have an articulated transfer value together. The below example from the Transfer Kansas website shows a grouping of Accounting courses offered by multiple postsecondary institutions that have an articulated transfer value. "ACC1010" represents the intermediary for all accounting courses that have an articulated transfer value.

The example below is based on a selection of rows from the table above. Note: While this example attaches the ValueProfile to the Courses, data about credit value could also be attached to the TransferValueProfiles and/or to the TransferIntermediary itself to describe the credit value at different levels of granularity and more thoroughly describe its transferability.

Transfer Intermediary

Action Classes

The CredentialingAction class enables Quality Assurance Organizations (QACredentialOrganization) to describe "actions" sufficiently to support verification taken on credentials, learning opportunities, assessments, work roles and other entities in the CTDL model. Examples include:

1. Taking an action to describe the current demand level for an occupation
2. The quality rating for a learning opportunity such as the California Community College System’s "Strong Workforce Stars" program awards
3. The placement of an accredited program on probation pending satisfaction of certain requirements

Many of these sorts of action are time and geographically limited-e.g., a workforce demand action on an Occupation may be applicable in one geographic area starting on a specific date and not in another.

Different kinds of actions are expressed in the CTDL as distinct subclasses of CredentialingAction (see the list below). While simple, direct assertions of fact for most of these kinds of Credentialing Actions are available as RDF assertions (e.g., accredits, approves, revokes, etc.), these Credentialing Action subclasses support more detailed descriptions of actions taken where such detail is justified.

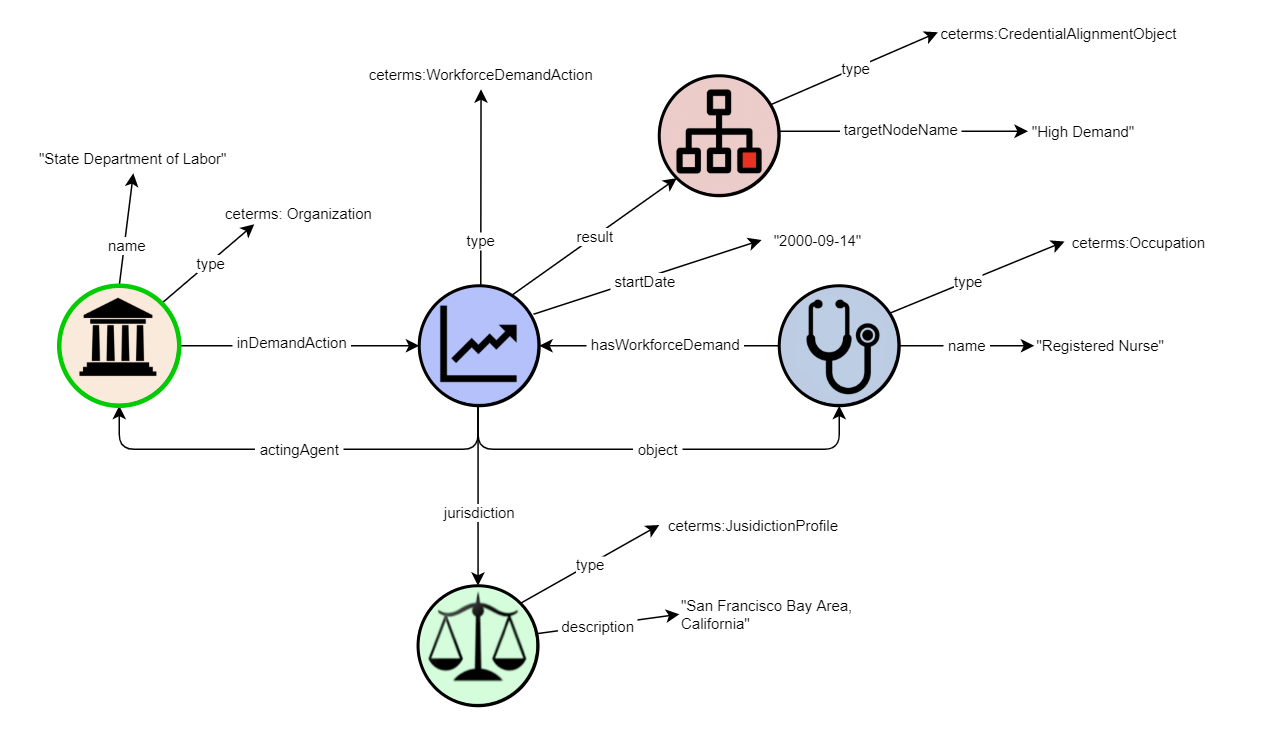

The following figure describes a State Department of Labor’s designation of an Occupation (Registered Nurse) as in demand in the San Francisco Bay Area as of September 14, 2000. (startDate). The State Department of Labor is the Agent of the action and the Occupation of "Registered Nurse" is the object of the action. Since there is no endDate, the action is ongoing. The object of an action may use the result property or one of its subproperties to directly reference the action taken as illustrated in the figure.

Figure

Workforce Demand Action

Since a Credentialing Action is an assertion by an organization that the organization has taken an action, creators of instances of the Credentialing Action subclasses (e.g., AccreditAction) should be limited to the agent performing those actions. There are adequate properties for an organization that has been accredited by a quality assurance organization to make that assertion by using the accreditedBy and similar properties relating it to the acting quality assurance organization without resorting to the use of the CredentialingAction subclasses.

Credentialing Action and its subclasses are defined as follows:

CTDL Support Classes

The CTDL Schema maintains a number of classes that support and enhance the data contained in its primary classes. Such "support classes" often appear as the values for multiple properties in various contexts across the schema. This section describes these classes.

Aggregate Data Profile

CTDL provides Aggregate Data Profile to describe summary outcomes data for credentials via the aggregateData property. Aggregate Data Profile combines properties from (and is intended to replace) Holders Profile, Earnings Profile, and Employment Outcome Profile.

Aggregate Data Profile is for high-level summary information. To describe more detailed information, use its relevantDataSet property to reference one or more instances of DataSetProfile as described in the QData Overview.

The following diagram illustrates aggregate data for an Associate Degree in 2017, including the holders of the credential, number of jobs obtained, earnings for those jobs, the applicable jurisdiction and demographic information, as well as a reference to a DataSetProfile containing more detailed information.

Note that the Data Set Profile is also capable of referencing the credential directly via the about property. This is useful in cases where two different parties are responsible for the data (i.e., one for the Credential and one for the Data Set Profile).

Aggregate Data for a 2017 Associate Degree

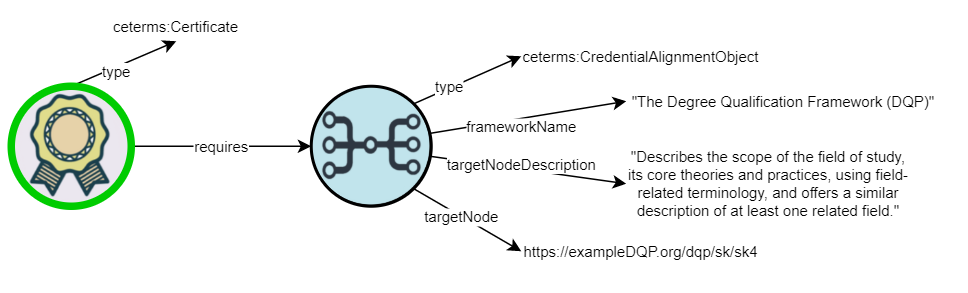

Credential Alignment Object

The CredentialAlignmentObject class is used throughout the CTDL to provide and/or reference values that may or may not exist in structured data sources, such as:

• Concepts in a concept scheme
• Competencies in a competency framework
• Educational subjects
• Items from an external data source, such as NAICS codes or SOC codes
• Anywhere else where such a value is necessary

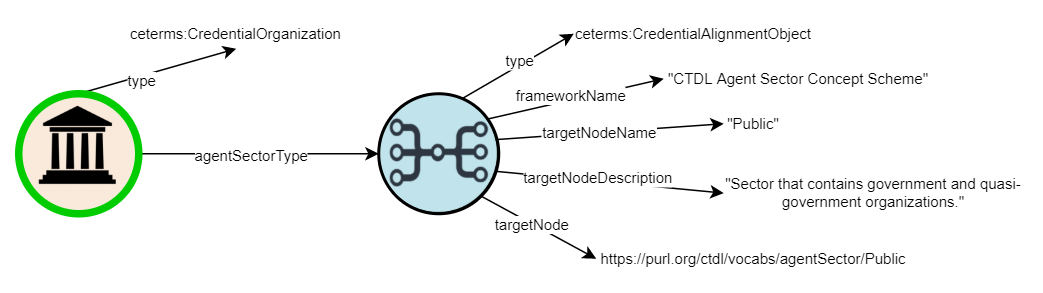

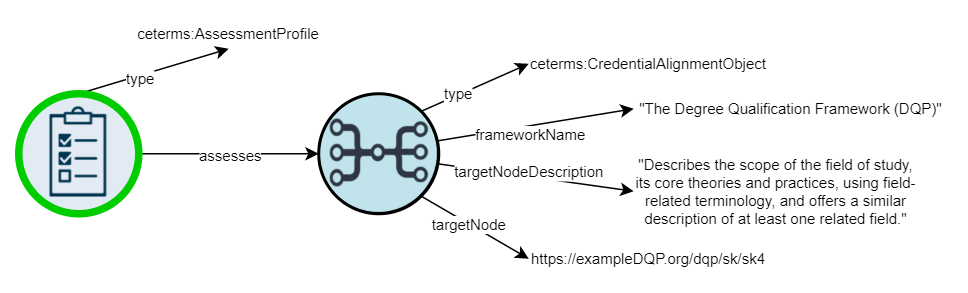

Where an external data source, such as a concept, exists, the CredentialAlignmentObject should reference it by its URI via the targetNode property. When no such source exists, the targetNodeName, targetNodeDescription, and codedNotation properties can provide data to stand in for one. In some cases, it is useful to provide both kinds of information, as this can save time (and HTTP calls) when consuming the data. However, doing so will increase the total size of the data and incur a maintenance penalty if the source data changes.

Credential Alignment Object

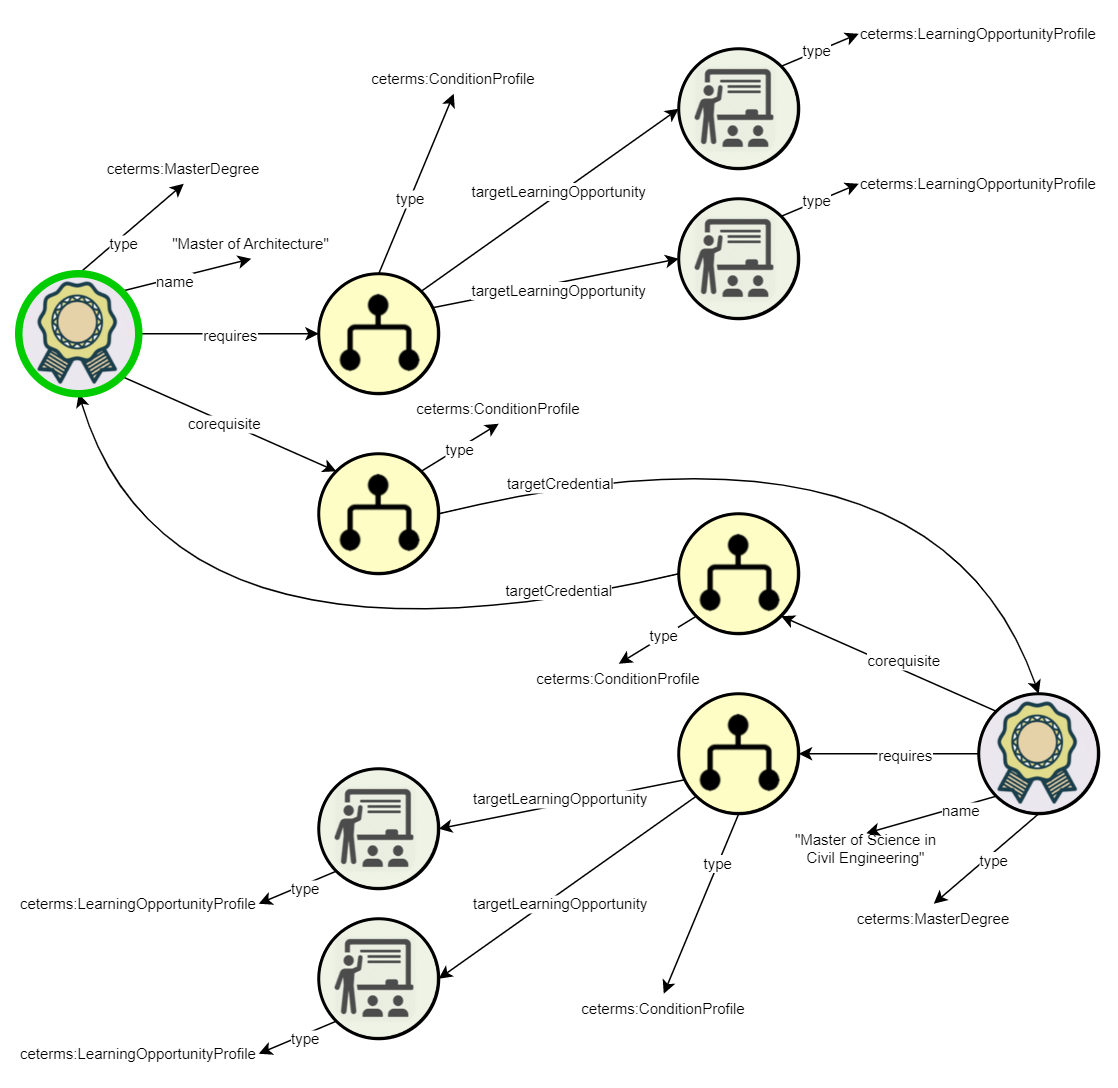

Condition Profile

The conditions for awarding or renewing a credential may be quite complex, involving a number of tightly coupled sets of constraints or conditions that must be met. The ConditionProfile class is used to describe these conditions. Examples of the kind of data described by a ConditionProfile may include constraints on applicable audience, residency requirements, minimum age and experience requirements, credit hour requirements, and jurisdictional restrictions, as well as other resources that must be earned or completed first, such as a required assessment or learning opportunity.

In some cases, there are different means of earning the same credential (e.g., "have 3 years of experience and pass this test, or complete 4 training courses and pass a different test"). ConditionProfile handles these via the alternativeCondition property, which allows for constructing a branching hierarchy of ConditionProfiles to group different sets of requirements together.

ConditionProfiles in the same array for the requires property should be interpreted as having their conditions aggregated together, while ConditionProfiles in the same array for the alternativeCondition property should be considered as alternatives for one another (i.e., completing the conditions for just one of the ConditionProfiles is sufficient).

If a credential references one or more ConditionProfiles within a ConditionManifest (via commonConditions) as well as one or more ConditionProfiles via requires, then the collection of all of those ConditionProfiles should be interpreted as having their conditions aggregated together (with ConditionProfiles in the array of requires taking priority in the event of any conflicts).

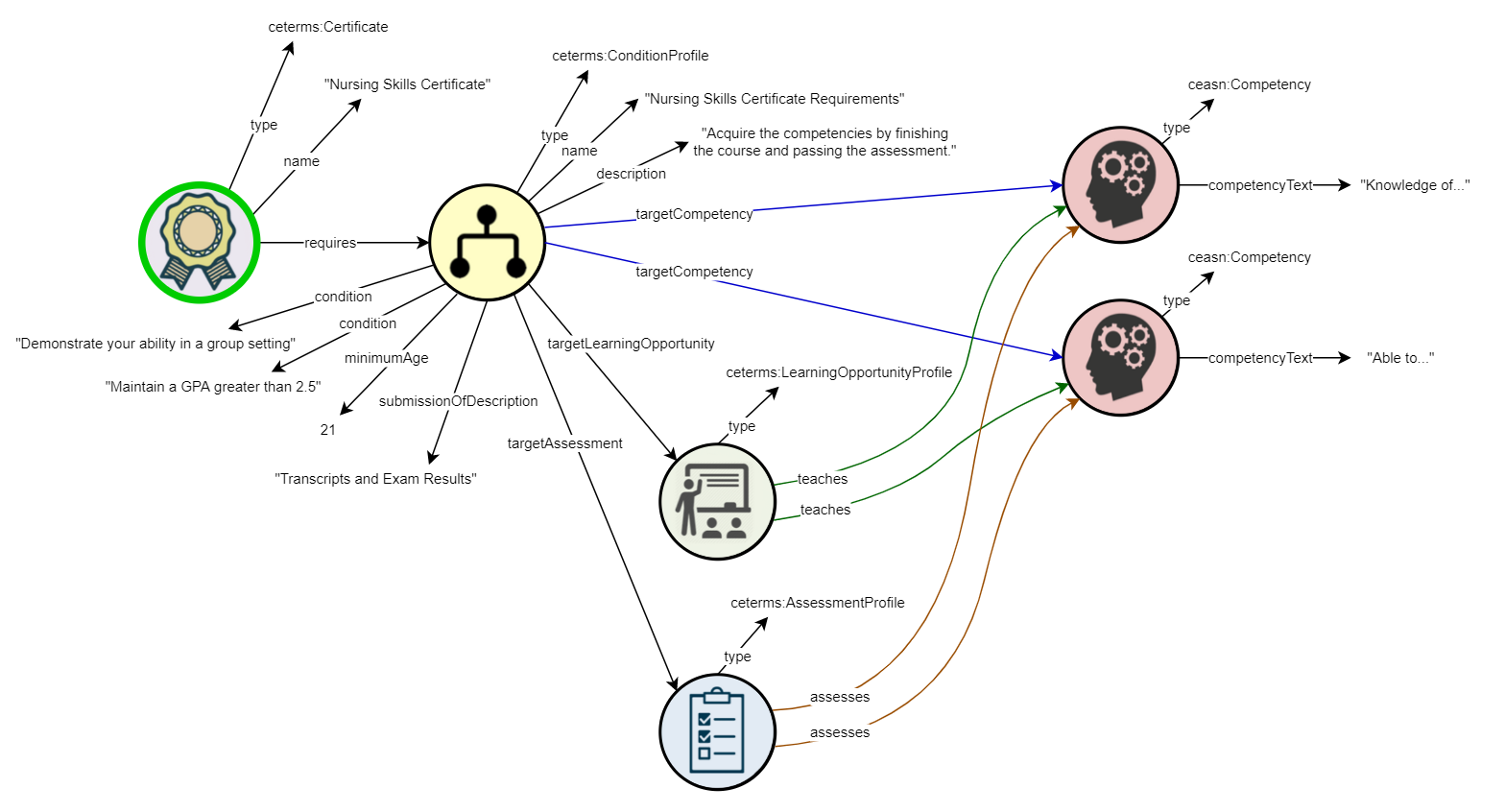

Note: For readability, the diagram below omits the instances of CredentialAlignmentObject that would, in the Registry, exist between the Competencies and the objects that reference those Competencies.

Condition Profile Depicting Requirements for a Nursing Certificate

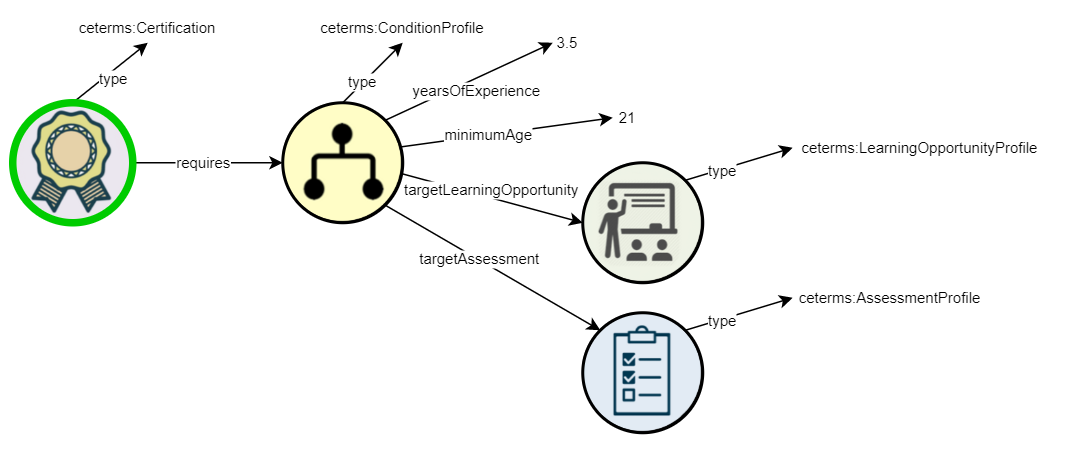

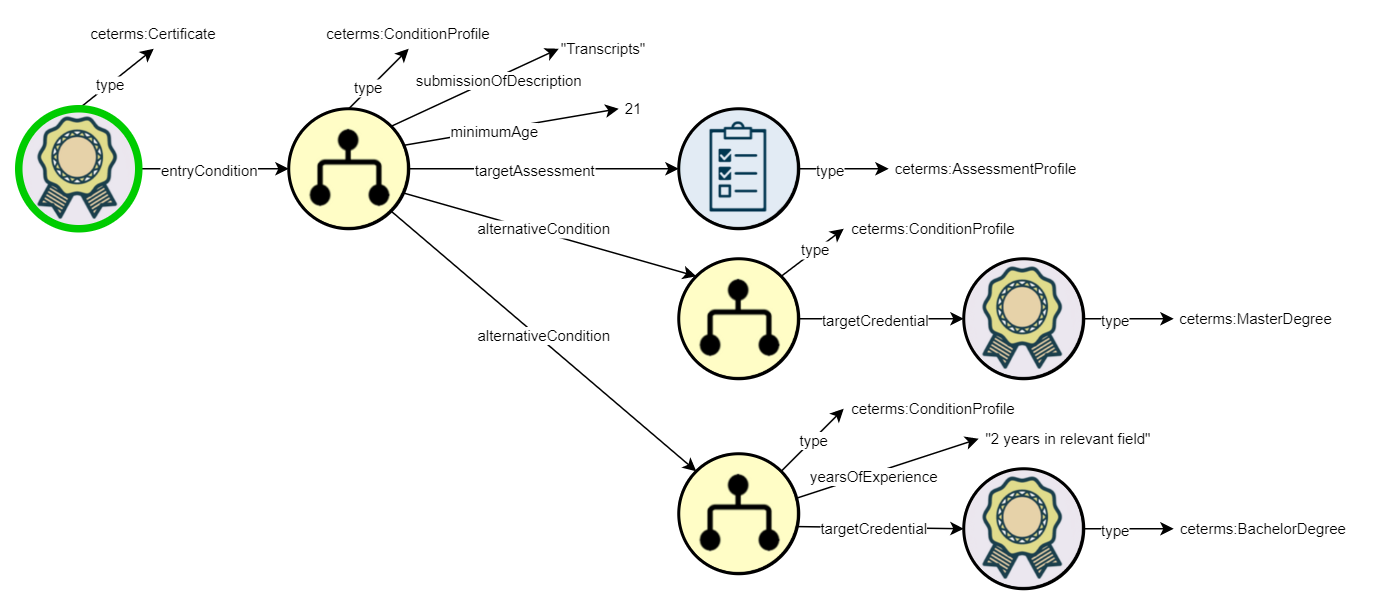

Condition Sets

The figure below illustrates a Certificate that requires a ConditionProfile which describes the conditions of "3.5 years of experience" and a minimum age (minimumAge) of "21", along with completion of referenced AssessmentProfile and LearningOpportunityProfile.

Figure 2.2A

Condition Profile describing a set of conditions

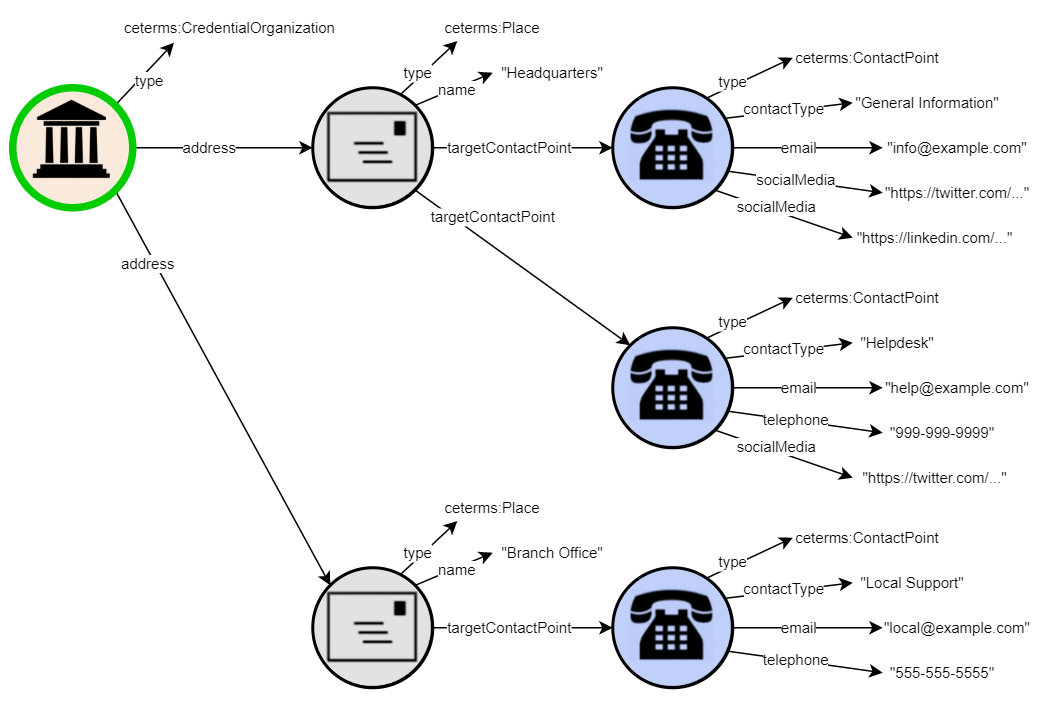

Contact Point

Large Agents frequently have numerous important contact points handling specific activities such as application, credential verification, and general information. The ContactPoint class provides an array of properties for describing such contact points.

Organization with multiple Contact Points

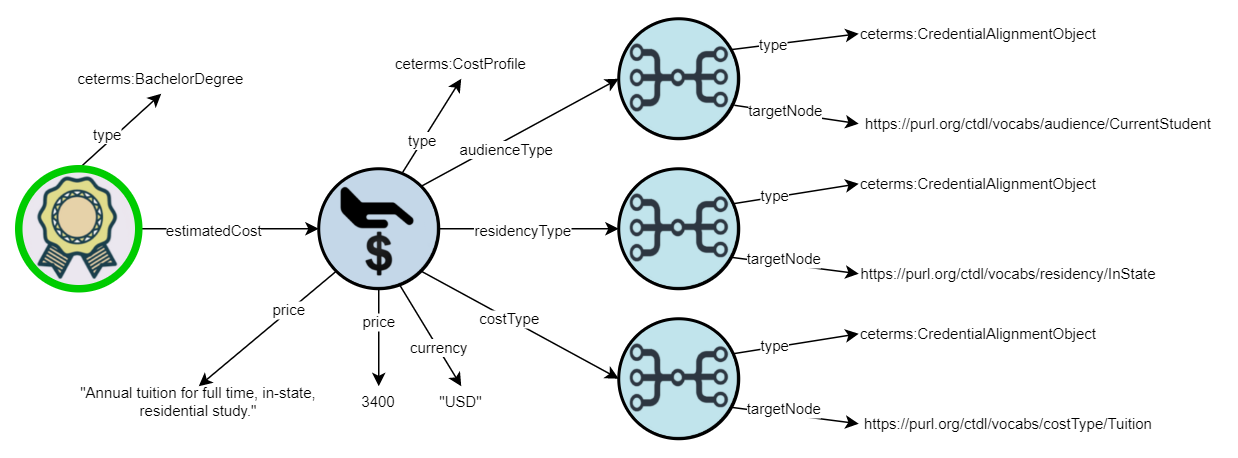

Cost Profile

The CTDL provides the ceterms:CostProfile class to describe various types of costs as reflected in the CostType controlled vocabulary. Some of these costs may be applicable to a specific Credential or its associated AssessmentProfile or LearningOpportunityProfile classes. Such credential-level costs are illustrated in the example below. However, other costs are more broadly applicable institutionally or programmatically across an array of Credential, AssessmentProfile, or LearningOpportunityProfile classes. Such institutional or programmatic costs are covered in this section.

Some costs are unique to a Credential, Assessment Profile or a Learning Opportunity Profile. These costs can be defined by their respective profiles via the Cost Profile class.

Figure 3.1.1A

Total tuition for a full-time, in-state student.

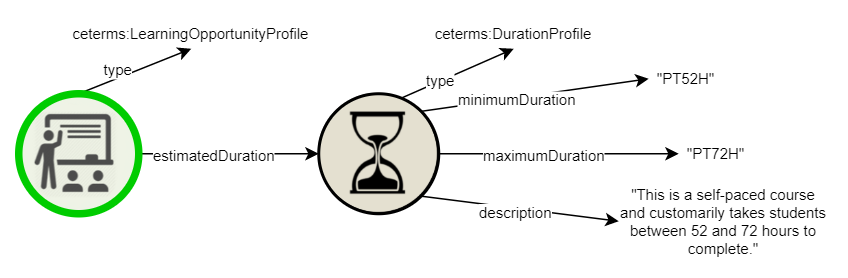

Duration Profile

Many entities in the CTDL model have temporal aspects - i.e., durations, dates, start and end times. The DurationProfile supports description of these temporal aspects. Aspects of time are expressed using the ISO 8601 Data Elements and Interchange Formats - Information Interchange - Representation of Dates and Times. Temporal values encoded using ISO 8601 can be parsed and displayed in a manner suitable for particular audiences. For example, the letter "P" (period) in the temporal values in the following figure is the duration designator and starts values denoting a specific duration. "T" (time) is the time designator that precedes the time components of the representation and the "H" is the ISO 8601 hour designator.

Figure 3.2A

Duration of a self-paced course.

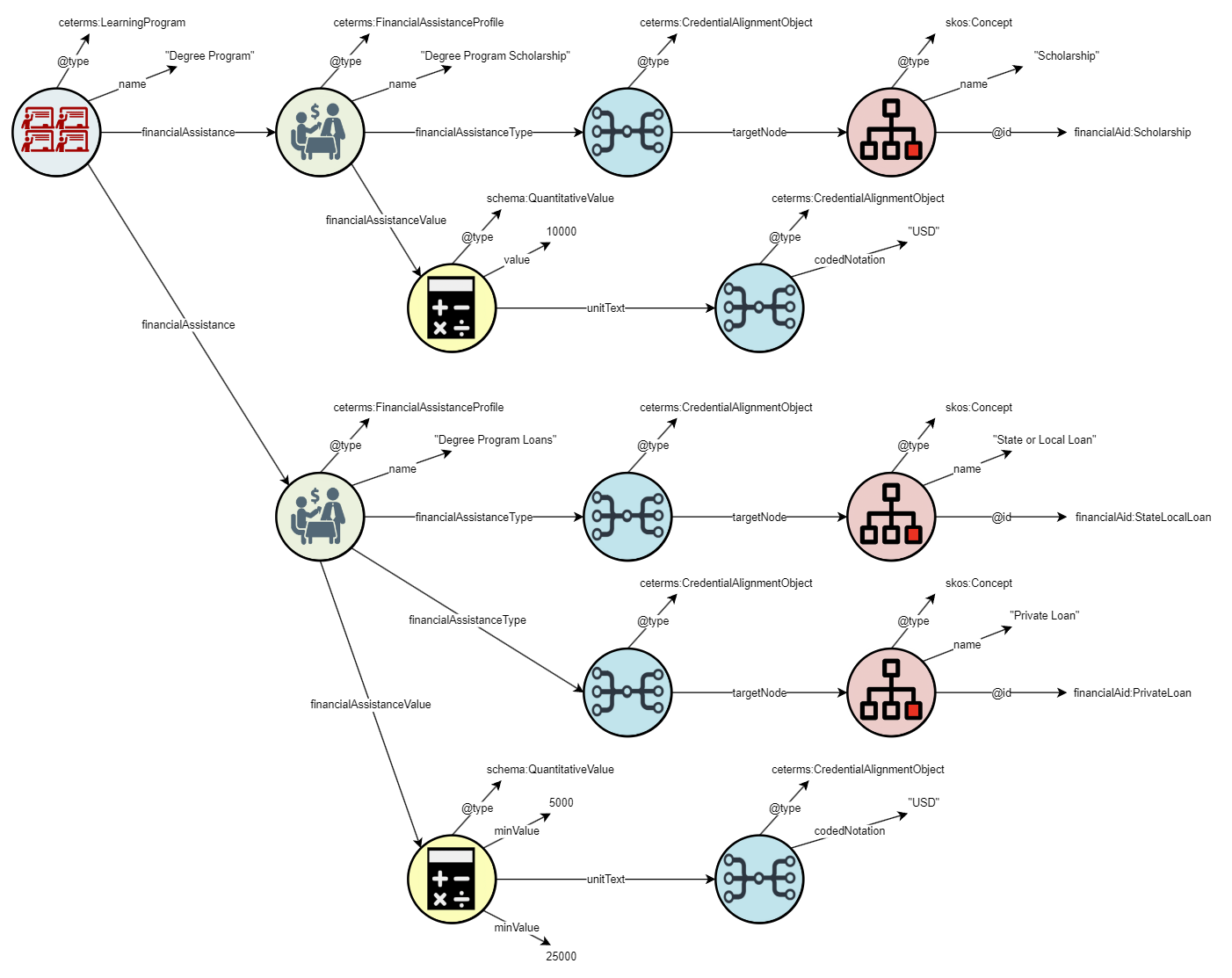

Financial Assistance Profile

ceterms:FinancialAssistanceProfile provides a way to summarize the nature of financial assistance available to assist in the pursuit or completion of requirements for a credential, or other related resources. Financial Assistance Profile is intended to identify and link to more thorough information meant for data consumers. Financial Assistance Profile leverages the ceterms:FinancialAssistance Concept Scheme to categorize different kinds of financial assistance in a way that makes it easier to search and filter the data. The diagram below illustrates a Learning Program with two instances of Financial Assistance Profile.

Financial Assistance Profile

Example of Financial Assistance Profile

Identifier Value

As covered in the Identifiers section, identifiers come in many forms. For identifiers that do not have specific properties assigned to them, CTDL provides the IdentifierValue class and associated identifier property to reference it. This class contains properties designed to enable providing an otherwise-obscure textual identifier, such as 123.sys-abc along with references to where that identifier came from, such as a framework of identifiers or a source that issued it. This class should be considered an identifier of last resort where no property exists that would be appropriate to use instead.

Figure 4.3.3A

Local identifier definition and value.

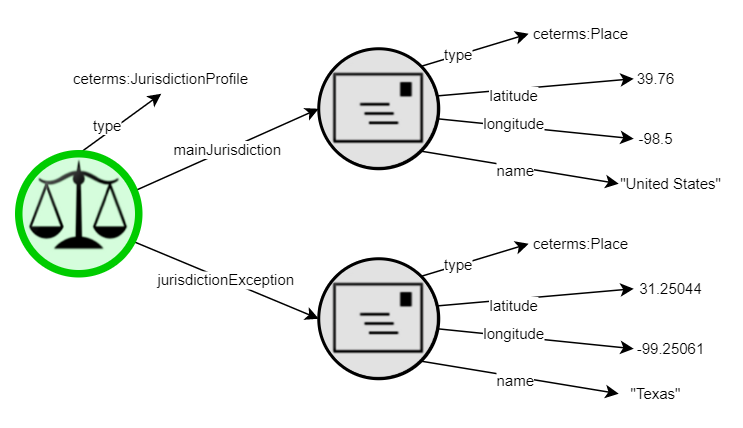

Jurisdiction Profile

The JurisdictionProfile class is used throughout the CTDL to describe geographic and geo-political regions where a Credential is available or useful. The Profile supports description of the main region (mainJurisdiction) as well as any exceptions to that main region (jurisdictionException). The figure below illustrates a main region of "United States" with the exception of "Texas". JurisdictionProfile also supports a narrative description of the region as well as the ability to assert global applicability or utility (globalJurisdiction).

Figure 3.5A

Jurisdiction with an exception.

Revocation Profile

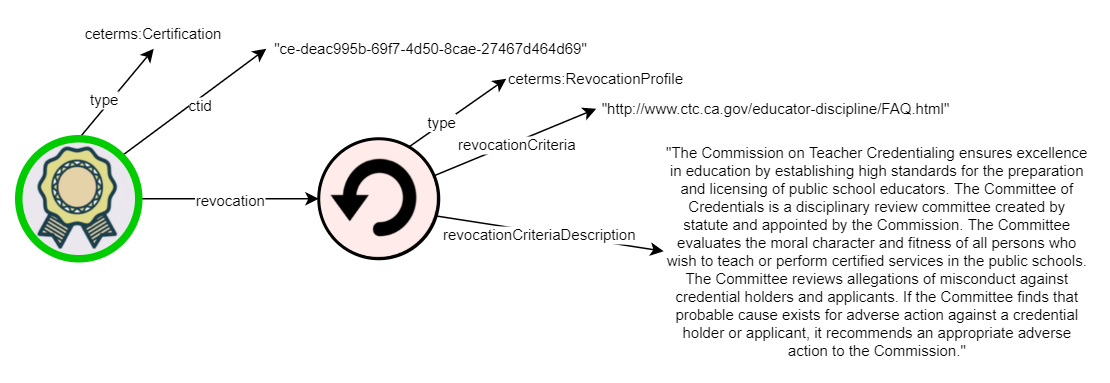

The RevocationProfile class describes the "conditions and methods by which a credential can be removed from a holder". The Profile provides the means to describe the revocation criteria, reference webpages with detailed information, any jurisdiction or region of applicability, and effective date. The figure below describes the revocation information for a Certificate.

Figure 3.7A

Credential revocation information.

Verification Service Profile

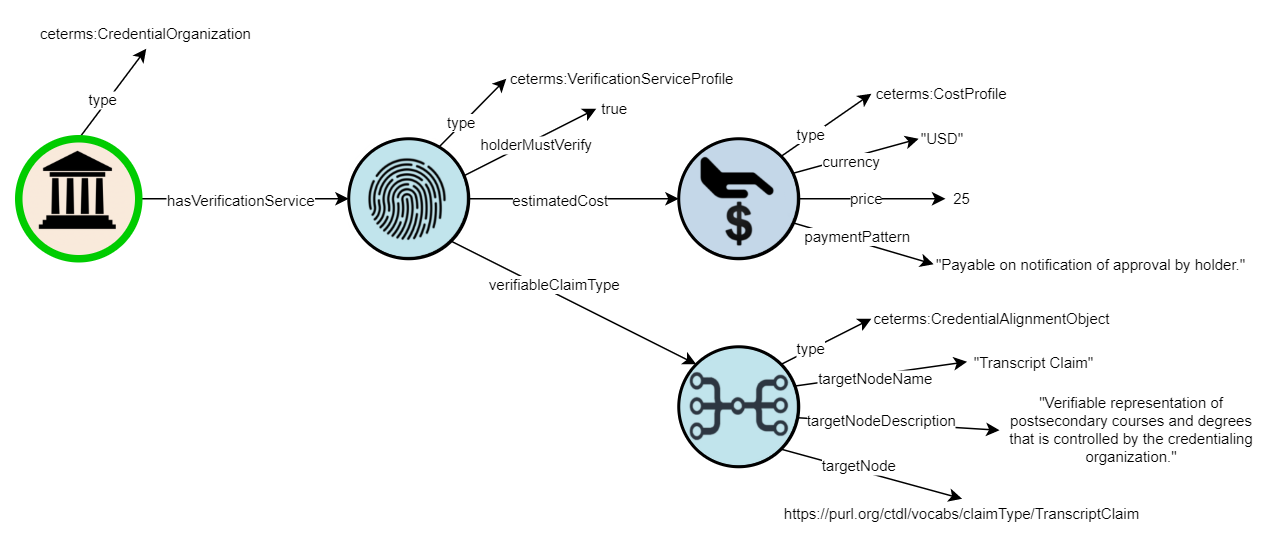

The VerificationServiceProfile class describes "the means by which someone can verify whether a credential has been attained". The Profile includes properties for providing a narrative description, whether the holder must authorize any verifications, jurisdiction or region of application, the type of a claim, and any related costs for the service. The figure below documents the verification service of a Credential Organization that requires the holder of a credential to authorize the organization to provide the verification service, the $25 fee charged for the service, the type of verification (through transcript) and its description.

Figure 3.8A

Verification by transcript.

Process Profile

The ProcessProfile class supports description of development, maintenance, and administrative processes in the lifecycle of instances of the Credential class. The Profile provides for identification of relevant Agents, frequency and nature of required processes, required standards to be applied in these processes, and the forms of external inputs into development, maintenance, and administration. Any constraints on processes in terms of temporal or spatial factors can be identified and described.

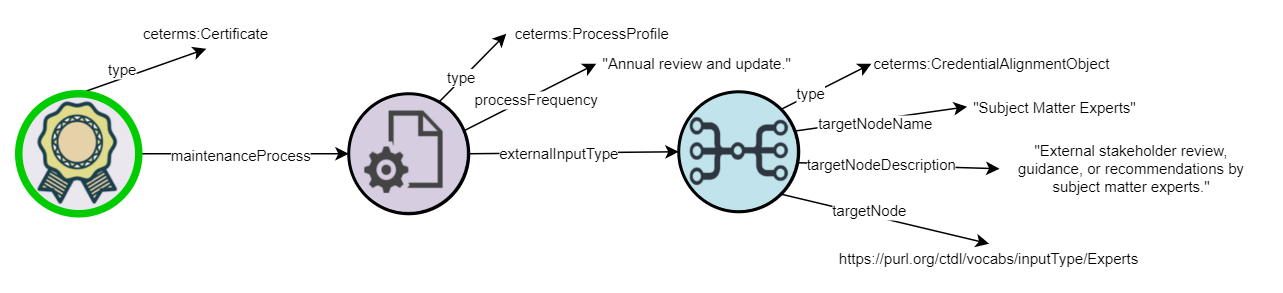

The following figure illustrates a simple use of the ProcessProfile class in describing the maintenance of a Certification (Certification). It identifies a frequency of "annual review and update" and requires external input from "subject matter experts" in that process. It uses the CredentialAlignmentObject to identify the type of external input as defined in the CTDL ExternalInput type vocabulary where the concept of "Expert" is identified by URI (for use in Linked Data) and its semantics defined.

Figure 3.6A

Process Profile for a Maintenance Process

The CTDL defines the following properties for referencing an instance of ProcessProfile from a Credential:

Rule Set Profile

In the Pathway section, we defined a Ruleset as an entity that "identifies the rules by which other PathwayComponent instances may satisfy a PathwayComponent objective". While it is anticipated that there will be RuleSet libraries developed by Credential Engine and other parties for handling complex circumstances and choices, the Simple Count Rule has been deemed generally useful and is defined directly in the ComponentCondition. The Component Condition example illustrates use of this Simple Count Rule making it possible to define a required number of PathwayComponents to select from an array of PathwayComponents that satisfies the rule. With the exception of the Simple Rule Set integrated into ComponentCondition, other RuleSets are referenced from the ComponentCondition using the alternativeRuleSet property.

While it is anticipated that other forms of rules will arise as more Pathways are modeled using CTDL, the simple Count Rule is the only one currently embodied in the schema.

CTDL Profile of ASN-DL (CTDL-ASN) Schema

In order to describe competency frameworks in as interoperable a manner as possible, Credential Engine builds on an existing description language called Achievement Standards Network Description Language (ASN-DL) that was developed under funding from the U.S. National Science Foundation (NSF) between 1999-2013 for the description of logically related sets of knowledge, skill and ability assertions. The ASN-DL is designed using the W3C's Resource Description Framework (RDF) for describing Linked Data on the open Web. The CTDL-ASN Profile adopts most of the set of properties and classes defined in the ASN-DL and is judiciously extending that set through property and class refinements as well as the addition of new properties and classes defined in CE's own Credential Transparency Description Language (CTDL).

Basic CTDL-ASN Architecture

The ASN Description Language (ASN-DL) is made up of two fundamental entities: (1) the Standards Document - a competency framework as a whole, and (2) the Statement - the individual assertions of knowledge, skill, and abilities of which a Standards Document is comprised. These two entities - documents and statements - are modeled in terms of an entity-relationship model (ER) and embodied as a directed graph using W3C's Resource Description Language (RDF). An extensible set of structural and semantic relationships between the ASN's primary competency framework entities - the standards document entity and its atomic statement entities - have been defined.

Following that pattern, CTDL-ASN is made up of its own two fundamental entities: (1) the Competency Framework, which serves as a means of describing and referencing the entire framework as a whole, and (2) the Competency, which is an individual assertion of knowledge, skill, ability, behavior, attitude, or other attributes that would fall under the broad notion of a competency. These entities closely follow the ASN-DL's modeling as an entity-relationship model.

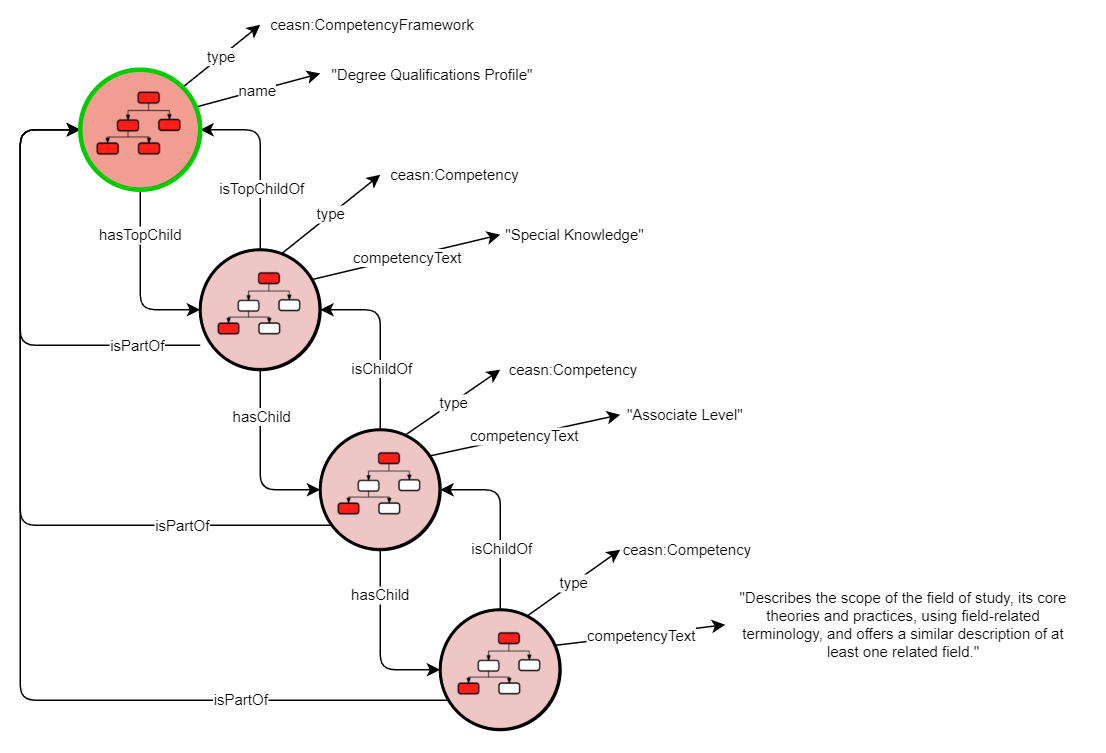

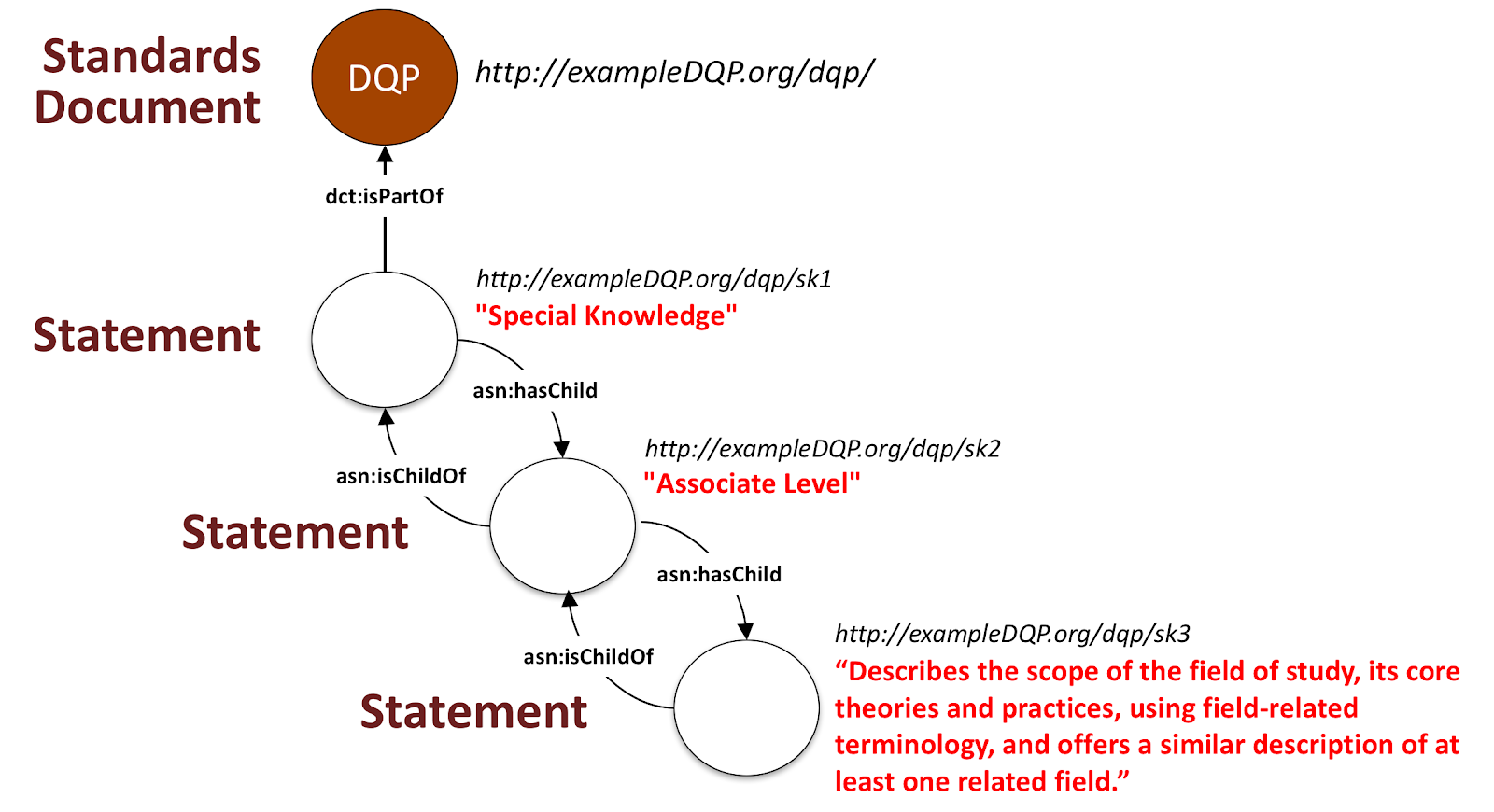

The following diagram illustrates example encodings of a competency in the Degree Qualification Profile (DQP) using CTDL-ASN:

Degree Qualification Profile Sample Expressed with CTDL-ASN

Note that each entity has been assigned a unique identifier in the form of a Uniform Resource Identifier (URI) using the HTTP protocol. This means that each resource is a "first class citizen" on the open Web and can be openly referenced and linked too.

Competency Framework

The CompetencyFramework class embodies a set of related Competencies arranged in some meaningful structure. A framework of competencies may be as simple as a flat list or as complex as a deep hierarchy. In rare cases, a competency framework may even be a non-hierarchical graph of competencies. The exact nature of the connections between the competencies are described by the competencies themselves (see below); the competency framework class exists simply as a way to identify, describe, and reference its competencies as a single entity.

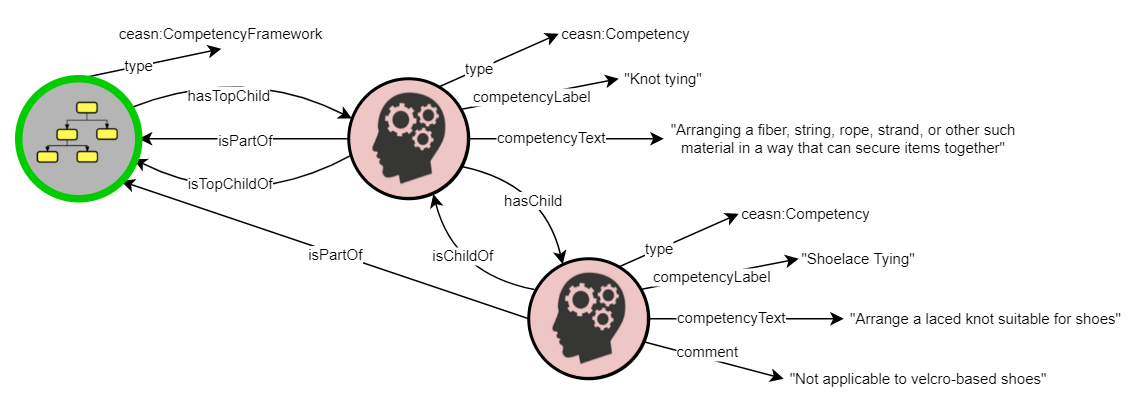

Competency Framework with two Competencies

Competency

The Competency class embodies a particular knowledge, skill, ability, behavior, attitude, etc. A competency may exist at a high level (e.g., "Can fly an airplane"), a very granular level (e.g. "Can correctly interpret an altitude gauge"), or anywhere in between (e.g. "Can maintain level flight in clear conditions"). The most important property of the competency class is the competencyText property, which provides the normative text of the competency itself. The competency class also provides a simple competencyLabel property to enable giving a competency a shorthand name, as well as a non-normative comment to better describe or disambiguate the competencyText.

This class also has a set of properties that enable connecting multiple instances of competency together in integral/structural and non-integral/alignment related ways. See the next section for details on how these properties are used.

Relationships Between a Competency Framework and Competencies

CTDL-ASN inherits ASN-DL's "two object model" nature. This means that while the CompetencyFramework allows for describing the whole set of Competencies, it is up to the competencies themselves to describe their relationships to each other. CTDL-ASN provides the following properties to connect a framework to its competencies:

In addition to non-structural alignment properties, the competency class has two properties to enable connecting competencies together in an integral, structural fashion:

As shown in the Competency Framework example above, these properties allow connecting competencies together into a meaningful structure.

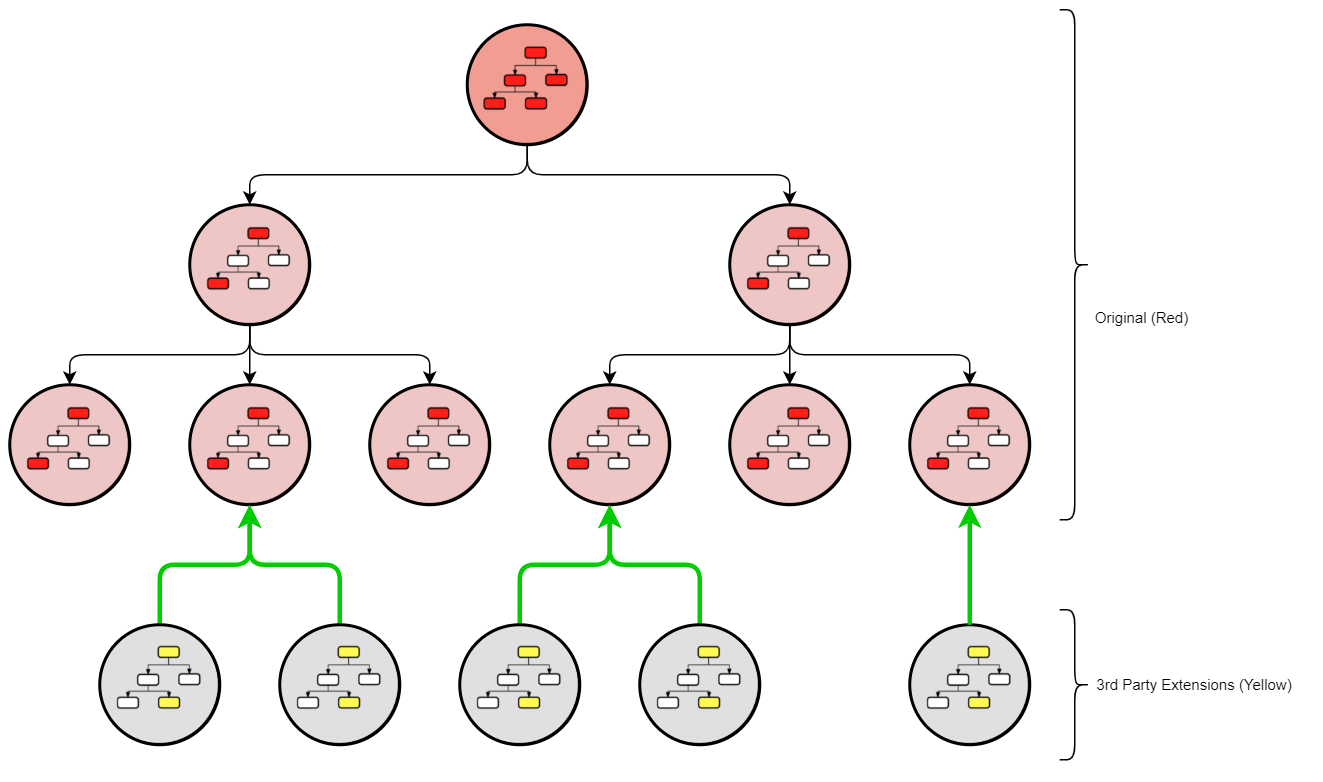

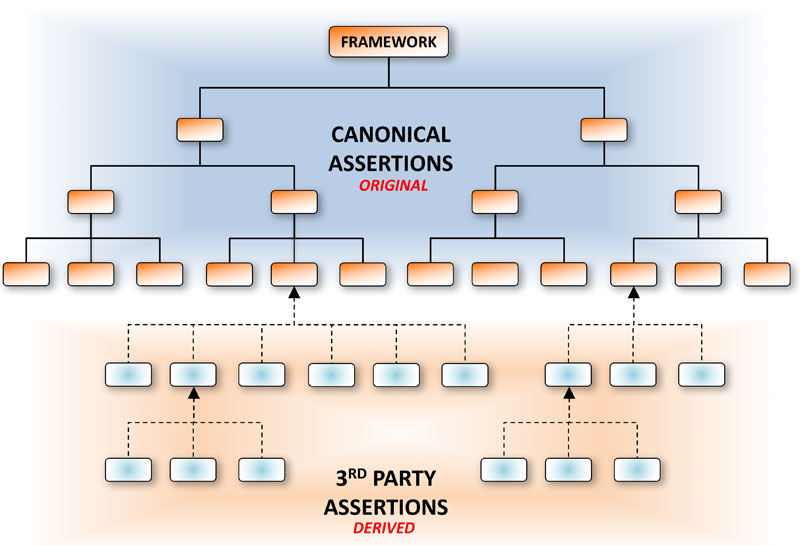

Extending the Granularity of a CTDL-ASN Taxon Path

For some uses of a particular ASN-modeled competency framework, the level of granularity of leaf competencies in the canonical version may not be sufficiently granular. For example, a specific competency may aggregate several skills that some 3rd party creator of assessment instruments may wish to handle separately. The ASN-DL model makes it possible to increase the granularity of expression of a competency by distinguishing between canonical (original) competencies as promulgated by the authors of the framework and non-canonical (derived) statements added by 3rd parties. Derived 3rd party ASN statements "refine" original statements by making more specific granular assertions. Since derived statements are treated as first-class entities in the ASN, they are assigned URIs in the same manner as original statements and clearly identified as "derived". Of course, derived statements can be easily eliminated, not display, or treated in some manner as simple annotations by services consuming the standards documents.

As a result of this extensibility, any 3rd party may create more granular statements without authorization in its own 3rd party namespace and relate those statements to the canonical (original) statements while identifying such competencies as "derived". Of course, since 3rd party statements are in different namespaces than the canonical version, 3rd party provenance is machine identifiable. The following figure illustrates this 3rd party "annotation" process.

Extending the Granularity of a Competency Framework with CTDL-ASN

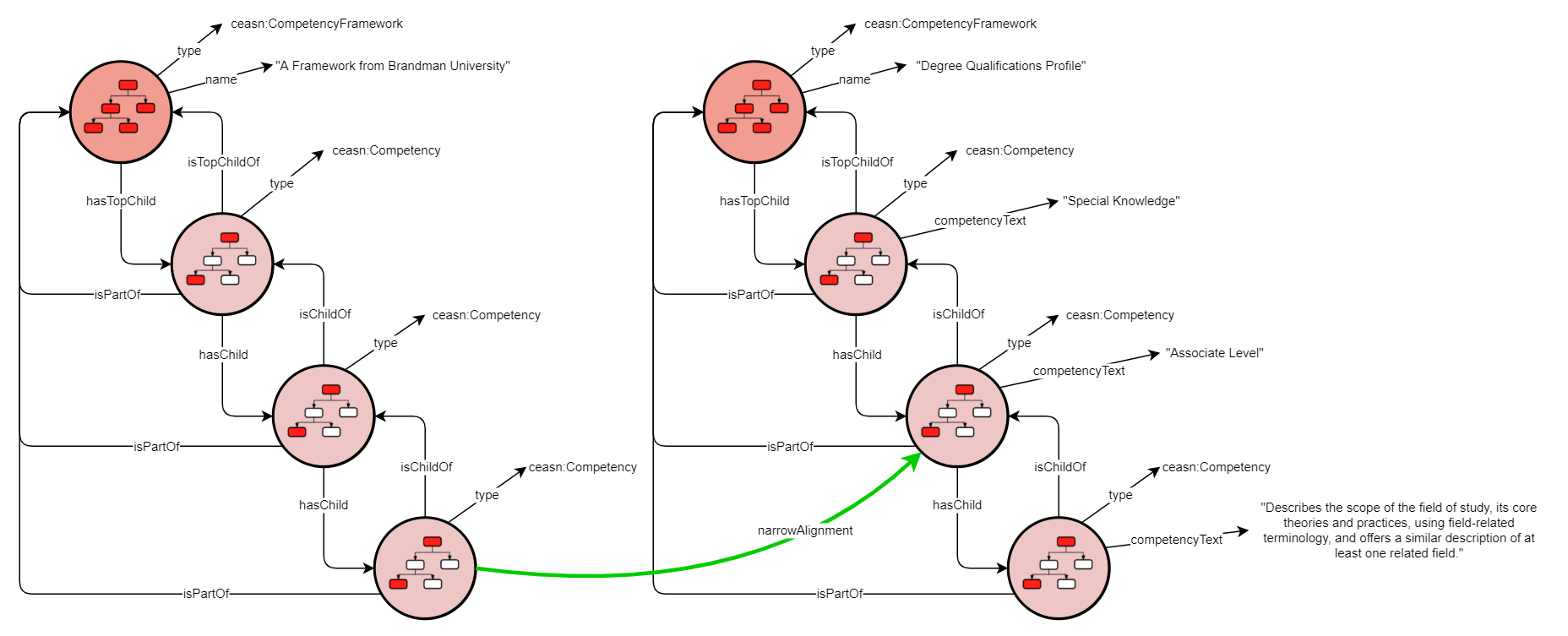

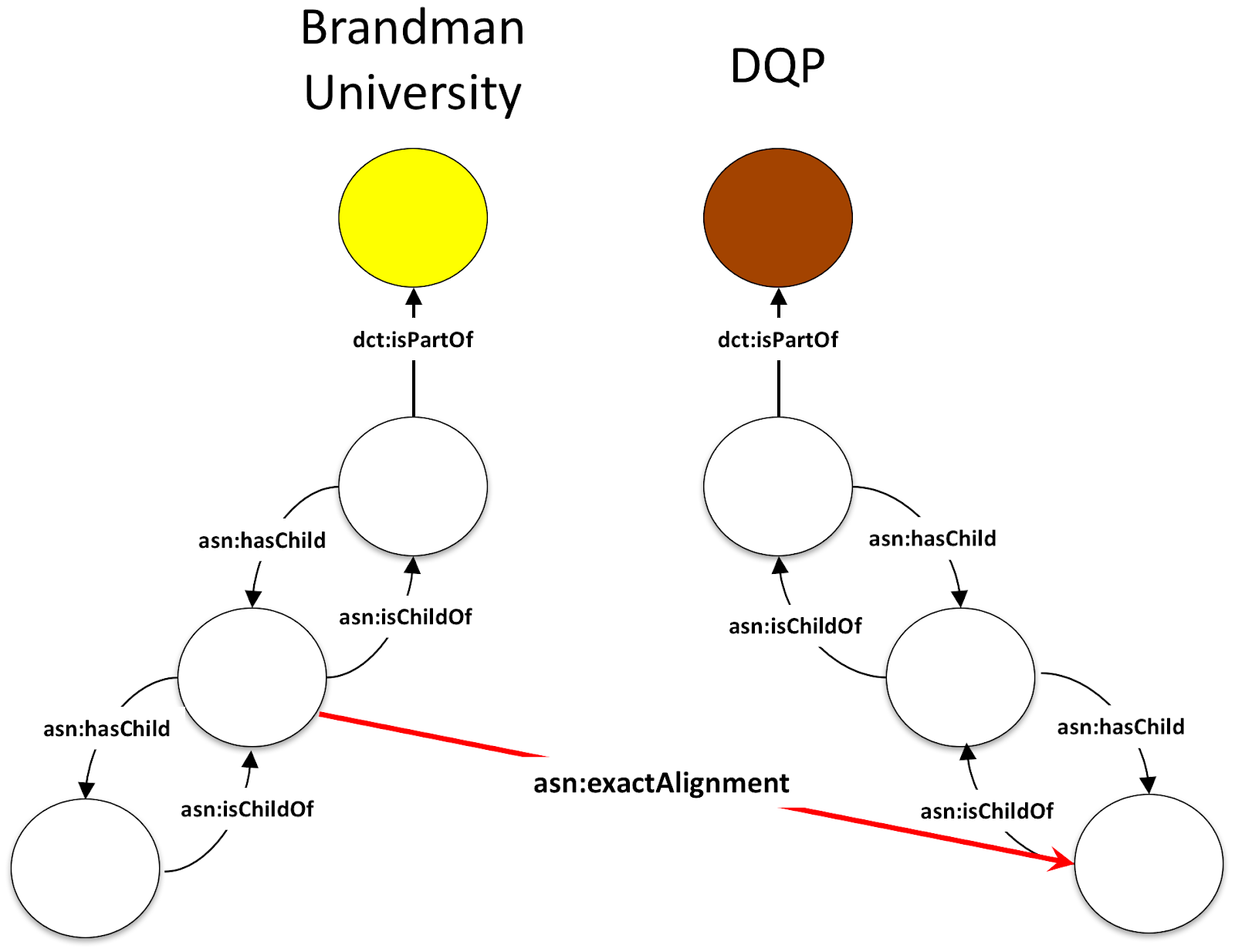

Cross-Framework Mapping

Because every CTDL-ASN Competency Framework resource and every CTDL-ASN Competency resource is identified by URI, competency frameworks and their individual competencies can be mapped to each other regardless of where the frameworks are located on the open Web. The following figure asserts an exact match relationship between a competency in a Brandman University competency framework and a competency in the Degree Qualification Profile (DQP):

Competency to Competency Mapping Across Frameworks with CTDL-ASN

The ASN-DL offers a range of properties to express different degrees of similarity between competencies; additional mapping properties can be defined in the CTDL-ASN Profile as needs arise.

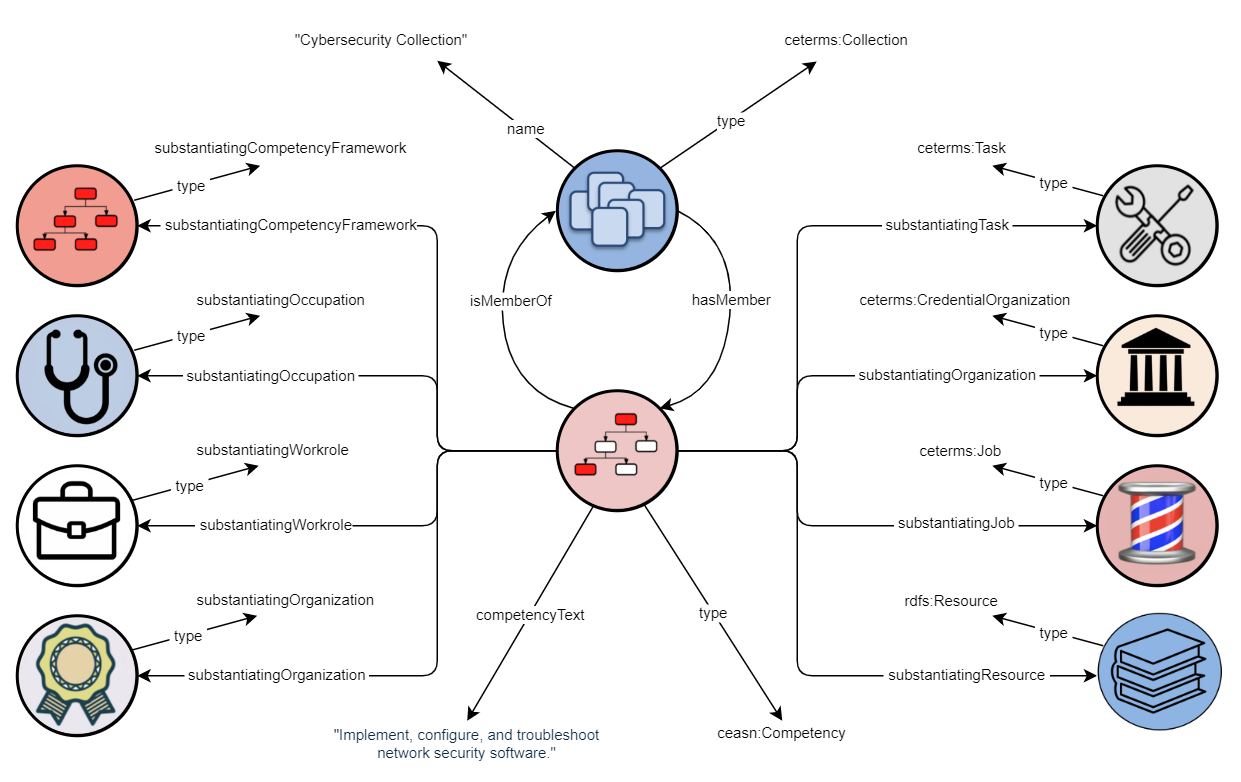

Collection

While Competency Frameworks are similar to Collections of competencies - i.e., both aggregate resources, they are significantly different in how they are developed. Competency Frameworks and their associated competencies are created top-down as a whole even though there may be an intention that the Framework’s Competencies be reused in other contexts. At the level of the Framework, the audience and purpose should be defined and relationships to other contextualizing resources are established with the assumption that these attributes carry down into the Framework’s Competencies. In a sense, we might say that first comes the contextualizing Competency Framework followed by its Competencies.

Since the potential members preexist any Collections in which they might later be identified, we can characterize the creation of a Collection as bottom-up. Since nothing requires a resource to ever be a member of a Collection, the burden of contextualization for each member, which would otherwise be carried by the Competency Framework, falls to the individual members of the Collection. This burden of member contextualization is illustrated in the diagram below through the outbound substantiating arcs (arrows).

Expressing "Strength of Fit" (Degrees of Similarity)

Frequently, it is useful to map from one resource to another to express the level of useful similarity between the two nodes. Such mappings may be from one competency framework node to another node in the same or another framework (i.e., competency-to-competency), or to map from a learning resource to a competency node (i.e., learning resource-to-competency). In ASN, the utility of that mapping is a function of its "strength of fit". The ASN ontology provides an array of properties that express this strength of fit relationship in competency-to-competency mappings (called "alignments" in ASN) and learning resource-to-competency mappings (called "correlations" in ASN).

The table below includes brief descriptions of the current competency-to-competency mapping predicates. For the full description of both the competency-to-competency mapping properties and the learning resource-to-competency mapping properties, see CTDL-ASN Profile.

Align To

A competency framework or competency to which this competency framework or competency is aligned.

An alignment is an assertion of some degree of equivalency between the subject and the object of the assertion.

Align From

A competency framework or competency from which this competency framework or competency is aligned.

An alignment is an assertion of some degree of equivalency between the subject and the object of the assertion.

Broad Alignment

The referenced competency covers all of the relevant concepts in this competency as well as relevant concepts not found in this competency.

Exact Alignment

The relevant concepts in this competency and the referenced competency are coextensive.

Major Alignment

Major overlap of relevant concepts between this competency and the referenced competency.

Minor Alignment

Minor overlap of relevant concepts between this competency and the referenced competency.

Narrow Alignment

This competency covers all of the relevant concepts in the referenced competency as well as relevant concepts not found in the referenced competency.

Prerequisite Alignment

The referenced resource is a prerequisite to this resource.

Rubrics

Rubrics are key to understanding competencies in relation to credentials and jobs. They may specify the observable behaviors that indicate a person has reached a certain level of competence. As such, rubrics may support processes such as the assessment of learning outcomes from a learning opportunity, the appraisal of task performance in a job, etc. CTDL is capable of describing credentials, competencies, assessments and tasks; the inclusion of rubrics enables further transparency regarding the competencies that are required in a specific context and how they are assessed. The CTDL model for rubrics has been defined so that it is widely applicable beyond people and competences, so it is also relevant to appraising organizational capabilities and measures of quality or suitability of products, services and other things.

Where a rubric is used to assess the performance of individuals in an assessment, learning opportunity, job, task or for the attainment of any form of credential, the ceterms:hasRubric property may be used to indicate this relationship, as illustrated below. The diagram also shows that the ceterms:targetOccupation property may be used to indicate that a rubric has been created to assess an individual for a specific occupation, which in turn may be associated with Jobs and Tasks that use this Rubric.

There are several pre-existing data standards for Rubrics and the development of the Rubrics classes in CTDL recognized and built on the following:

• Panulla and Kohler (2010), An Ontology for Open Rubric Exchange on the Web
• Achievement Standards Network (ASN), Model for ASN Rubrics
• Common Educational Data Standards (CEDS), Rubrics Elements
• 1EdTech, IMS Competencies and Academic Standards Exchange (CASE)
• IEEE, 1484.20.3­—2022 Data Model for Shareable Competency Definitions

A mapping of all these standards to a common "spine" which informed the creation of the Rubrics classes and properties in CTDL is available. View the Rubric mapping here (Select Rubric Mapping for CTDL from the drop down menu).

Rubrics are often displayed in a tabular format showing Criteria that should be met as rows and the levels of achievement that may be attained against those criteria as columns. The CTDL model for rubrics (shown below) follows this with classes for the Rubric as a whole, a Rubric Criterion, a Rubric Level and a Criterion Level which is for the intersection of a Criterion with a Level, that is a single cell in a tabular Rubric. Strictly speaking such a tabular form only applies to analytic rubrics but other types of rubric may be modeled using these classes; for example a holistic rubric can be modeled as one with a single overarching criterion. If the rubric criteria are grouped thematically this can be indicated using a skos:Concept.

The data for a simplified rubric comprising two criteria and three levels is shown below, first in overview showing the whole structure then focusing in on the data for one of the CriterionLevels.

Simplified Rubric

Note: in the diagram above, the arrows marked hasCriterionLevel join RubricCriterion and RubricLevel objects to all the CriterionLevel objects in a row or column though it is not possible to show them passing behind the objects in the way.

Single Criterion Level

In the view of the single criterion level we can see some of the properties available for describing a criterion level, notably the benchmark statement for achieving that level and the percentage points awarded for such, in this case 100%. Alternatively it is possible to provide a numerical score for the performance or a range or either percentage or scores. The weighting of scores for each criterion is indicated on the Criterion object, in this case both happen to carry equal weight.

Many other properties can be used with Rubric classes, for example, hasRubric can point to a Rubric object to associate it with an AssessmentProfile, Job, Credential, LearningOpportunityProfile, Course, Program, CompetencyFramework or Task. Other properties associate a Rubric with an organization as the creator, publisher or rights holder, or show the type of audience, delivery method, education level industry, occupation or subject associated with the rubric. Information about how scores are calculated can be indicated in a process profile. At the RubricCriterion level, the tasks or competencies that are relevant can be indicated. Examples showing some of these properties are provided in the section below on Detailed Examples.

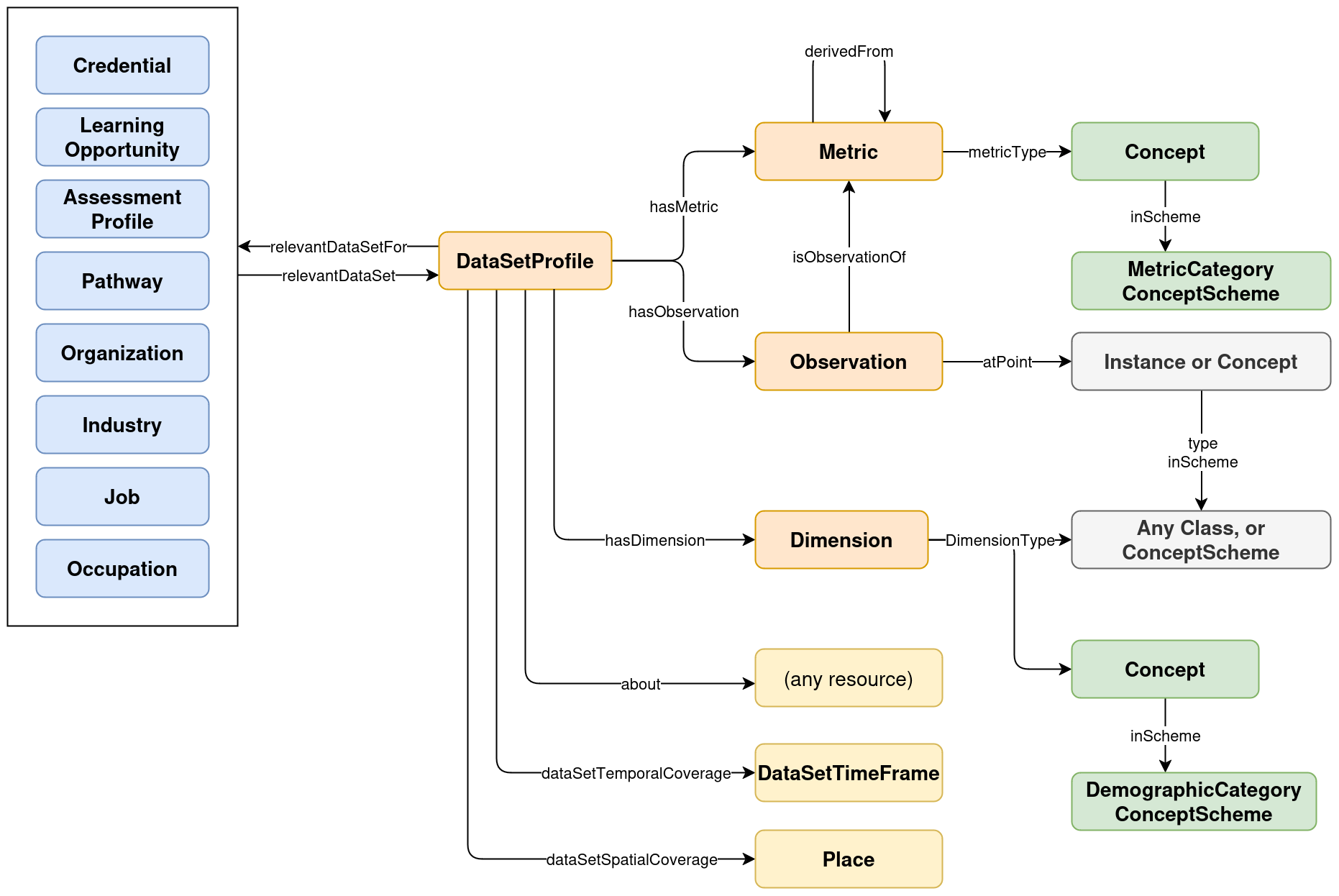

Quantitative Data (QData) Schema

In describing a credential, full transparency requires not only descriptions of provenance, nature and purpose, but also of credential outcomes including aggregate quantitative data on: (a) the number of credential awardees, (b) the number of awardees employed, and (c) related earnings over one or more time periods. To handle such outcomes data, Credential Engine has created a separate Quantitative Data namespace (QData). While some of the outcomes data may result from self-reporting, most of it is provided in datasets created by other parties--public sector entities at both state and federal levels and from the private sector. While many of these datasets are currently updated on a predictable schedule (e.g., annual, quarterly etc.), the development of the QData namespace anticipates far less temporal predictability across multiple datasets as data collection and reporting mechanisms become increasingly automated, interlinked and less episodic.

The following sections provide diagrams of the combination of both CTDL and QData terms in describing aggregate earnings and employment data for both: (a) the Bachelor Degree in Psychology from the University of Texas-Austin as provided through the US Census Bureau Post-Secondary Employment Outcomes (PSEO) second quarter of 2019; and ((b) credential holders data from Anderson University, Indiana for the years 2015 through 2018 as reported by the National Council of the State Boards of Nursing.

Overview

To illustrate the use of the QData properties and classes, the following two subsections use the 2019 earnings and employment outcomes data for a degree program at the University of Texas-Austin. Subsequent sections break the data down into the three key component classes that make up the QData model - DataSetProfile, DataSetTimeFrame and DataProfile. The University of Texas-Austin examples also demonstrate the use of classes and properties from other namespaces: CTDL (ProcessProfile) and Schema.org (MonetaryAmount, MonetaryAmountDistribution, and QuantitativeValue).

Employment Data

The QData model supports reporting on the University of Texas-Austin (UTA) aggregate employment data for the Psychology degree in two separate ways: (1) directly through a UTA dataset; or (2) indirectly by a 3rd party agent. In the following figure, UTA is reporting its aggregate employment data through the Psychology degree’s Aggregate Data Profile entity. The PSEO second quarter 2019 report includes employment data for UTA Psychology degree holders for three time periods - 1 year out from the confiring of the degree, 5 years out, and 10 years out. It also includes IPEDS data for the same time frames.

While UTA is reporting employment data from a single data source in this example, it could provide multiple DataSetProfile entities - each providing data from a different data set.

QData - Employment Outcome Data

Earnings Data

The figure below includes the PSEO earnings data for the same time frames as the employment data above. The structure of the top portion of the graph down to the DataProfile entity is fundamentally the same as the employment graph above.

QData - Earnings Data

Holders Data

The QData model supports reporting on the aggregate numbers of credential completers (holders) at specific points in time. The top portion of the figure below is fundamentally the same as the top portions of the figures above for both earning and employment data except that it reports on credential holders of a different institution, Anderson University. The number of years actually reported in the data set has been reduced in the diagram by half in order to save space.

QData - Holders Data

Data Set Profile

The DataSetProfile provides the entry point from Aggregate Data Profile into the QData graph for the UTA data and provides a general description of the data set and its data points including name, description, data provider, data suppression policy, data access URL, data set time periods included, administrative processes and the and other relevant data. The figure below illustrates this:

QData - Data Set Profile

Data Set Time Frame

The dataset generally described using DataSetProfile may have data covered by more than one time frame. For example, the aggregate earnings of credential holders may be reported for multiple post-award timeframes - e.g., 1 year out, 5 years out and 10 years out. The function of the DataSetTimeFrame class is to describe these timeframes by providing startDate and endDate properties. The dataAttributes property of the DataSetTimeFrame links the time frame to the DataProfile class where the attributes of the dataset will be described.

QData - Data Set Time Frame

Data Profile

The DataProfile class has a rich array of properties describing the characteristics of the dataset subjects. Each of those properties references one of the following classes: QuantitativeValue, MonetaryAmount, or MonetaryAmountDistribution.

QData - Data Profile

Detailed Examples

This section contains detailed examples from across the schemas that show how various use cases are handled.

Describing Requirements

The most common use of ConditionProfile is to describe the requirements to earn a credential. The following examples show various ways in which this occur.

Alternate Routes to Earn a Credential

A set of conditions represented by a ConditionProfile may have sub-sets of conditions defined by additional instances of the ConditionProfile class. In other words, a ConditionProfile may branch into two or more optional instances of the ConditionProfile class—each option defining a different aggregate set of conditions. The following figure illustrates a Certificate that has entry condition property (entryCondition) pointing to a Condition Profile requiring submission of transcripts (submissionOf) and the taking of a targetAssessment.

Through use of the alternative condition (alternativeCondition) property, this Condition Profile branches to separate instances of the ConditionProfile class: one branch points to a ConditionProfile requiring a Master's Degree (MasterDegree) and the other branch requires both a Bachelor's Degree (BachelorDegree) and 2 years of experience in a relevant field. The result is aggregate condition sets for two entry options:

• Option 1:
• Transcripts
• Assessment
• Master's Degree
• Option 2:
• Transcripts
• Assessment
• Bachelor's Degree
• 2 Years Experience

Figure 2.2B

Credential with two Sub-Conditions

Referencing Competencies

One of the most pervasive uses in CTDL of the CredentialAlignmentObject class (see the Credential Alignment Object section for more details) is relating various entities in the CTDL model to CompetencyFrameworks and their member competencies Competencies.

The following examples illustrate how this works using a Competency node in the DQP Framework. The description properties for this Competency include:

• frameworkName for the framework's name
• framework for the URI that identifies the framework
• targetNode for the URI that identifies the target node within the framework
• targetNodeDescription that provides a copy of the text of the competency

Referencing Competencies from Credentials

The Credential classes can use a ConditionProfile to reference competencies via the targetCompetency property and a CredentialAlignmentObject. The intended meaning of the reference to the Competency is conveyed by the property that references the ConditionProfile. In the example below, the requires property is used to mean "This credential requires the following conditions, among which is the indicated targetCompetency."

Any class (including AssessmentProfile and LearningOpportunityProfile) that uses a ConditionProfile can follow this approach.

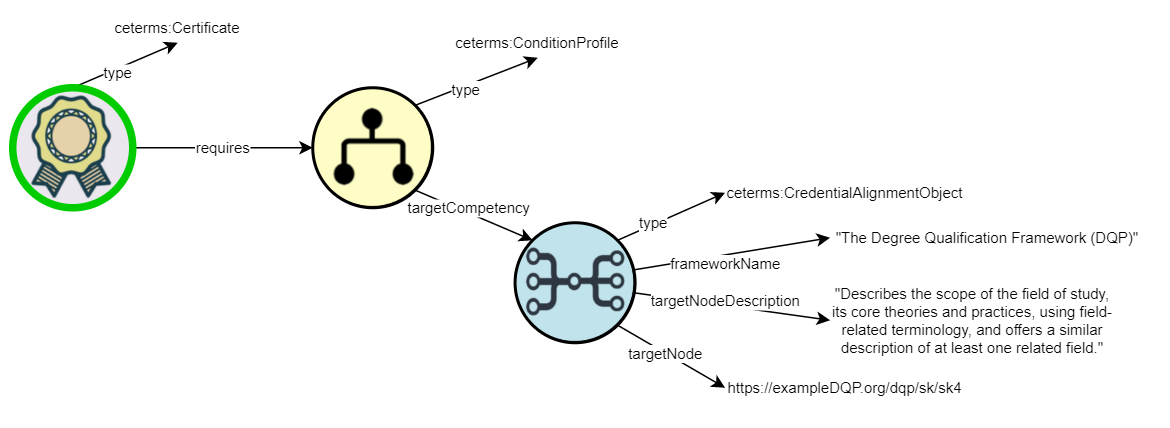

Figure 4.1A1

Credential that requires a Competency via a Condition Profile.

While the Credential Registry requires the use of a ConditionProfile in cases like the one above, CTDL allows properties like requires to bypass the ConditionProfile and directly use a CredentialAlignmentObject.

Figure 4.1A1A

Credential that requires a Competency directly.

Referencing Competencies from Assessment Profiles

In addition to the ConditionProfile-based approach described above, the AssessmentProfile class can more directly reference competencies via its assesses property and a CredentialAlignmentObject.

Figure 4.1A2

Assessment Profile that assesses a Competency.

Referencing Competencies from Learning Opportunity Profiles

In addition to the ConditionProfile-based approach described above, the LearningOpportunityProfile class can more directly reference competencies via its teaches property and a CredentialAlignmentObject.

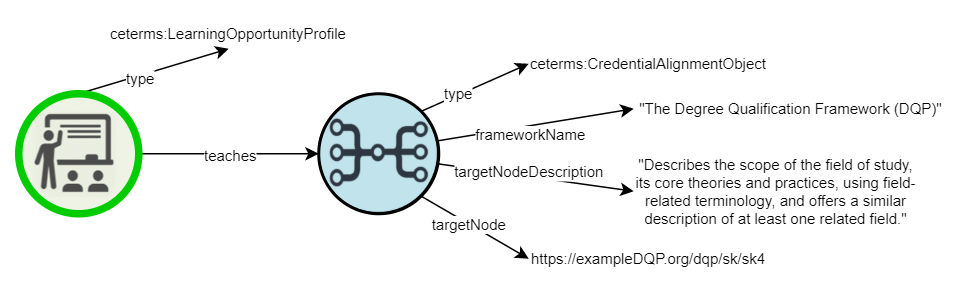

Figure 4.1A3

Learning Opportunity Profile that teaches a Competency.

Referencing Concept Schemes (Controlled Vocabularies)

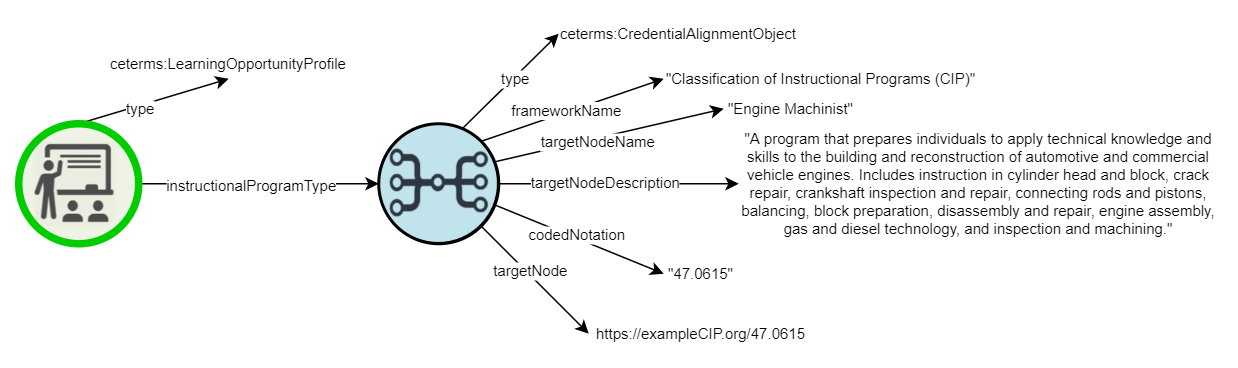

The following example follows the exact same pattern of use but adds the targetNodeDescription and codedNotation properties to more fully describe the instructional program type of the Learning Opportunity being profiled. The framework being used is the Classification of Instructional Programs (CIP) and the specific CIP program is Engine Machinist.

Figure 4.1C

Credential alignment object referencing CIP instructional program type.

In addition, the CTDL has created nearly 20 concept schemes defining values to be used with specific properties. In CTDL conformant data, those values are expressed in resource descriptions using the Credential Alignment Object class in the manner illustrated below.

Figure 4.1D

Organization referencing a Concept.

Referencing External Concept Schemes

The following graphic illustrates the use of the CredentialAlignmentObject to assert that a certain instance of the Credential class has an occupationType of "Deaf-blind interpreter" as defined in the RDF-based European Skills/Competences, qualifications and Occupations (ESCO) and identified with the URI of http://data.europa.eu/esco/occupations/18622.

Figure 4.1B

Credential alignment object referencing ESCO occupation.

Describing Transfer Value

The figure below shows the transfer value provided by (transferValueFrom) a "Principles of Finance" course.

Figure 5.1

Transfer Value Profile

Degree with Concentrations

Degrees frequently provide more than one prescribed path to earning the degree. These options, while variously named, are referred to in CTDL as concentrations. The following figure illustrates a Bachelor of Arts in Communication that provides a common set of courses that all students take and then two concentrations from which the students may choose—Social and Cultural Communication and Technology and Global Media. Each concentration has an array of learning opportunities.

Figure 2.2C

Bachelor Degree with with two subconditions defining degree concentrations

Degree Requiring a Set of Certifications

Some degrees are primarily or solely comprised of certificates earned. Those certificates may or may not be developed and controlled by the entity awarding the degree. The figure below illustrates a set of conditions wherein the learner takes required courses, some of which prepare him or her for required CompTIA certification.

Figure 2.2D

Two required Conditions - Courses + Certifications

Dependent Dual Degrees

Dependent dual degrees are two degrees that are tailored to go together—e.g., a Master of Architecture and a Master of Science in Civil Engineering. Dual degrees are described in CTDL as two separate degrees and mutually related through through an instance of ConditionProfile. The following figure illustrates such dependent dual degrees with an intersecting ConditionProfile describing the condition set identifying requirements with a description property stating that "[a] maximum of 15 credits may be used to satisfy requirements of both Architecture and Engineering degrees".

Figure 2.2E

A tailored dual degree program permitting students to obtain both an Master of Architecture and a Master of Science in Civil Engineering

Life Cycles

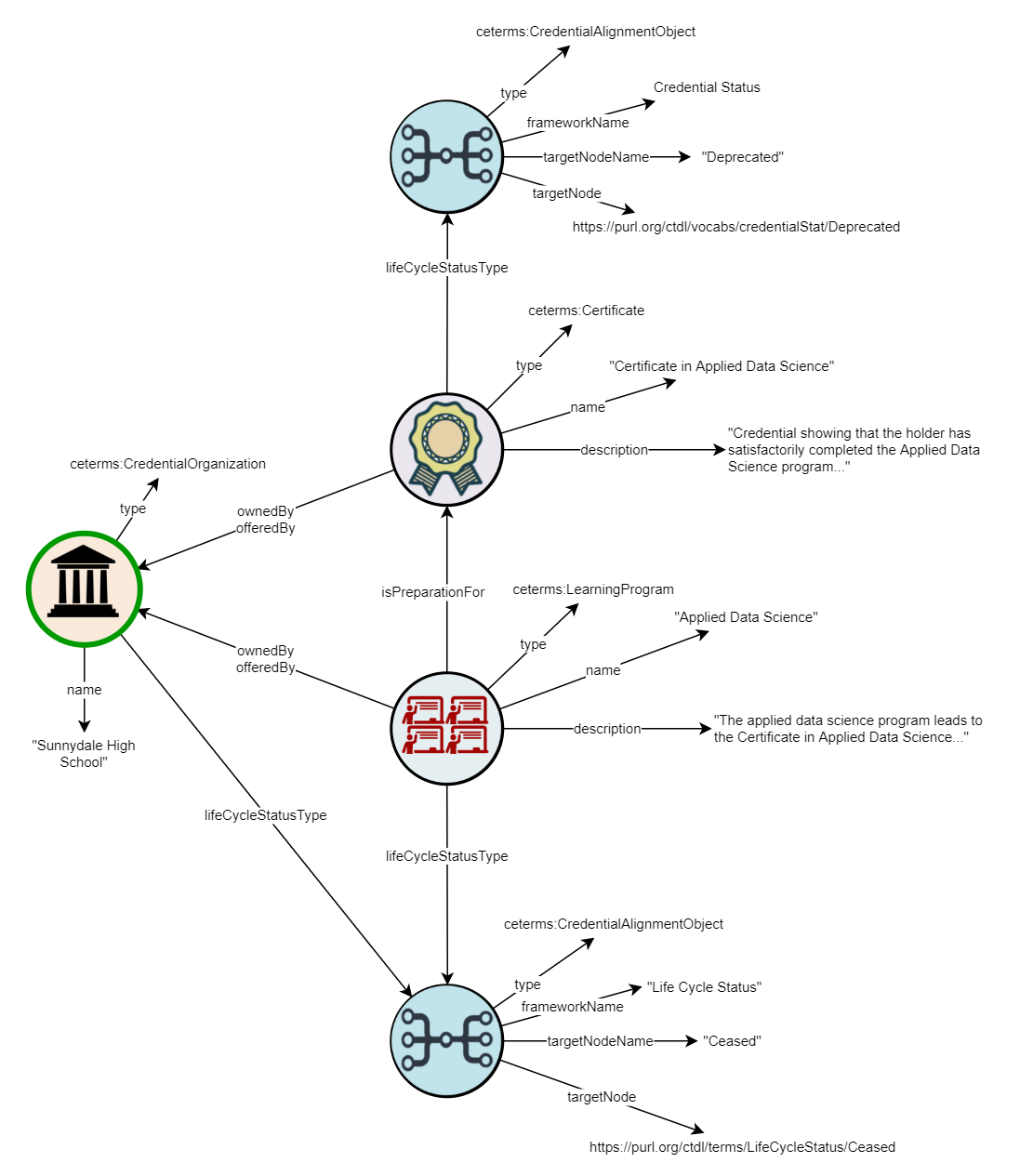

The current stage of credentials, learning opportunities, and organizations in their life cycle can be indicated using the lifeCycleStatusType property for learning opportunities and organizations or its sub-property credentialStatusType for credentials. These point via a CredentialAlignmentObject to terms from the LifeCycleStatus or CredentialStatus concept schemes that indicate where a resource is in its passage from being developed, being offered and finally withdrawn. The example below shows a certificate and associated learning program that have been permanently withdrawn, and which were offered by a credential organization that no longer operates (for simplicity, not all properties are shown in the diagram).

Figure

Life Cycle Status

Rubrics

Holistic Rubric

Holistic rubrics do not break the appraisal into separate criteria, instead they offer a set of benchmarks and levels for the appraisal as a whole. The CTDL Rubric classes can be used for Holistic Rubrics by treating them as applying a single "holistic" Criterion. The example below, which is based on one from the Cult of Pedagogy also illustrates that not every Rubric needs to have RubricLevels, being simply a selection of scores available for meeting various benchmarks.

Figure

Holistic Rubric

Reusing Criteria Levels and Pass/Fail criteria

Sometimes the specification of a level is the same for all criteria or even may be implicit in the criteria and the levels. This commonly arises when the rubric criteria are phrased in such a way that all that matters is whether the thing being appraised passes or not, or when the rubric levels are described in such a way that it is not necessary to provide specific details on how each criterion might relate to that level. In such a case all RubricCriterion objects can reference the same CriterionLevel objects (this is because the CriterionLevel objects record the possible values, not the actual values attained) and the labels used for the options can be recorded as the names of the RubricLevel objects. The diagram and data below shows an example where there is a choice between two RubricLevels indicating that the criterion has been met or not ("go" and "no go").

Figure

Reusing Criterion Levels

Classifying Criteria

It is sometimes useful to be able to classify RubricCriteria objects into notional groupings. These groupings may be used to display criteria that relate to a similar theme under headings for that theme, or the groupings may be important for analysis of the rubric but not affect the display at all. In order to achieve this a skos:ConceptScheme is created with the skos:Concepts containing the label and any descriptive information needed for the classification; the property ceasn:hasCriterionCategorySet is used on the Rubric object to indicate the concept scheme used to classify the criteria and the property ceasn:hasCriterionCategory is used on Criterion objects to indicate their classification. The example below shows how the criteria in the previous example are classified.

Figure

Classifying Criteria

Essay Evaluation Rubric

The example below shows a very straightforward, table-based Rubric and the way the CTDL data for it would be structured.

Essay Evaluation Rubric

The example below shows a Rubric with multiple Rubric Criterion that reference the same Criterion Levels.

References
